- 15 -- 15 -

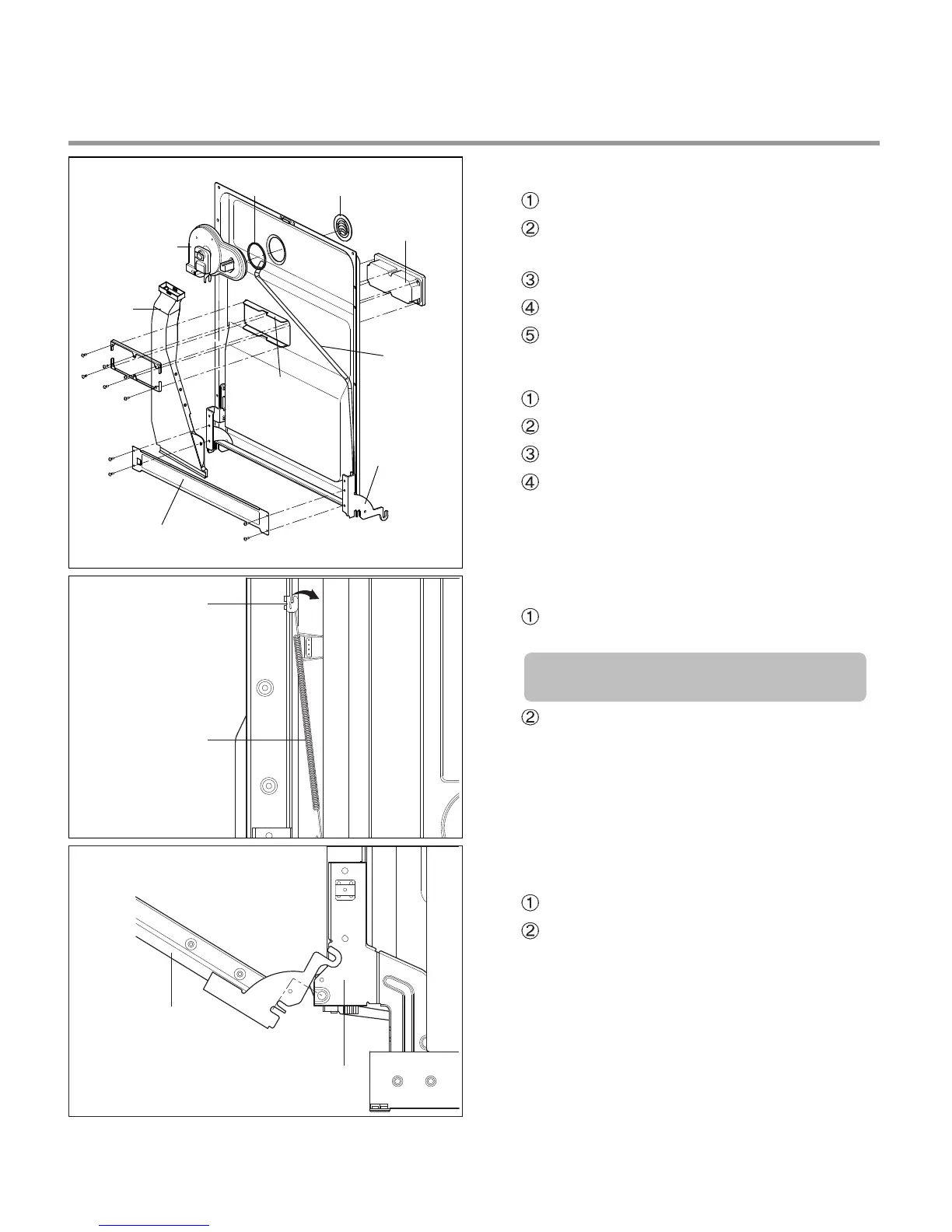

Fan Assembly
Inner CoverGasket
Flange
Hose
Detergent
Dispenser
Door Hinge
Air Duct
Door Bracket
Hinge Bracket
Hinge Spring
3) Fan Assembly
Open the door.
Remove 4 screws and a earth screw for
Door Bracket.
Remove the wire connetions.
Remove the Air Duct.
Turn the Inner Cover counterclockwise.
4) Detergent Dispenser
Close the door
Remove the wire connections.
Remove 6 screws with brackets.
Push the Detergent slowly pulling up the
the Flange by Standard Screwdriver.
5) Door Spring (Right & Left)
Push the Spring upwards and take it off
from the Hinge Bracket.
Be careful not to be injured by the
sharpedge of Tub.
Take off the Hinge Link from the Hinge.
6) Door Liner
Open the door.
Pull the Door Liner and take it off from
the Hinge Supporter.
Door Liner Assembly
Hinge Supporter
MFL37554808(S/M) 2009.2.5 8:54 AM ˘`15 ‰¯¿ł–•¡˙¨‰”
