- 19 -

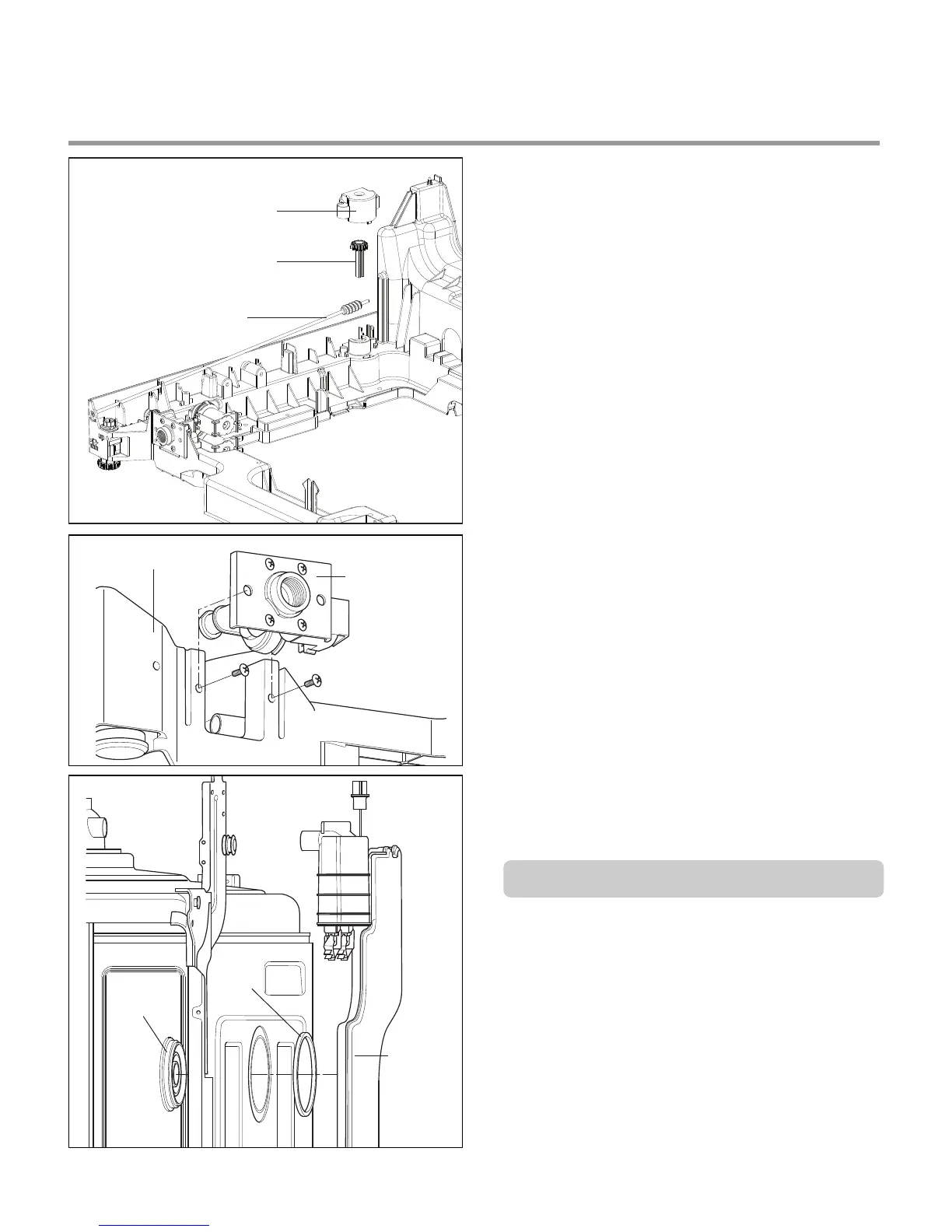

Inlet Valve
Cabinet Base
Air Braker
Nut
Gasket
Air Braker
Assembly
14. Inlet Valve
1) You can disassemble the lnlet Valve by
removing the 2 screws.
13. Rear Leg Adjustment System
1) Remove 2 screws.
2) Pull the Holder.
3) Pull the Leg Adjust.
4) Pull the Shaft Assembly.
15. Air Braker Assembly
1) Disconnect the 3 hoses assembly.
2) Turn the Air Braker Nut counterclockwise.
Be careful the o-ring should not be lost.
Holder
Leg Adjust
Shaft Assembly
MFL37554808(S/M) 2009.2.5 8:54 AM ˘`19 ‰¯¿ł–•¡˙¨‰”
