- 18 -- 18 -

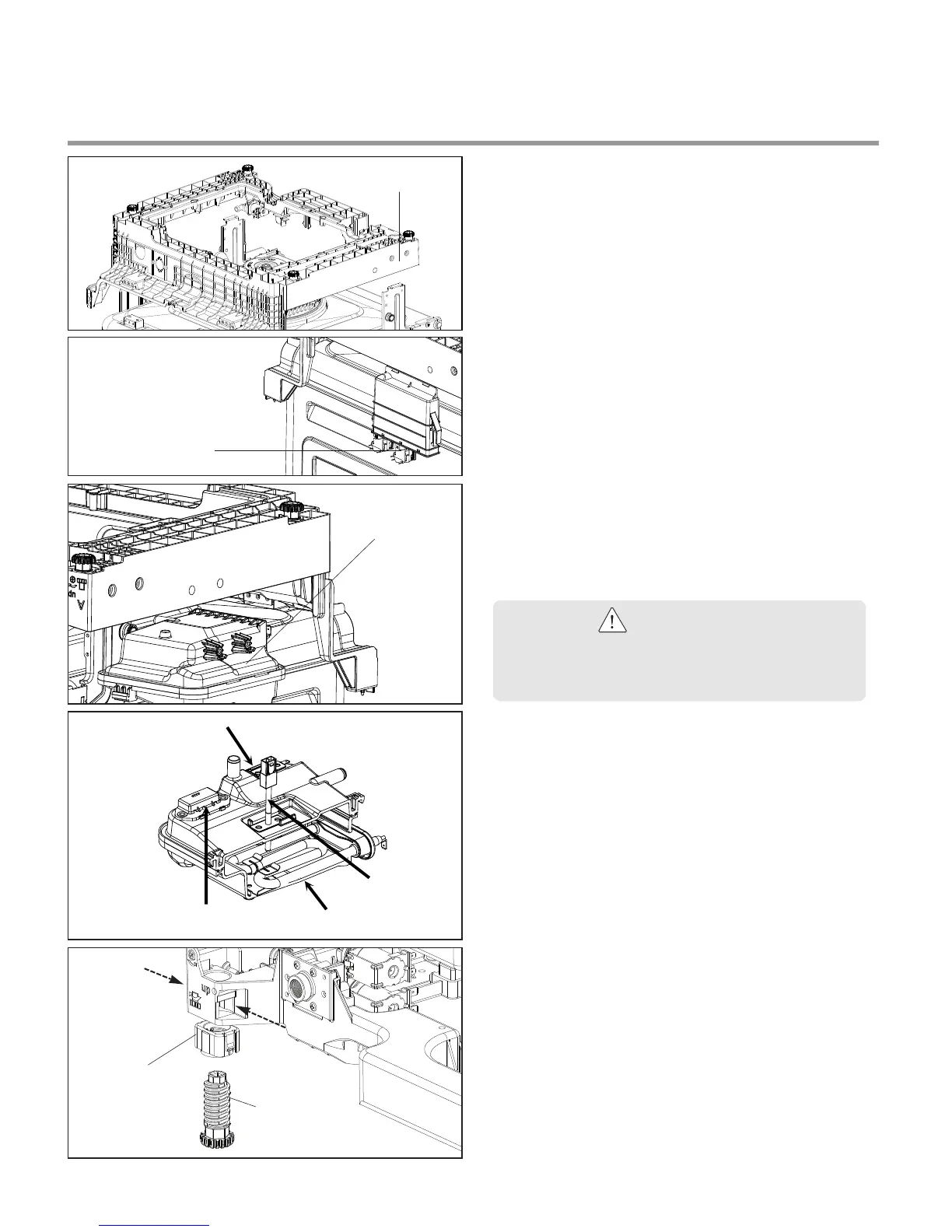

9. Cabinet Base

1) Remove 8 screws.

2) Lift it upward.

12. Foot & Nut

1) Pull the Foot twisting

2) Pull the Nut pushing the hook.

Cabinet Base

Float Assembly

WaterLevel

Sensor (High)

Thermistor

Heater

Water Level

Sensor (Low)

10. Float Assembly

1) Press the Float hook.

2) Pull the Float Assembly

11. Steam Generator

1) Disconnect the 3 hoses assembly.

2) You can disassemble the Steam generator

by removing the 2 screws.

Steam

Generator

Nut

Foot

CAUTION

Be cautious in case of the generator is hot

temperature.
