Step 6: DRAIN LINE CONNECTION
1. If the end of the drain hose does not fit to the drain line, use an adapter (not supplied) that
must be resistant to heat and detergent and may be obtained from a plumbing shop.
2. There are 2 typical connections as shown in Figures C & D.
There may be other options than shown here for connection the drain hose. The drain
connection must meet local plumbing regulations.
The S trap spigot must be drilled out cleanly and free of obstruction to its maximum
internal diameter, if used for drainage.
To prevent syphoning, one of the following instruction methods must be followed:
Follow local codes and ordinances.
Do not exceed 10 ft. (3m) distance
to drain.
Do not connect drain lines from
other devices to the dishwasher
drain hose.
Drain Requirements

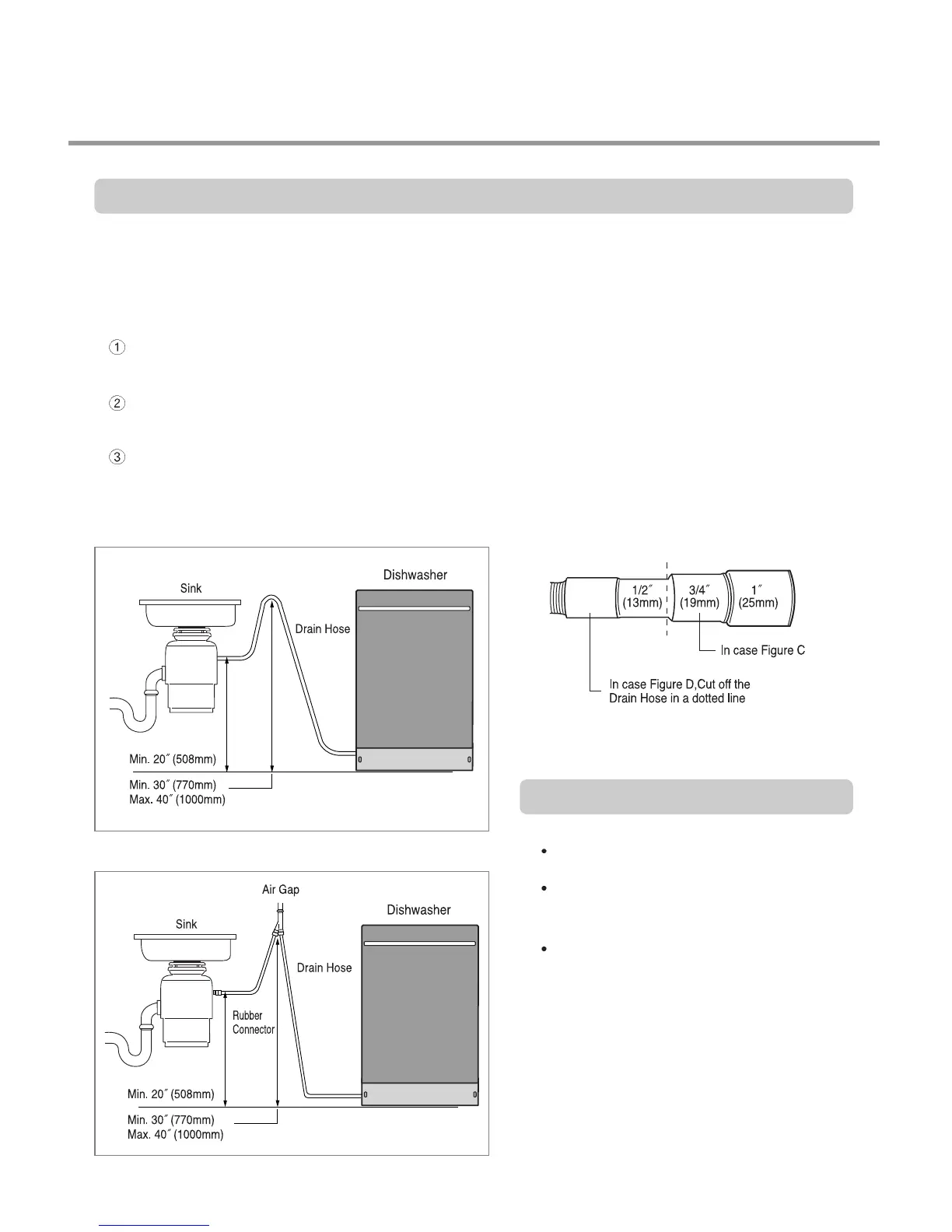

Figure C:
Connection to Disposer or waste Tee.
Figure D:
Connection to Air Gap.
