- 20 -- 20 -

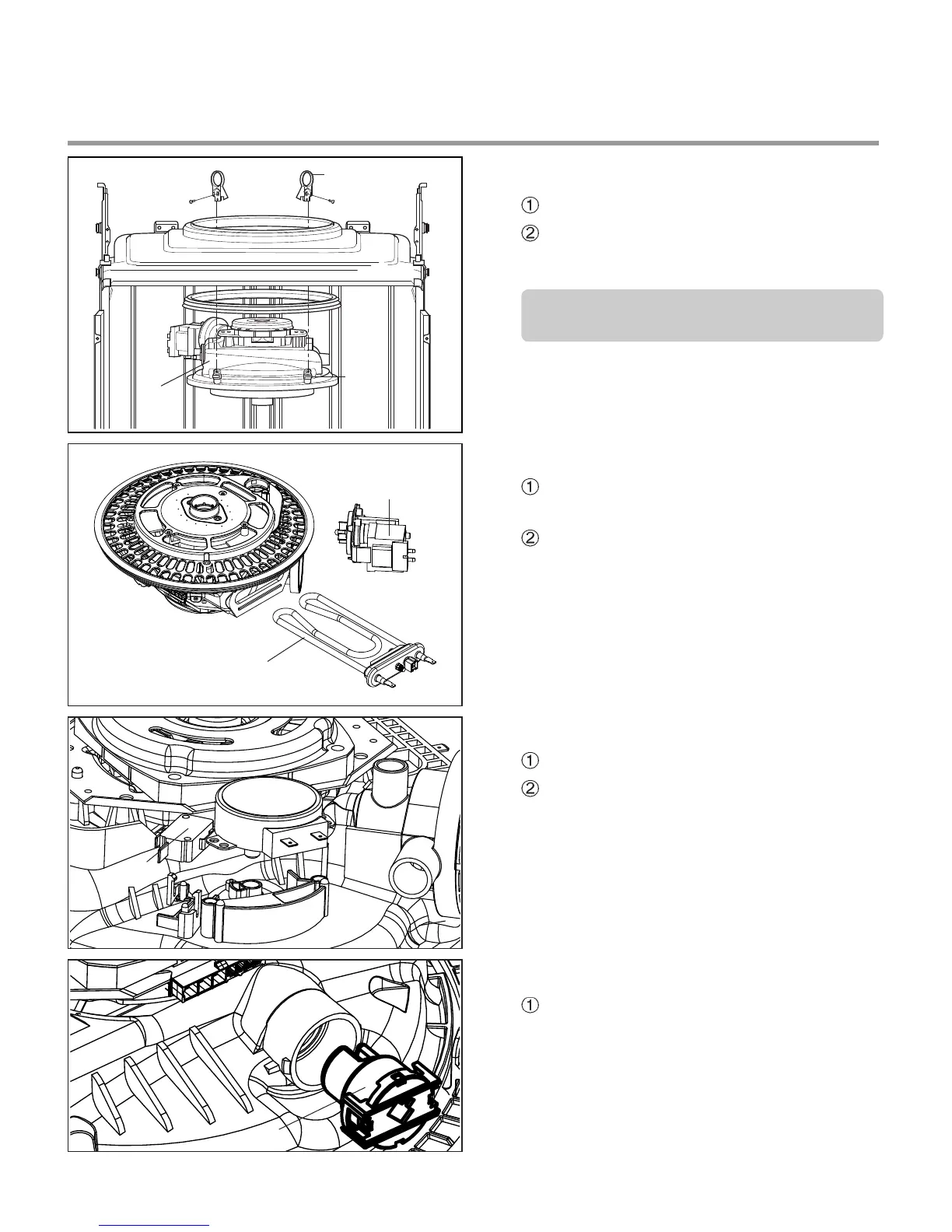

Sump Holder

Hook

Sump

Assembly

1) Heater & Drain Motor

Pull the Heater out of the Sump after

releasing the nut.

Remove 3 screws.

2) Vario Motor

Remove 2 screws for Vario Motor.

Pull the Vario Motor and Micro S/W.

3) Soil Sensor

Pull the Soil Sensor.

16. Sump Assembly

Remove 2 screws.

Remove the Sump Holder and push the

Sump Assembly down with pulling aside

Hook.

Be careful not to drop the Sump

Assembly to the bottom.

Drain Pump

Heater

Vario Motor

Micro

S/W

Soil

Sensor
