INSTALLATION INSTRUCTIONS

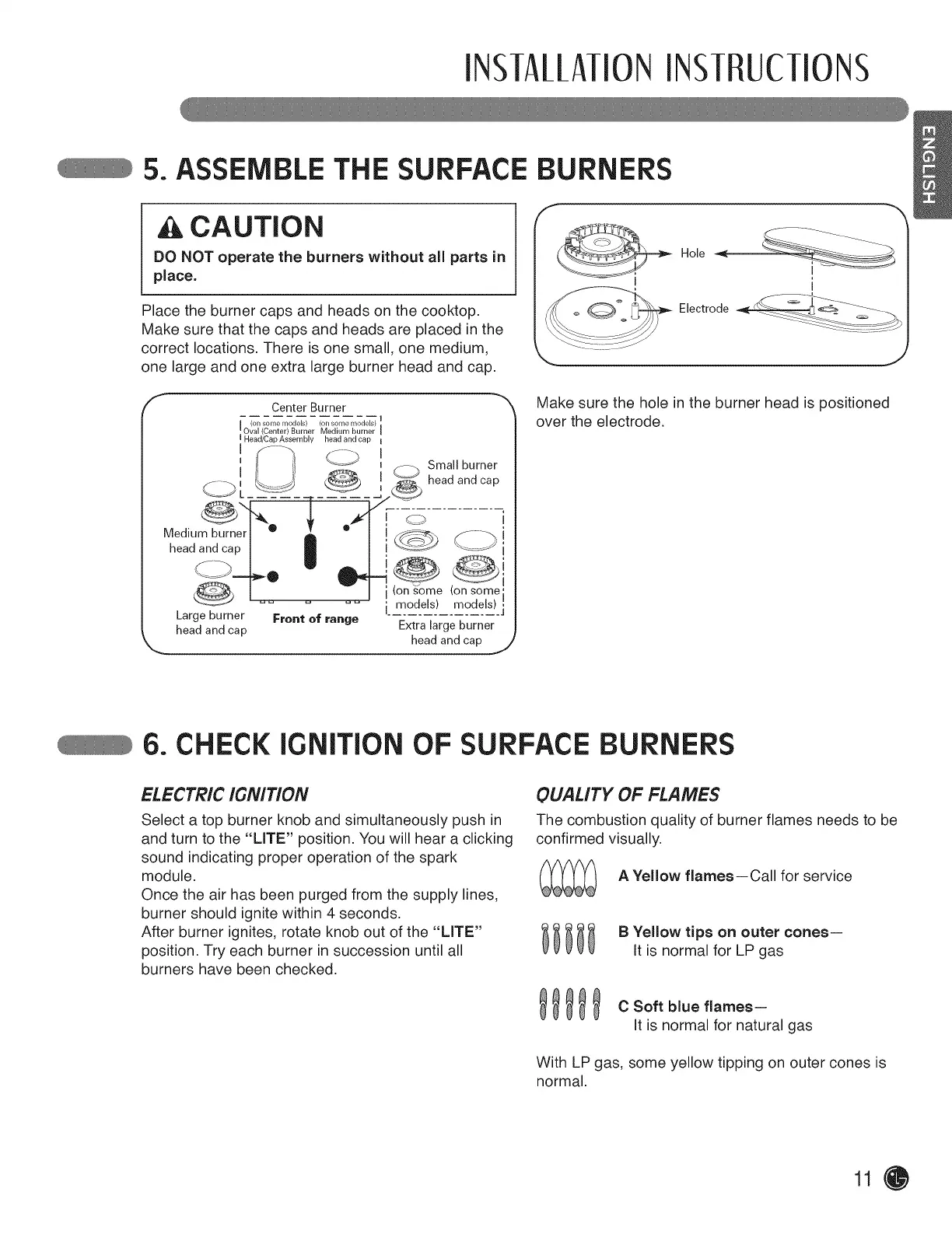

5. ASSEMBLE THE SURFACE BURNERS
4& CAUTION
DO NOT operate the burners without all parts in
place.
Place the burner caps and heads on the cooktop.
Make sure that the caps and heads are placed in the
correct locations. There is one small, one medium,
one large and one extra large burner head and cap.
(— Center Burner >
[. fon some r models) ~ fon some models) |
Oval {Center} Burner Medium burner |
'HeadiCap Assembly head andcap 4
Small burner
head and cap
Medium burner
head and cap
>
crcr or cor
Large burner Front of range
Extra large burner
head and cap /
LL head and cap
Hole
Electrode
Make sure the hole in the burner head is positioned
over the electrode.
6. CHECK IGNITION OF SURFACE BURNERS
ELECTRIC IGNITION
Select a top burner knob and simultaneously push in
and turn to the “LITE” position. You will hear a clicking
sound indicating proper operation of the spark
module.
Once the air has been purged from the supply lines,
burner should ignite within 4 seconds.
After burner ignites, rotate knob out of the “LITE”
position. Try each burner in succession uniil all
burners have been checked.
QUALITY OF FLAMES
The combustion quality of burner flames needs to be
confirmed visually.
(\ A Yellow flames — Call for service
j j | B Yellow tips on outer cones—
itis normal for LP gas
i
! i f C Soft blue flames —
it is normal for natural gas
With LP gas, some yellow tipping on outer cones is
normal.
