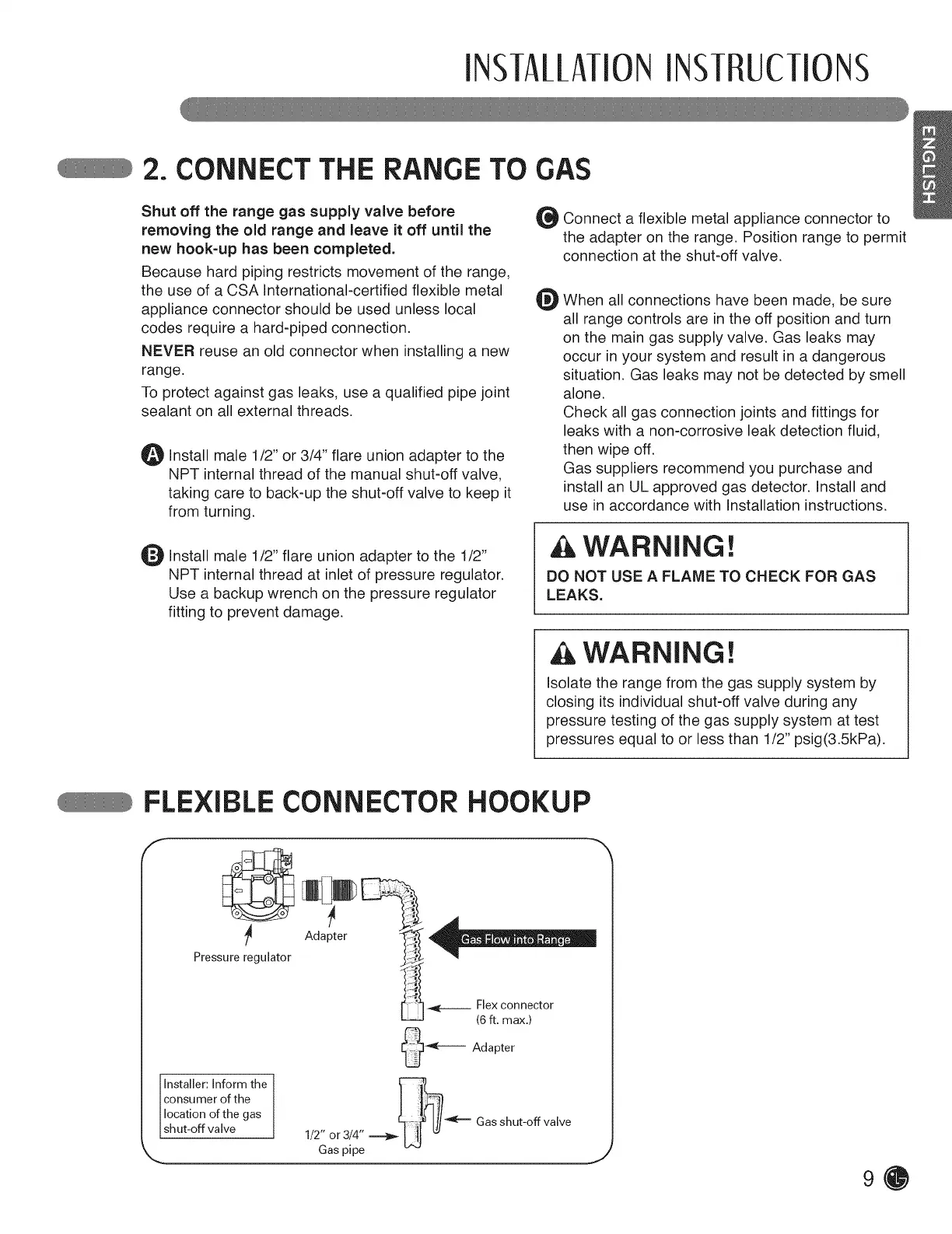

LG LDG3019ST Installation Manual

INSTALLATION INSTRUCTIONS
2. CONNECT THE RANGE TO GAS
Shut off ine Sol gas supply valve perore h @ Connect a flexible metal appliance connector to
removing t ms d range and vetee Ht off until the the adapter on the range. Position range to permit
new hook-up has been completed. connection at the shut-off valve.
Because hard piping restricts movement of the range,
the use of a CSA International-certified flexible metal
appliance connector should be used unless local
codes require a hard-piped connection.
® When all connections have been made, be sure
all range controls are in the off position and turn
on the main gas supply valve. Gas leaks may
NEVER reuse an old connector when installing a new occur in your system and result in a dangerous
range. situation. Gas leaks may not be detected by smell
To protect against gas leaks, use a qualified pipe joint alone.
sealant on all external threads. Check all gas connection joints and fittings for
leaks with a non-corrosive leak detection fluid,
@ Install male 1/2” or 3/4” flare union adapter to the then wipe off.
Gas suppliers recommend you purchase and
install an UL approved gas detector. install and
use in accordance with Installation instructions.
NPT internal thread of the manual shut-off valve,
taking care to back-up the shut-off valve to keep it
from turning.
@ install male 1/2” flare union adapter to the 1/2” A WARNING |
NPT internal thread at inlet of pressure regulator. DO NOT USE A FLAME TO CHECK FOR GAS
Use a backup wrench on the pressure regulator LEAKS.
fitting to prevent damage.
4& WARNING!
isolate the range from the gas supply system by
closing its individual shut-off valve during any
pressure testing of the gas supply system at test
pressures equal to or less than 1/2” psig(38.5kPa).
FLEXIBLE CONNECTOR HOOKUP
~\
Gas Flow into Range
2
| wg. Flex connector
Adapter
Pressure regulator
(6 ft. max.)
<— Adapter
Installer: Inform the
consumer of the
location of the gas < Gas shut-off valve
shut-off valve 4/2" or 3/4"
LS Gas pipe _/
