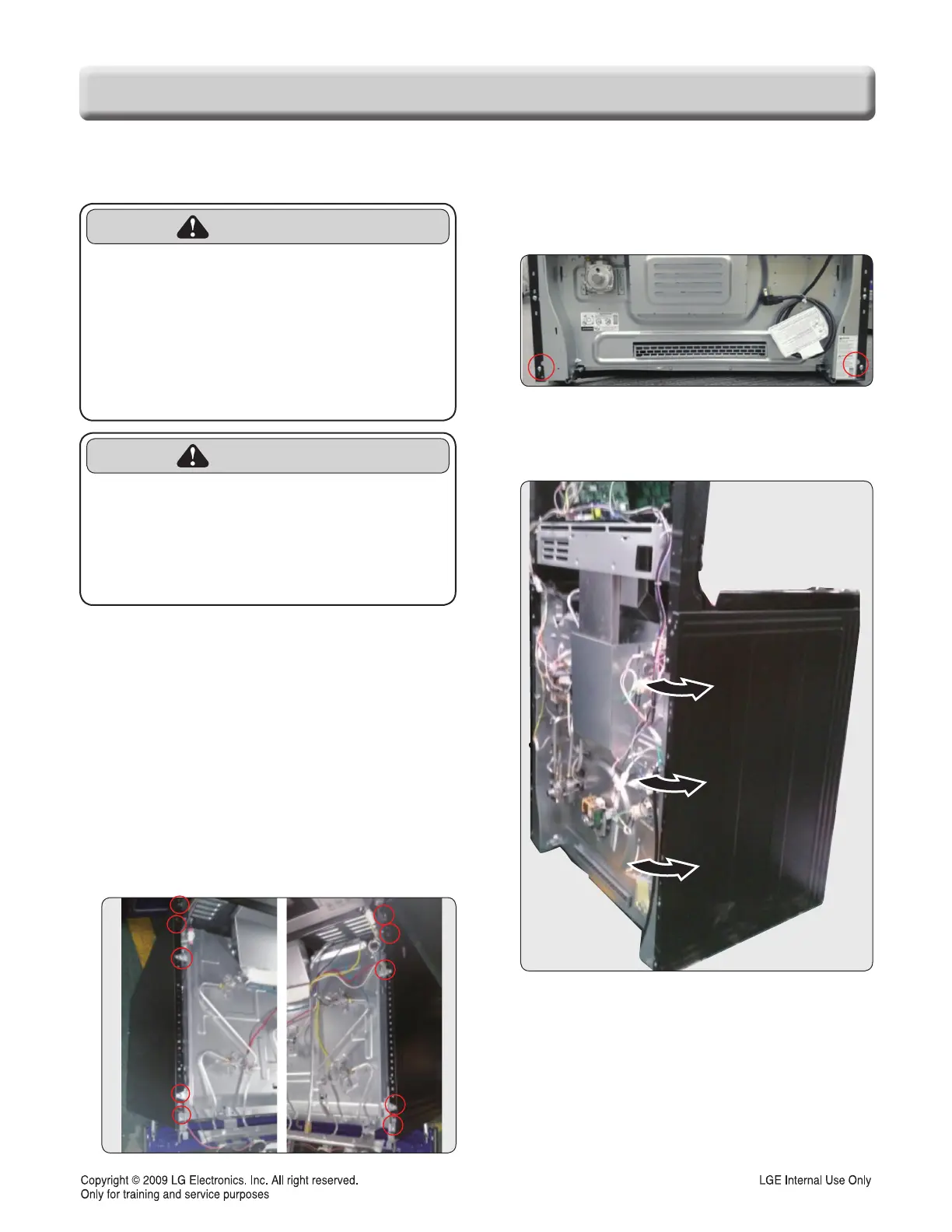

REMOVING A SIDE PANEL
7. Remove 2 screws from each Side Panel.
8. Pull the back of the side panel out from the range
approximately 10
˚
.
9. Push forward and remove the side panel.
1. Turn off the electrical supply and gas supply
going to the range.
2. Remove the upper & lower oven door from the
range (see pages 3-19, 3-20 for the procedure).
3. Pull the range away from the wall so you can
access the back of the unit.
4. Remove the rear back cover, and motor cover
(see step 4~5 on page 3-2)
5. Remove the cooktop plate (see the page 3-5 for
the procedure).
6. Remove 10 screws from the top rear of the side
panel.
WARNING
• DISCONNECT power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electric shock.
CAUTION
• Use caution when handling sheet
metal parts while servicing the
range.
- Some parts may have sharp edges, which
could result in injury.
3-27
COMPONENT ACCESS
