5-2
CONVERSION TO LP GAS
BURNER OUTPUT RATINGS; BURNER
BTU RATE ORIFICE CODE
LF
LR
RR
RF
CTR
BROIL
BAKE(UPPER)
BAKE(LOWER)
10,000 Q
9,100 M
5,000 W
12,500 G
10,000 Q
12,500 F
12,500 F
12,000 G
LP(Propane) Gas. 10" W.C.P
BURNER
MODEL
[LDG4315 / LDG4313]
M
Q
Q
W
G
LR
LF
RR
RF
CTR
Q
F
Top and Lover bake
Upper broil and bake
burner orifices
LDG4315 / LDG431
WARNING
• Turn off the electrical supply and
gas supply going to the range.
• Replace all panels and parts before
operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electric shock.
CAUTION
• Use caution when handling sheet
metal parts while servicing the
range.
- Some parts may have sharp edges, which
could result in injury.

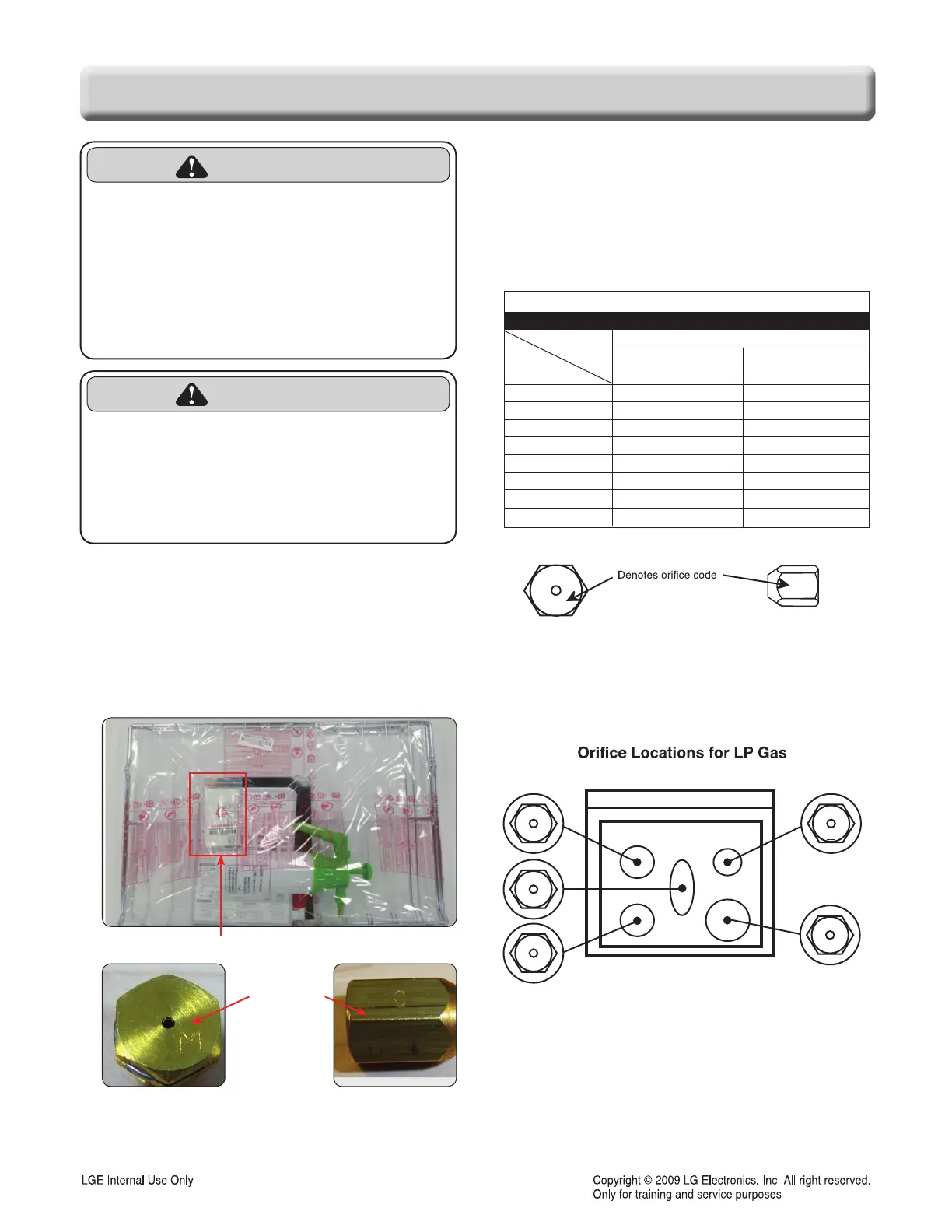

4. CONVERTING THE SURFACE BURNERS
take conversion kit out of the accessory
assembly.(see illustration the below)
LP orifice spuds have a orifice code on the top or
the side, denoting the location on the range
where it is to be installed.
Conversion Kit
Denotes
orifice
code
Top and Broil
burner orifices
Bake burner
orifices
1) Remove grates, bumer caps and bumer heads.
2) Remove the brass orifice spud in the chimney of
each bumer using a 13/32” or 10 mm nut driver.
3) Install the Lp orifice spuds into their correct
positions as described previously.
• LP (Propane) Gas Orifice Specifications
• LP (Propane) Gas Orifice Specifications
