LG LDG4313ST Service Manual

2-1
USING YOUR RANGE
Rating Label
Model numbers are recorded on the rating label.
Rating label is located on the Back side of
Controller. Before ordering parts, write down the
correct model and serial number from rating label.
This avoids incorrect shipments and delays. Please
refer to parts reference material when ordering
replacement parts.
Functional Operation
Bake Mode (For both the Upper & Lower oven)
Bake burner operates during bake mode. Bake can
be used to cook foods which are normally baked.
Oven must be preheated.
Upper Oven
Lower Oven
Convection Bake / Roast Mode(For the Lower
oven only)
Convection bake should be used for cooking
casseroles and roasting meats. Oven should be
preheated for best results when using convection
bake. The convection cooking modes automatically
reduce the oven temperature by 25 °F (14 °C).
The display shows the changed temperature.
• This feature is called auto conversion.
• The range comes with this feature enabled.
• The oven fan runs while convection baking.
If the door is left open for longer than 30 seconds
during baking, the fan stops.
Broil Mode(For the Upper oven only)
Broil burner operates during broil mode. Broil can
be used to cook foods which are normally broiled.
Preheating is not required when using broil. All
foods should be turned at least once except fish,
which does not need to be turned.
Cooking Guide
Refer to the Owner’s manual for recommendations
of times and temperatures. Times, rack position,
and temperatures may vary depending on
conditions and food type. For best results, always
check food at minimum time. When roasting,
choose rack position based on size of food item.
GENERAL INFORMA
GENERAL INFORMA
TION
TION

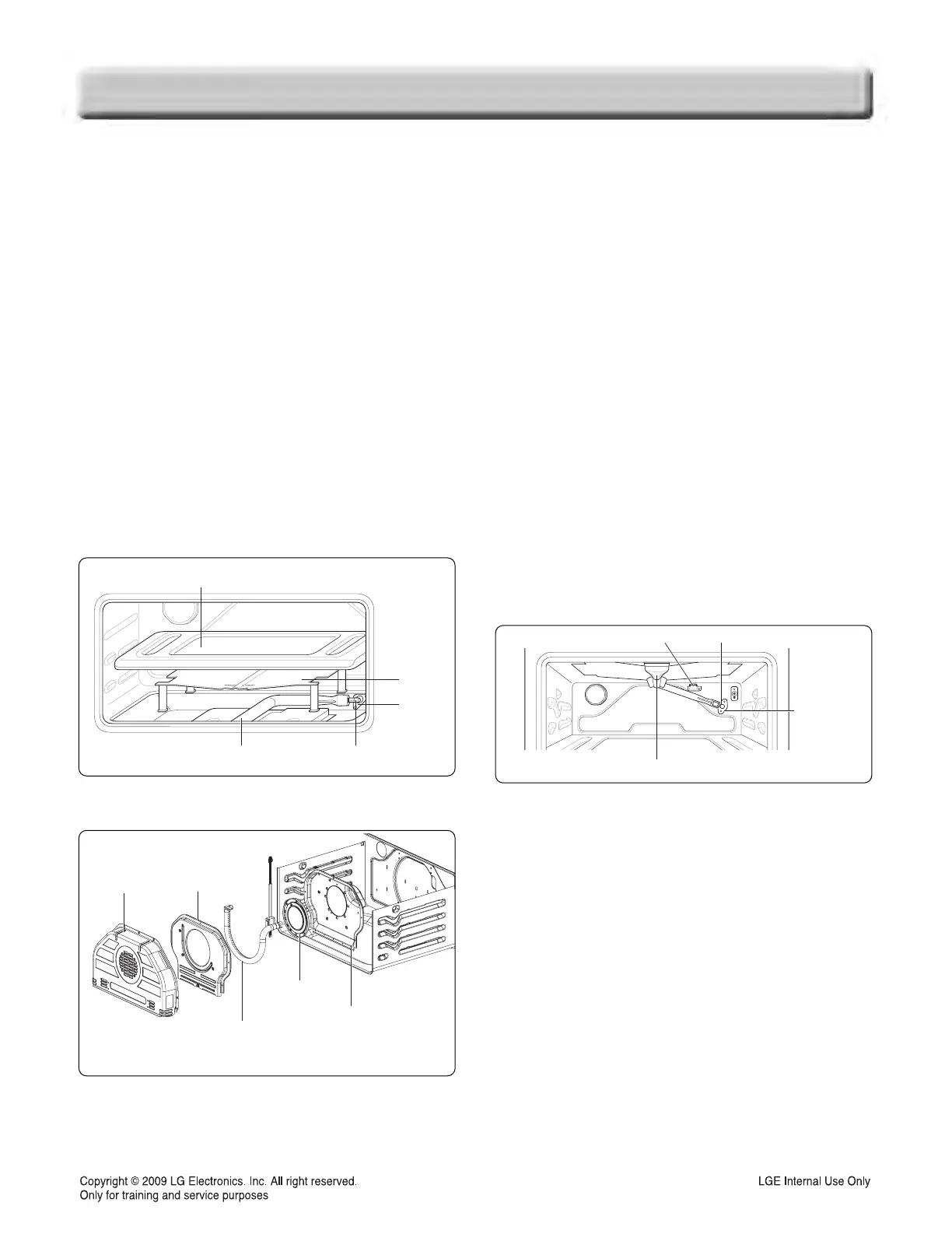

OVEN BOTTOM
BAKE BURNER ASSEMBLY ORIFICE (NOZZLE)
FLAME
GUIDE
NOZZLE
HOLDER
BURNER
ASSEMBLY
FAN CASE
BURNER
CASE(U)
BURNER CASE(L)
STABILIZER
BROIL BURNER ASSEMBLY
NOZZLE
HOLDER
WIRE COVER ORIFICE (NOZZLE)

LG LDG4313ST Specifications

General

Style	freestanding
Color	stainless steel
Total Capacity	6.9 cu. ft.
Main Capacity	4.3 cu. ft.
Extra Capacity	2.6 cu. ft.
Options	glass touch
Cooking Programs	bake, convection bake, convection roast, multi-rack convection baking, delay bake, delay clean, proof, warm, pizza
Temperature Probe	no
Ignition	electronic
Convection	yes
Grill	no
Induction	no
Number of Burners	5
Number of Racks	3
Control Type	front tilt-control knobs; glass touch; knobs; touch sensor
Interior Light	yes
Fuel	natural gas; gas
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	28 15/16 inch
Height	47 5/16 inch; 47 5/16"; 14 1/4"; 9 1/4"
Width	29 7/8 inch
