LG LDG4313ST Service Manual

2-2
USING YOUR RANGE
CONTROL P
CONTROL P
ANEL FEA
ANEL FEA
TURES
TURES
1
2
3
4 5 6
Display
7 8
2019
18
141312
15
1716
23
2221
24
11109

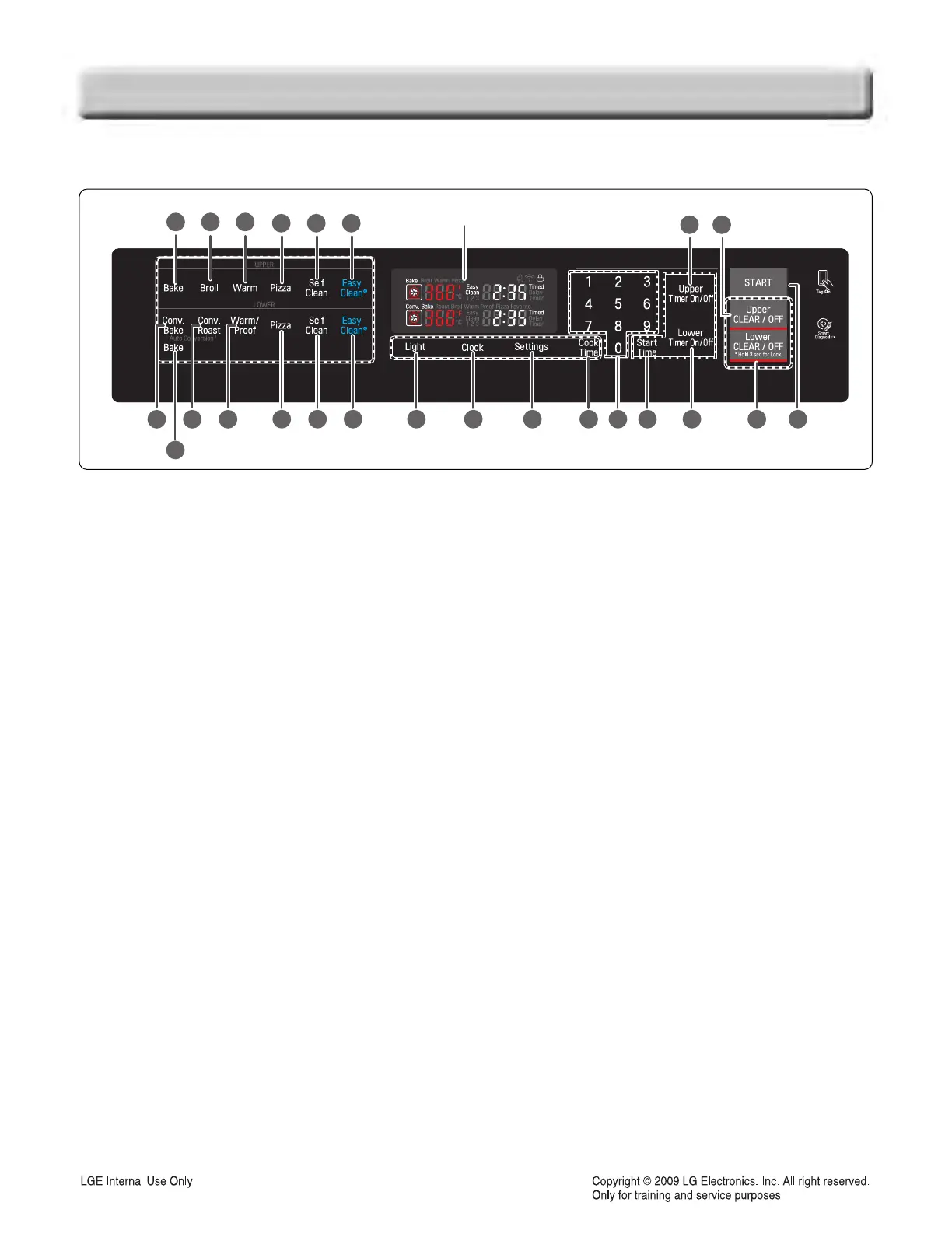

Upper oven
1. BAKE: Use to select the Bake function of the upper
oven.
2. BROIL: Use to select the Speed Broil function of the
upper oven.
3. WARM: Use to select the Warm function of the upper
oven.
4. PIZZA: Use to select the Pizza function of the upper
oven.
5. UPPER SELF CLEAN: Use to select the Self Clean of
the upper oven.
6. UPPER EASY CLEAN: Use to select the Easy Clean
of the upper oven.
7. UPPER TIMER ON/OFF: Use to set or cancel the timer
of the upper oven.
8. UPPER CLEAR OFF: Use to stop cooking, cancel
settings of the upper oven.
Lower oven
9. CONV.BAKE: Use to select the Conv. Bake function of the
lower oven.
10. CONV.ROAST: Use to select the Conv. Roast
function of the lower oven.
11. WARM/PROOF: Use to select the Warm/Proof
function of the lower oven.
12. PIZZA: Use to select the Pizza function of the lower
oven.
13. LOWER SELF CLEAN: Use to select the Self Clean
of the lower oven.
14. LOWER EASY CLEAN: Use to select the Easy
Clean of the lower oven
15. BAKE: Use to select the Bake function of the lower
oven.
16. LOWER TIMER ON/OFF: Use to set or cancel the
timer of the lower oven.
17. LOWER CLEAR OFF: Use to stop cooking, cancel
settings of the lower oven.
To activate LOCKOUT press and hold for 3 seconds.
Common function
18. LIGHT: Use to turn the Oven lights of the oven on
and off.
19. CLOCK: Use to set the time of day.
20. SETTINGS: Use to change the oven settings
21. COOK TIME: Use to set the length of the cook time.
(Bake, Conv. Conv.Roast only)
22. NUMER PADS: Use to enter a temperature and all
times.
23. START TIME: Use to set delay time. (Bake, Conv.
Conv.Roast, Self clean only)
24. START: Use to START all functions in the oven.

LG LDG4313ST Specifications

General

Style	freestanding
Color	stainless steel
Total Capacity	6.9 cu. ft.
Main Capacity	4.3 cu. ft.
Extra Capacity	2.6 cu. ft.
Options	glass touch
Cooking Programs	bake, convection bake, convection roast, multi-rack convection baking, delay bake, delay clean, proof, warm, pizza
Temperature Probe	no
Ignition	electronic
Convection	yes
Grill	no
Induction	no
Number of Burners	5
Number of Racks	3
Control Type	front tilt-control knobs; glass touch; knobs; touch sensor
Interior Light	yes
Fuel	natural gas; gas
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	28 15/16 inch
Height	47 5/16 inch; 47 5/16"; 14 1/4"; 9 1/4"
Width	29 7/8 inch
