Sump Holder

Hook

Sump

Assembly

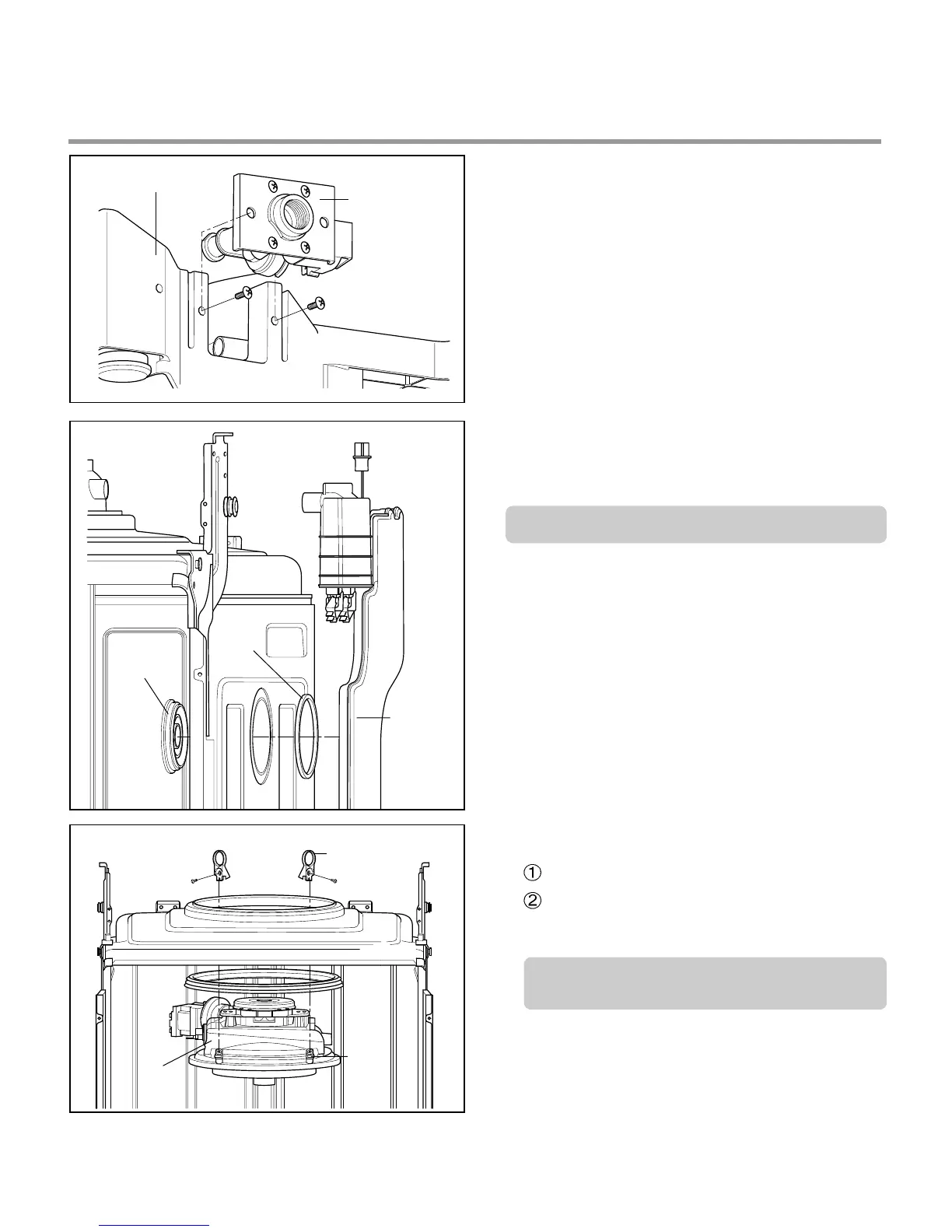

14. Sump Assembly

Remove 2 screws.

Remove the Sump Holder and push the

Sump Assembly down with pulling aside

Hook.

Be careful not to drop the Sump

Assembly to the bottom.

Inlet Valve

Cabinet Base

Air Braker

Nut

Gasket

Air Braker

Assembly

12. Inlet Valve

1) You can disassemble the lnlet Valve by

removing the 2 screws.

13. Air Braker Assembly

1) Disconnect the 3 hoses assembly.

2) Turn the Air Braker Nut counterclockwise.

Be careful the o-ring should not be lost.

Brand

Model

LDS4821
