PARTS AND FEATURES
6
PARTS
PARTS AND FEATURES

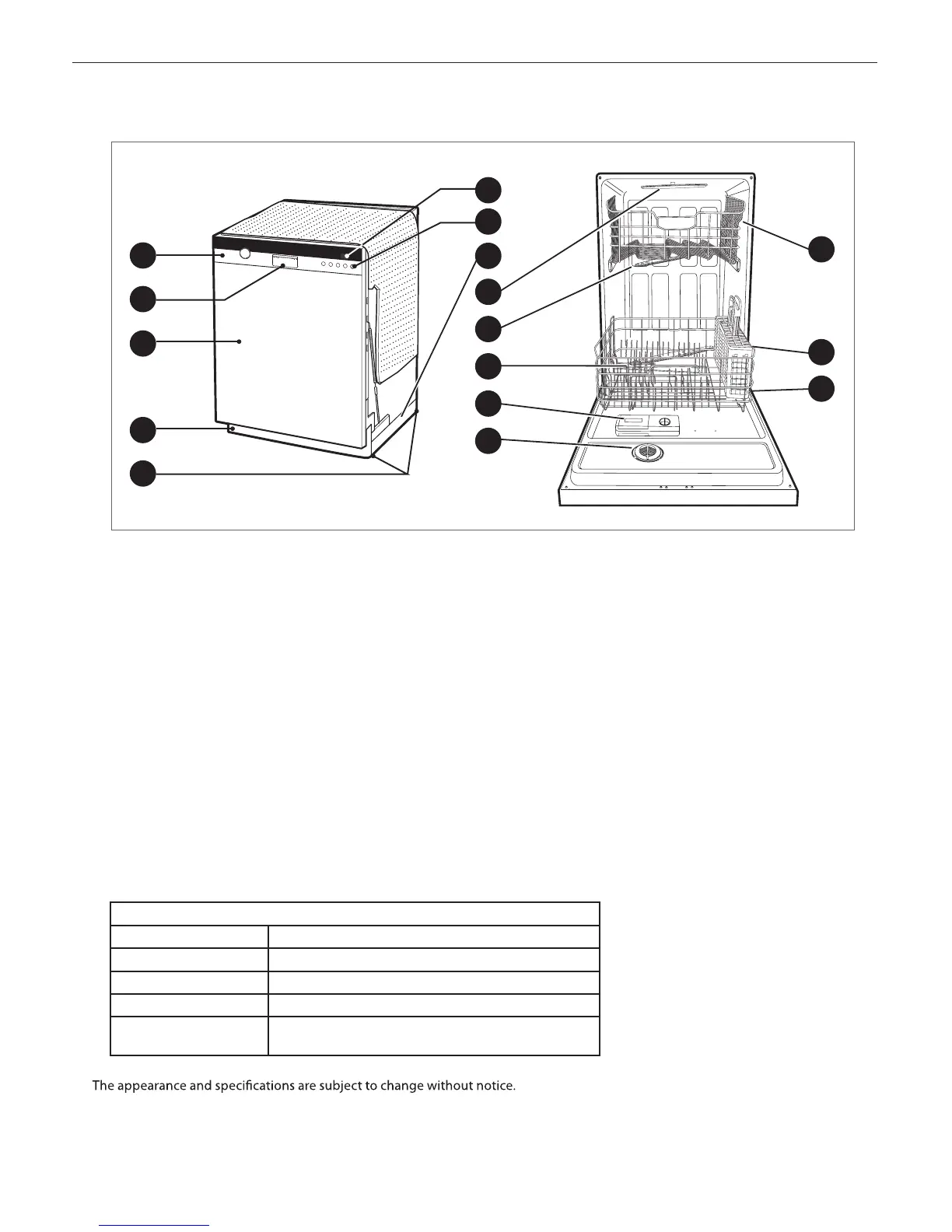

1. CONTROL PANEL
2. DOOR HANDLE
3. FRONT COVER
4. LOWER COVER
5. LEVELING FEET
6. DISPLAY WINDOW
7. POWER BUTTON
8. BASE
9. TOP SPRAY ARM
10. UPPER SPRAY ARM
11. LOWER SPRAY ARM
12. DETERGENT AND RINSE AID DISPENSER
13. DRYING VENT COVER
14. UPPER RACK
15. SILVERWARE BASKET
16. LOWER RACK
1
2
5
6
3
4
8
7
11
9
10
14
15
16
13
12
SPECIFICATIONS
Model: LDS5540ST/WW/BB, LDS5560ST/WW/BB
Power Supply
Water Pressure 20–120 psi (140–830 kPa)
Size (WxDxH)23 3/4" x 24 5/8"x 33 1/2" (603 mm x 625 mm x 851 mm)
Inlet Water Temperature
Product Weight
120 V, 60 Hz AC only, minimum 15 A circuit breaker
120 °F (49 °C) minimum
LDS5540 : 90.8 lbs. (41.2 kg)
LDS5560 : 97.8 lbs. (44.4 kg)

LG LDS5540ST Specifications

General

Style	built-in dishwashers
Color	stainless steel
Noise level	48 decibels
Control Type	led display with touchscreen controls
Delay Start	yes
Child Lock	yes
Number of Racks	2
Cycle Signal	no
Water Filter	yes
Food Disposer	yes
Sanitize Settings	yes
Annual Energy Consumption	279 kilowatt hours
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24.63 inches
