Precautions
• Depending on the camera and other equipment there are various ways to connect the
unit. Please refer to the camera manual or manuals for other devices as necessary for
additional connection information.
• Be sure to switch off the camera before installation and connection.

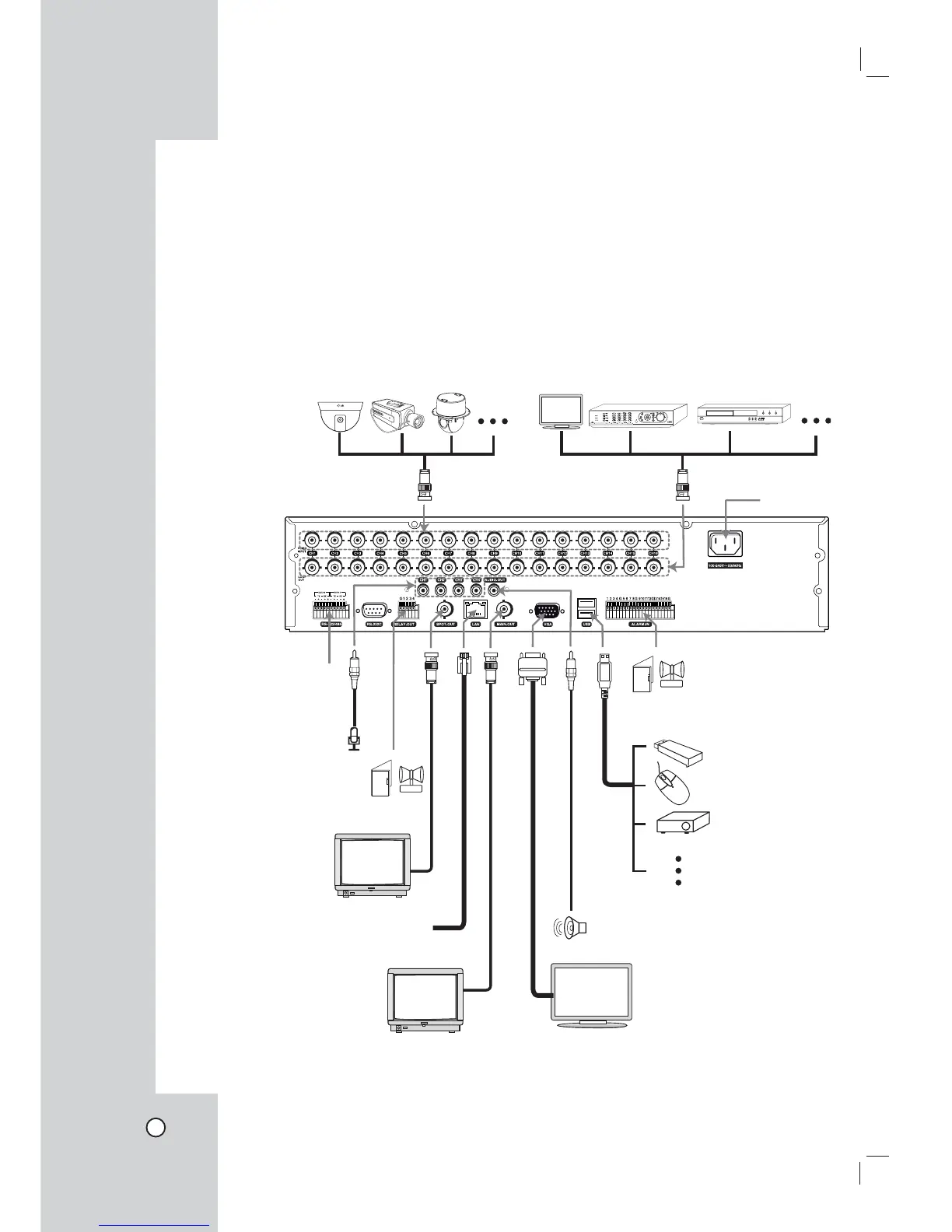

Basic Connection Overview
HOOKUP AND SETTINGS
Connect the coaxial-type cameras
For audio amplifier
Connect audio
(line input)
Connect
power code
Connect PTZ cameras,
DVRs or keypads
(optional).
Connect mouse for
use with this operating
system or USB device
for backup, copy or
others.
Connect
BNC type
spot monitor.
Connect network cable
for client control.
Connect VGA monitor.
(Default output)
Connect the Monitor, DVR, VCR, or others.
Connect
BNC type
monitor.
Connect alarm sensors.
Connect the alarm (relay)
