LG LFC21776ST Service Manual

3. DISASSEMBLY
- 5 -

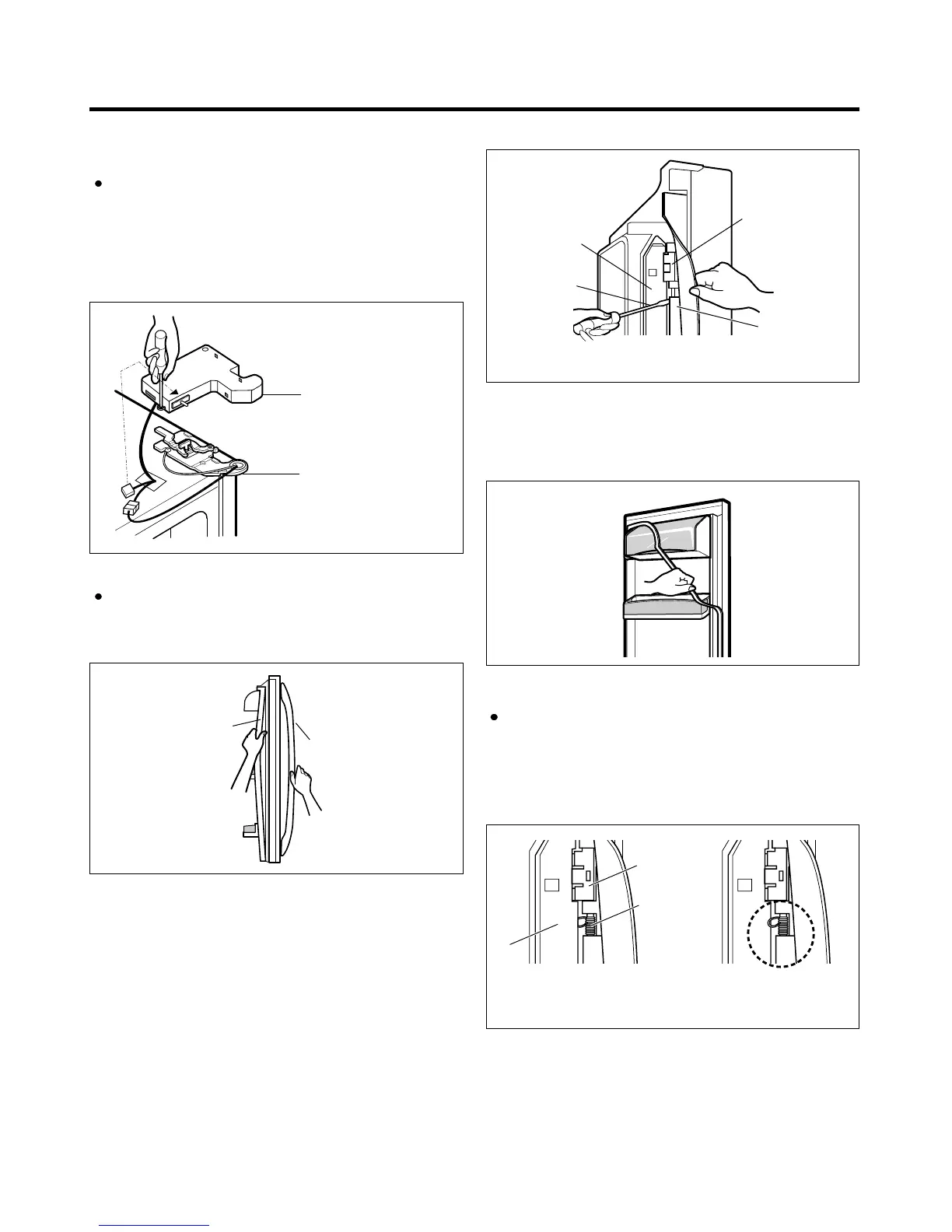

3-1 DOOR
Refrigerator door
1. Remove the top hinge cover and disconnect the wire
harness.
2. Remove the ground screw.
3. Rotate the lever hinge and lift off hinge.
4. Lift off the refrigerator door.
5. Replace in the reverse order.
Door gasket replacement
1. Insert gasket bracket clips
1) Insert gasket bracket edge beneath door frame edge.
2) Turn upper gasket bracket spring so that both spring
ends are in the door channel.
3) Push in clip until you hear it snap securely into place.
4) Push in remaining two clips until you hear each snap
securely into place.
Note : Make sure that no part of gasket bracket edge
protrudes from beneath door frame edge.
2. Remove gasket bracket clips
There are two clips on each door. Start bracket removal
near one of the middle clips.
1)Pull gasket back to expose gasket bracket clip and
door frame.
2)Insert a flat tip screwdriver into seam between gasket
bracket and door frame and pry back until clips snaps
out.
3)Continue prying back along seam until all clips snap
out.
3. Remove gasket
Pull gasket free from gasket channel on the three
remaining sides of door.
Figure 2
Frame Cover
Handle
Figure 5
Correct Incorrect
Figure 3
Gasket
Bracket Clip
Gasket
Bracket
Flat Tip
Screwdriver
Figure 4
Spring
Gasket
Bracket Clip
Figure 1
HINGE COVER
HINGE
Door gasket removal
1. Remove door frame cover
Starting at top of cover and working down, snap cover
out and away from door.
Door
Frame
Door
Frame

LG LFC21776ST Specifications

General

Type	freestanding
Style	french door
Color	stainless steel
Refrigerator Capacity	20.7 cubic feet
Freezer Capacity	6 cubic feet
Humidity Controlled Crispers	yes
Defrost System	manual
Quick Freeze	no
Number of Refrigerator Door Bins	yes
Temperature Control	digital
Interior Light	led
Ice Maker	yes
Water Filter	no
Door Alarm	yes
Smart Home	no
Annual Energy Consumption	400 kilowatt hours
Voltage	120 volts

Weight and Dimensions

Depth	30 inches
Height	69.75 inches
Width	35.75 inches
Net Weight	278 pounds
