16 INSTALLATION
Removing/Assembling
Handles
• When moving the refrigerator through a narrow
opening, removing the doors is preferred.
• The appearance of the handles may vary from what
is shown.
WARNING
When assembling or disassembling the
refrigerator handles:
• Grasp the handle firmly to avoid dropping it.
• Do not swing the handle into nearby people or
animals.
• Make sure that the bracket hole of the handle
fits properly into the stopper bolt of the door.
Assemble the set screws to fix the handle into
place.
• Make sure that there is not a gap between the
door and handle after assembling the handle.
Tools Needed
3/32 in. Allen wrench
1/8 in. Allen wrench
1/4 in. Allen wrench

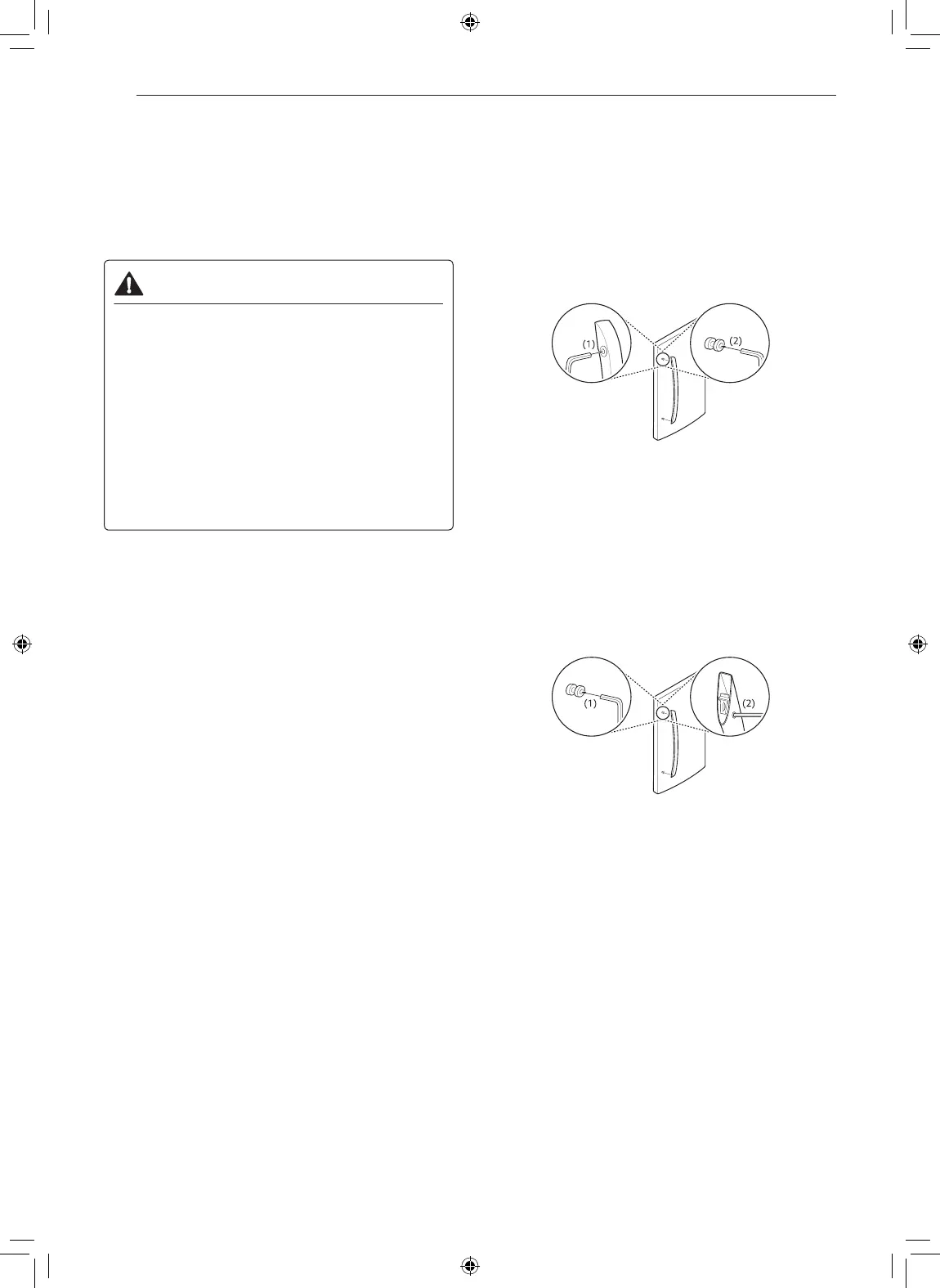

Removing the Refrigerator Handles
1
Loosen the set screws (1) with a 3/32 in. Allen
wrench and remove the handle.
2
Loosen the mounting fasteners (2) that connect
to the refrigerator door and handle using a 1/4
in. Allen wrench, and remove the mounting
fasteners.
Assembling the Refrigerator Handles
1
Assemble the mounting fasteners (1) at both ends
of the handle with a 1/4 in. Allen wrench.
2
Place the handle on the door by fitting the handle
footprints over the mounting fasteners and
tightening the set screws (2) with a 3/32 in. Allen
wrench.
