REFRIGERATOR CIRCUITS

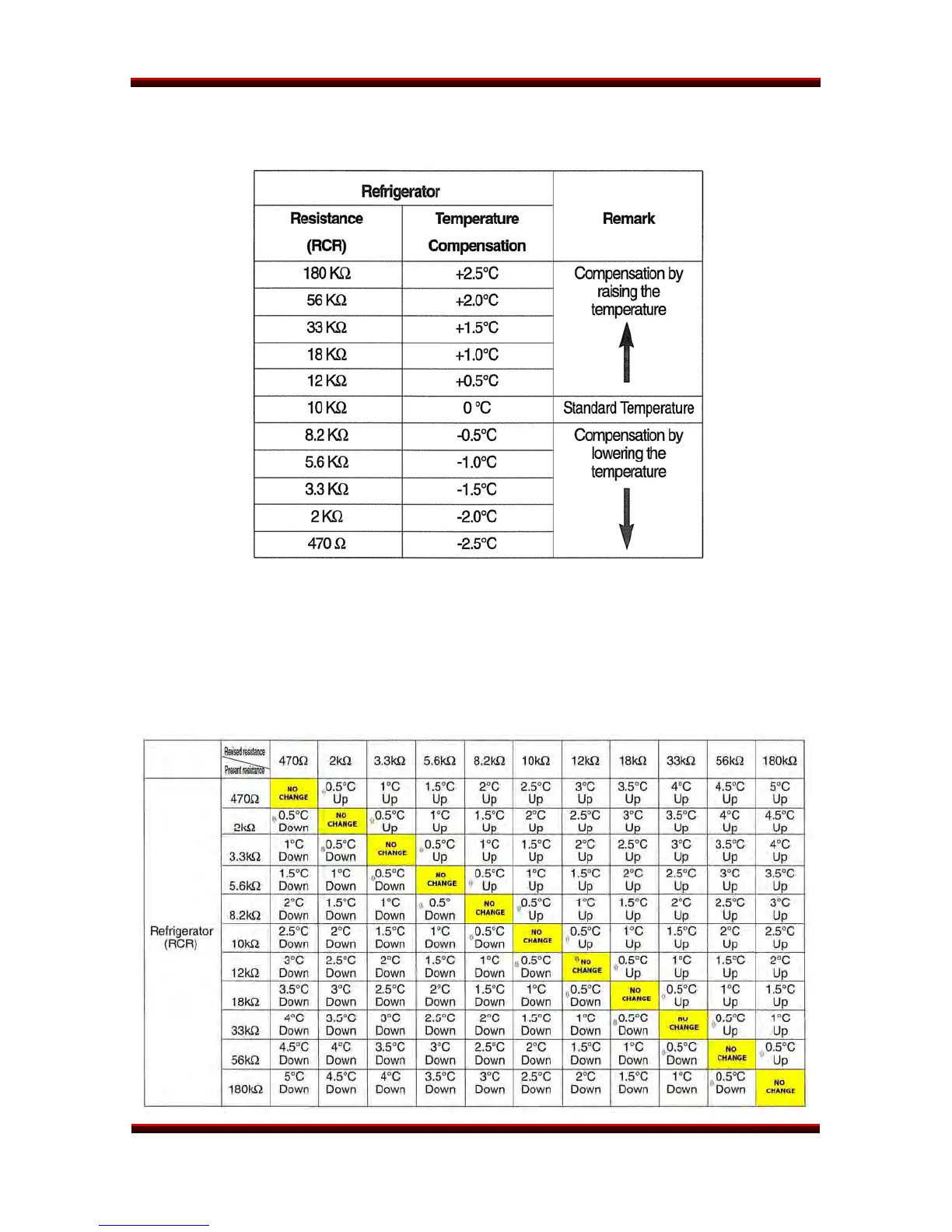

TEMPERATURE COMPENSATION TABLE
This chart shows the Table of Temperature Compensation. If the temperature
reading is not accurate, you can change the value of the RCR (Refrigerator
Compensation Resistor) to compensate for the difference from the current
temperature. For example, if the RCR is changed from 10K (the current
resistance) to 18K (the adjusted resistance), the temperature of the refrigerator
rises from 32° F (0° C) to 33.8° F (+1° C).
LFX21960ST/LFX25960xx Page 54 of 75 TRAINING MANUAL
