- 41 -

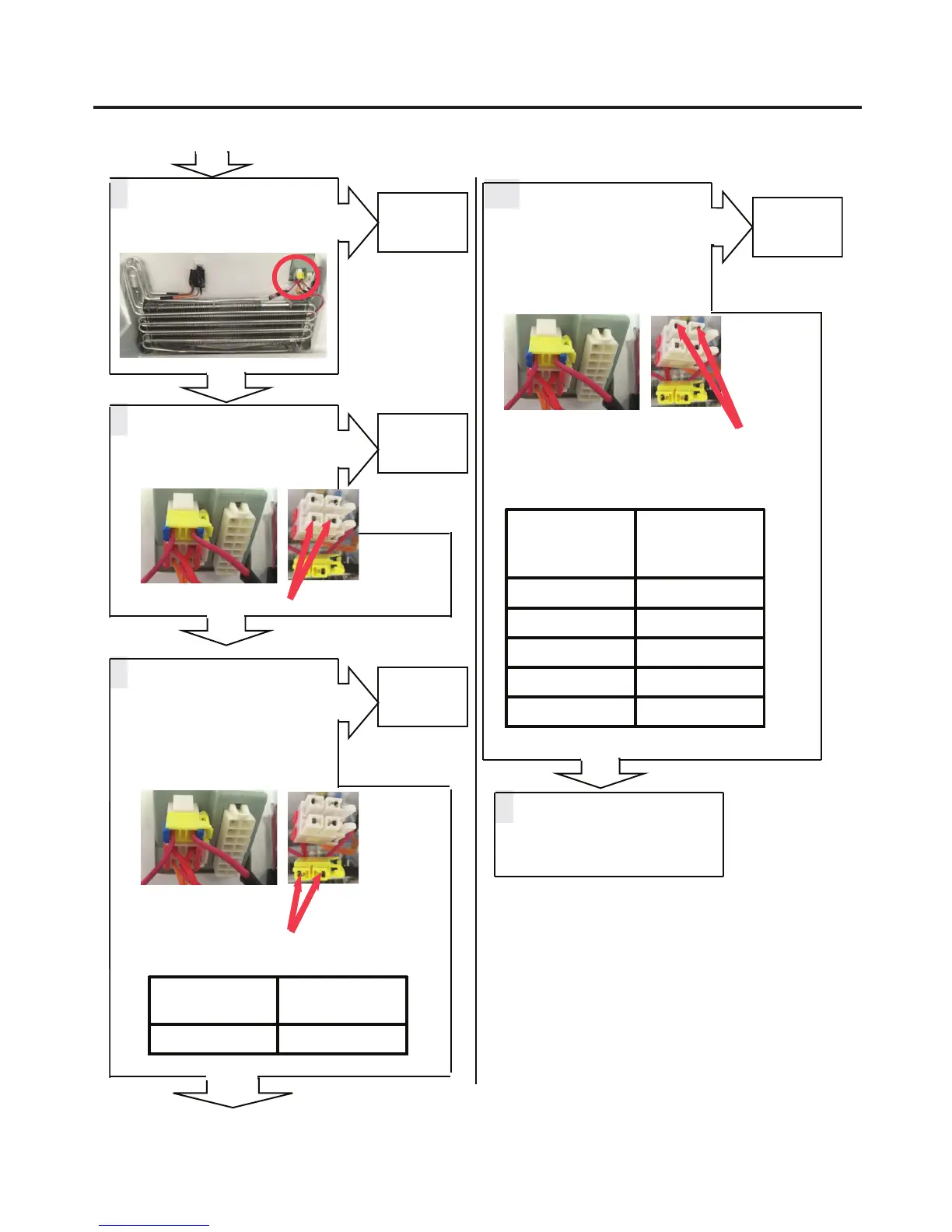

7
Reconnect
Is the Connector Properly
connected?
No
Yes
8
Is the resistance value of Fuse-M
less than 0.2Ω?
No
Yes
Change Fuse-M
9
Is the resistance value of Heater
as follow?
No
Yes
Replace
Heater
10
Is the resistance value of defrost
sensor as
follow?
Resistance is influenced by temperature.
Yes
Replace
Defrost
Sensor
No
11
Explain to customer
Measurement PointResistance [Ω]
(1) 105~117
CON7
19
th
pin ~ 20
th
pin
Resistance [Ω]
23ºF / -5ºC 38k
32ºF / 0ºC 30k
41ºF / 5ºC 24k
50ºF / 10ºC 19.5k
59ºF / 15ºC 16k
Fuse -M
Heater
Sensor
