3. TROUBLE SHOOTING
- 124 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

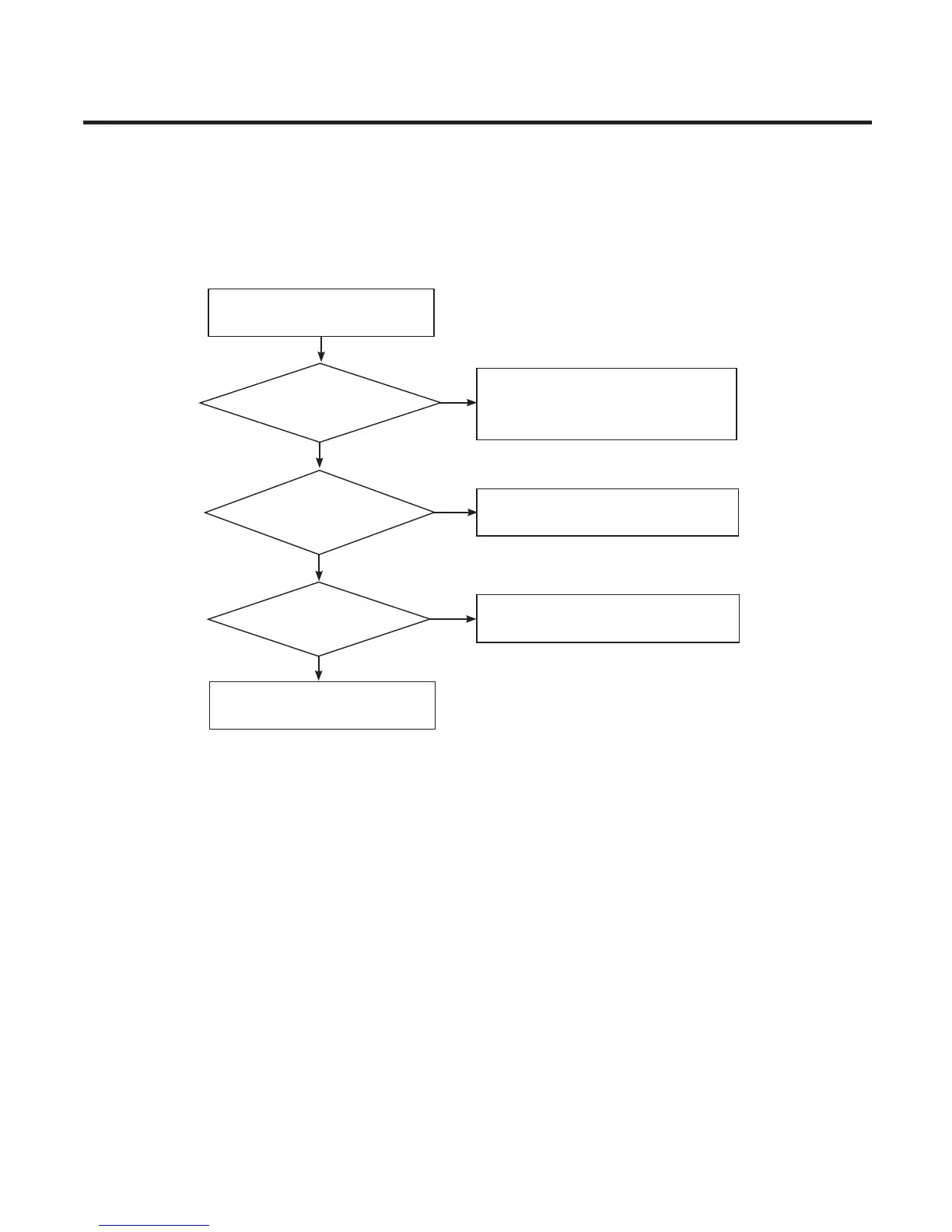

3.6.3 Checking GPS
START
Check the connection
between Antenna & C-Clip
1. Replace antenna on battery cover,
or, C-Clip on PCB.
2. Remove the foreign substance in ANT2003
No
Yes
Yes
Check WTR1605L
Yes
Check TP1
C2073, C2074 = 2.7V
Check TP2
19.2MHz Clock exist?
The problem may be refer to PMIC block,
Check PM8941.
Check 19.2MHz XTAL. (X6000)
No
No
To Next Page
