LG lg-d821 - Checking Rf Tx Level

3. TROUBLE SHOOTING
- 44 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
BOT TOP
3.5.1 Checking XO (19.2MHz) Block
Refer to 3.3
3.5.2 Checking the FL1018/ U1000
Refer to 3.4
3.5.3 Checking RF TX Level
<ACPM-7600 PAM>
3.5.3.1 WCDMA, LTE B1

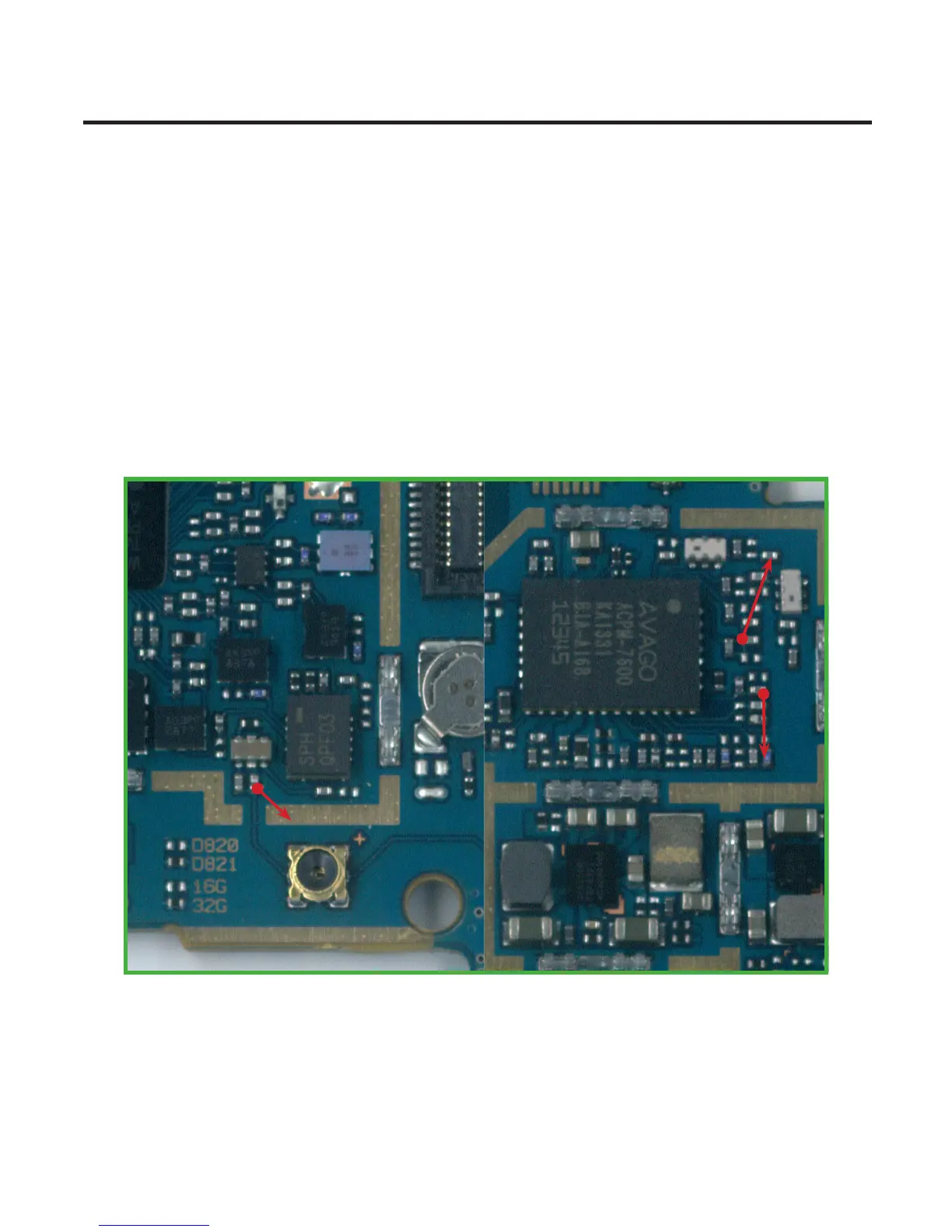

TP1
TP3
TP2
