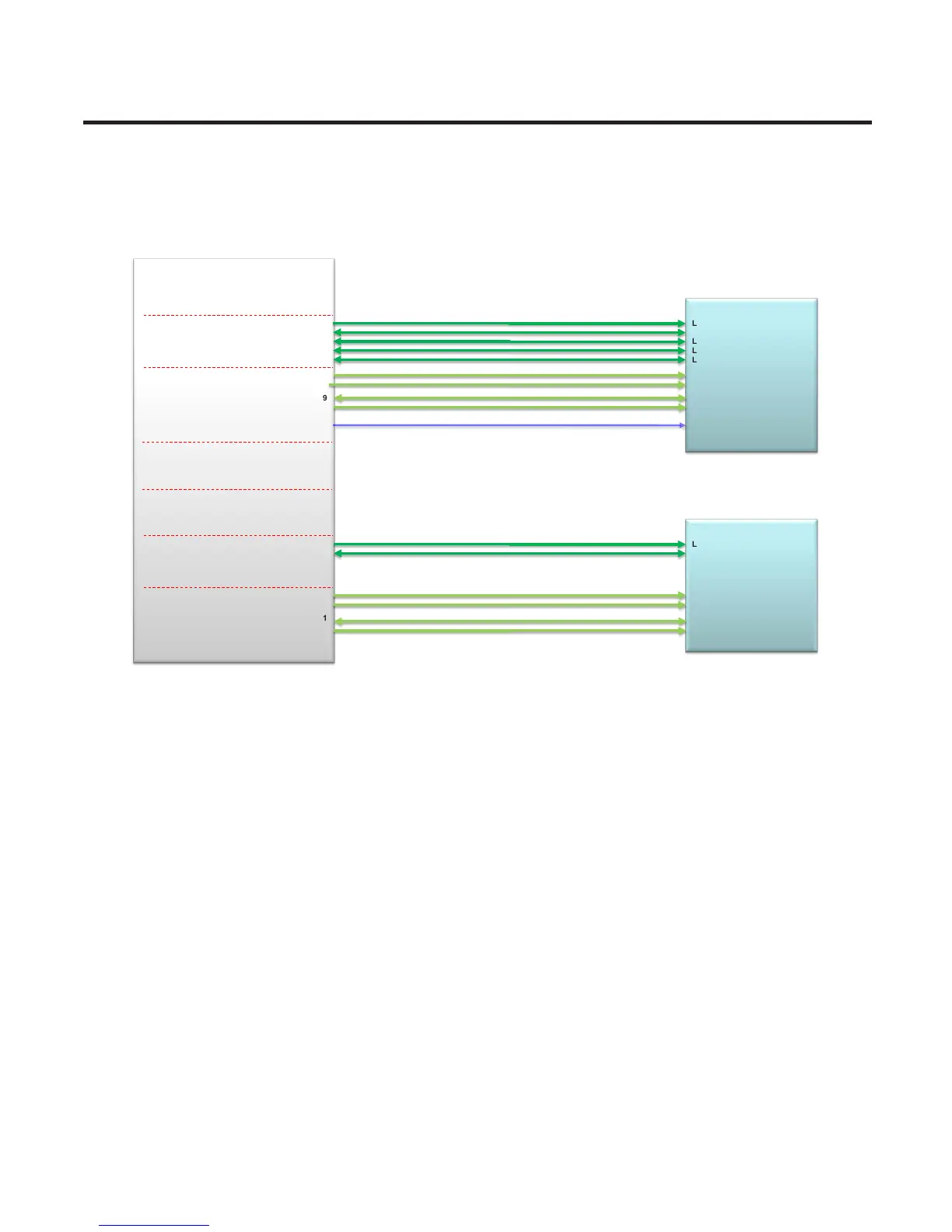

[D821] Camera I/F
12. Camera I/F
Main Chipset (MSM8974)
MIPI_CSI0_LN1_P / N
8MP Camera
CLK_P / CLK_M
MIPI_CSI0_LN0_P / N
LANE0_P / LANE0_M
MIPI_CSI0
MIP_CSI1
MIPI_CSI0_LN2_P / N
LANE1_P / LANE1_M
MIPI_CSI0_LN3_P / N
LANE2_P / LANE2_M
MIPI_CSI0_LN4_P / N
LANE3_P / LANE3_M
LN0_P / LN0_N
CLK_P / CLK_N
LN1_P / LN1_N
LN2_P / LN2_N
LN3_P / LN3_N
MIPI_CSI2_LN1_P / N
1.3MP Camera
MIPI_CSI2_LN0_P / N
LANE0_P / LANE0_M
MIPI_CSI2
MIPI_CSI2_LN2_P / N
MIPI_CSI2_LN3_P / N
MCLK
GPIO_15
MCLK
GPIO_17
RESET_N
GPIO_18
RESET_N
GPIO_4
SDA
GPIO_19
SCL
GPIO_20
SDA
GPIO_21
SCL
GPIO_22
MIPI_CSI2_LN4_P / N
CLK_P / CLK_M
OIS_RESET
GPIO_29
