3. TROUBLE SHOOTING
- 35 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

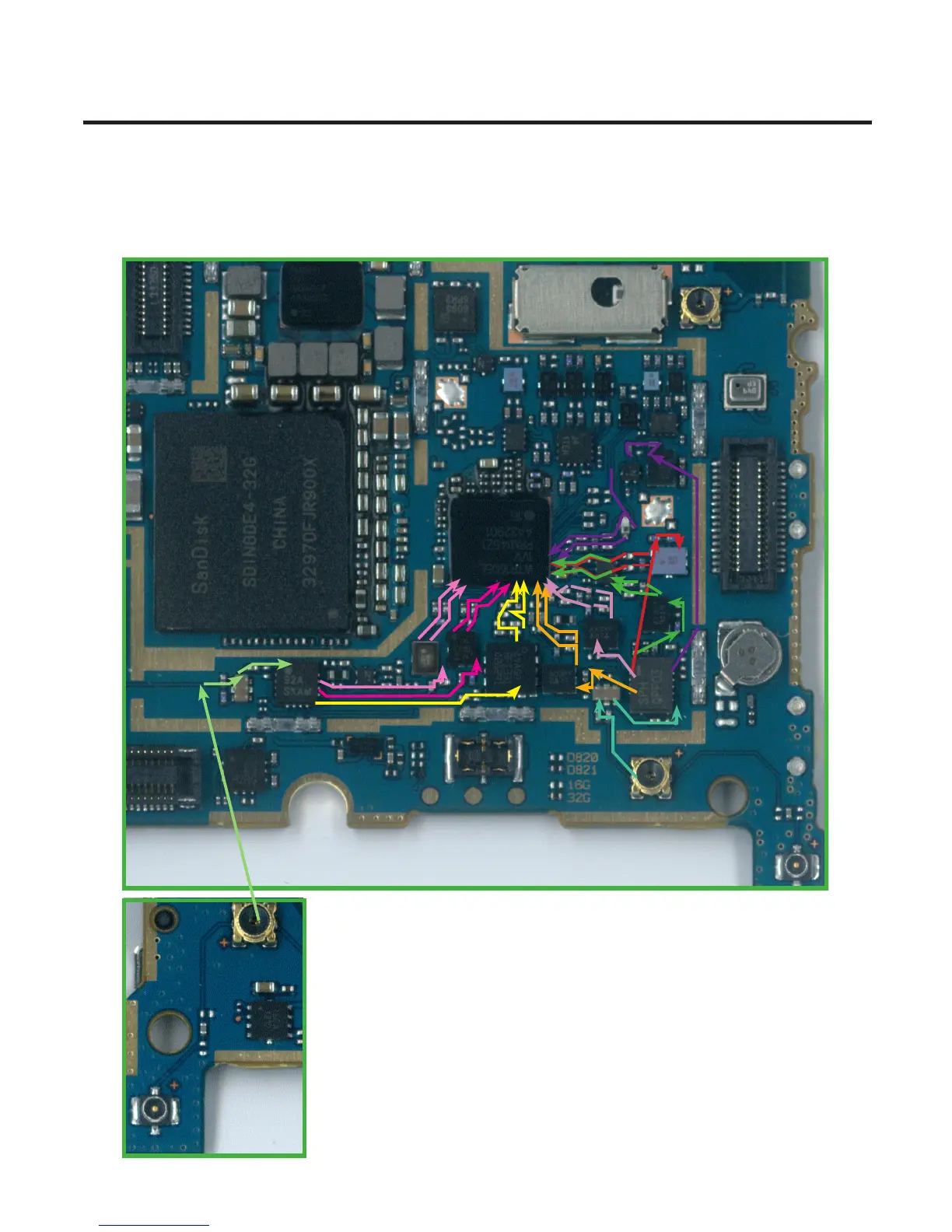

- WCDMA/LTE/CDMA/GSM PRX ow
1. WCDMA, LTE B1 PRX PATH
2. WCDMA B4 PRX PATH
3. WCDMA B2 / GSM 1900 PRX PATH
4. WCDMA, LTE B8 / GSM900 PRX PATH
5. LTE B3 / GSM 1800 PRX PATH
6. COMMON High Band TX/RX PATH
7. COMMON Low Band TX/RX PATH
8. WCDMA, LTE B5 / WCDMA B6 / GSM850 PRX PATH
9. LTE B20 PRX PATH
10. LTE B7 TX PATH
