4. TROUBLE SHOOTING
- 120 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

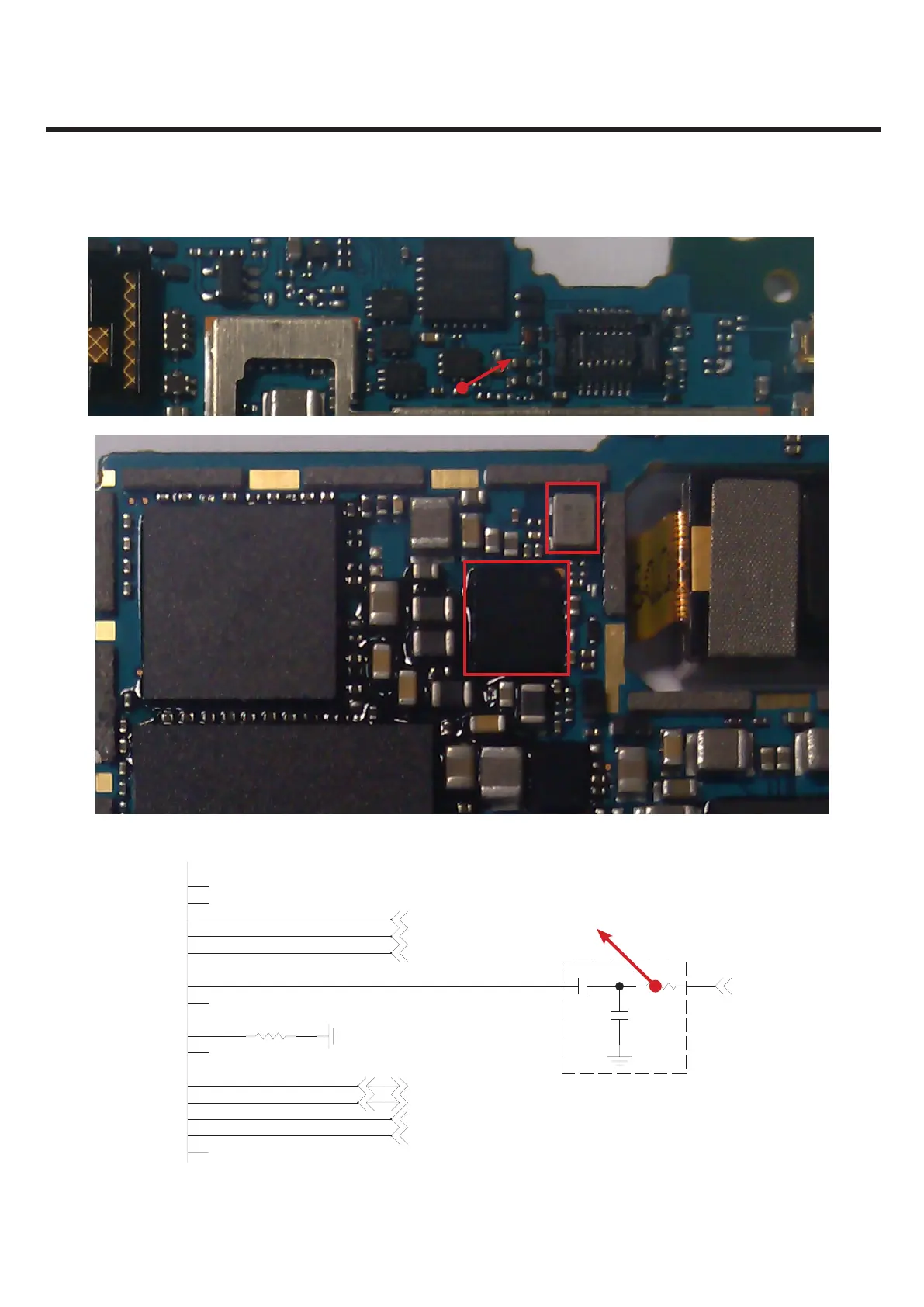

Schematic of WTR1605L
C12022
100p
R12003
0
DNI
C12023
86
100
45
89
80
93
60
79
120
105
121
88
114
96
GP_CLK
GP_SYNC
GP_DATA2
GP_DATA1
GP_DATA0
XO_IN
VTUNE_PRX
RBIAS
ADC_IN
SSBI_PRX_DRX
SSBI_TX_GNSS
RX_ON
RF_ON
JAM_DET
4.75KR12004
WTR0_XO_A0
WTR0_RX_ON
WTR0_RF_ON
WTR0_SSBI1
WTR0_SSBI2
WTR0_GPDATA0
WTR0_GPDATA1
WTR0_GPDATA2
Rev.B
TP2
X15001
U1005
TP2
