4. TROUBLE SHOOTING
- 132 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

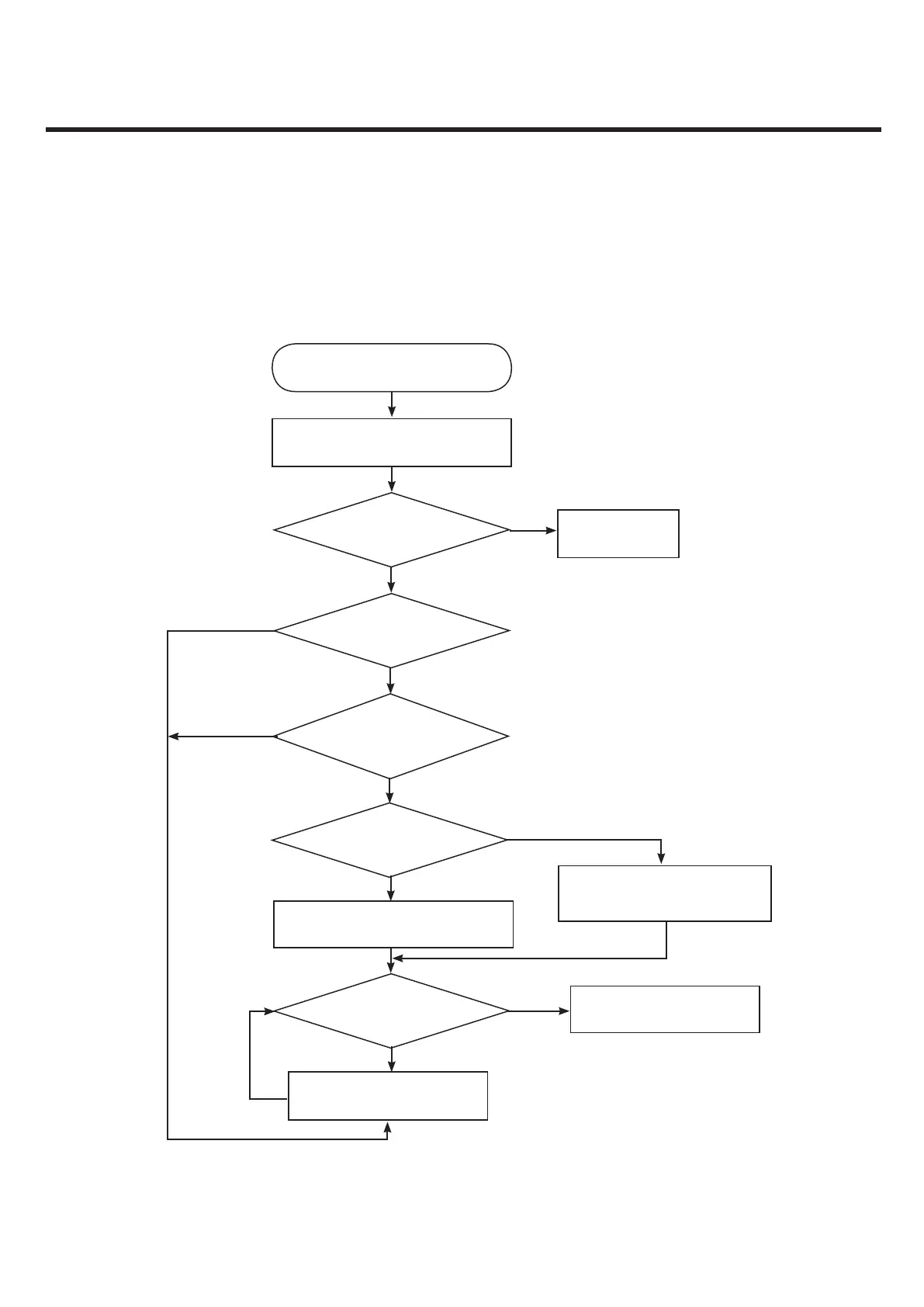

4.11 8M AF Camera Trouble Shooting
8M camera control signals are generated by APQ8064.
Check the Camera Conn.
and reconnect the camera
Yes
No
START
APQ8064 output signal check
MCLK(TP1), Rrset(TP2)
Camera is OK?
Camera is OK?
Check IOVDD(TP4),
DVDD(TP5),AVDD(TP3)
Change the EMI Filter
(FL6001, FL6003)
Check the EMI Filter
(FL6001, FL6003)
END
Change The main board
No
No
Change the Camera
END
No
No
Yes
Yes
Yes
Yes
