4. TROUBLE SHOOTING
- 152 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

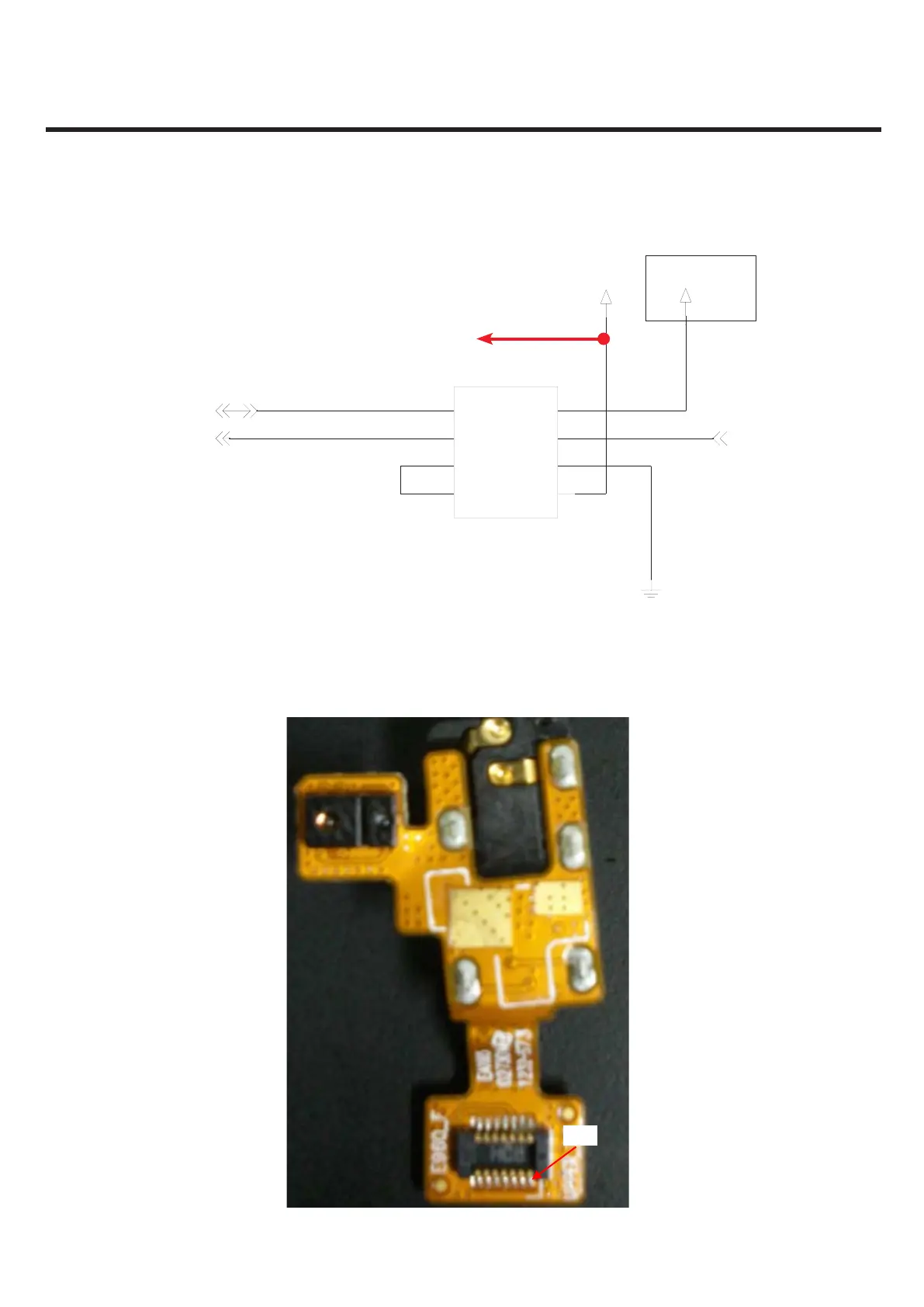

Upper RFPCB
U100
54
63
72
81
SDA VDD
INT SCL
LDR GND
LEDK LEDA
I2C_SENSOR_SDA
I2C_SENSOR_SCLPROX_AMBIENT_INT_N
VREG_L9_3P0
VREG_L9_3P0
2/1
TP1
Upper FPCB
TP1
TP1
TP1
