6. BLOCK DIAGRAM
- 202 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

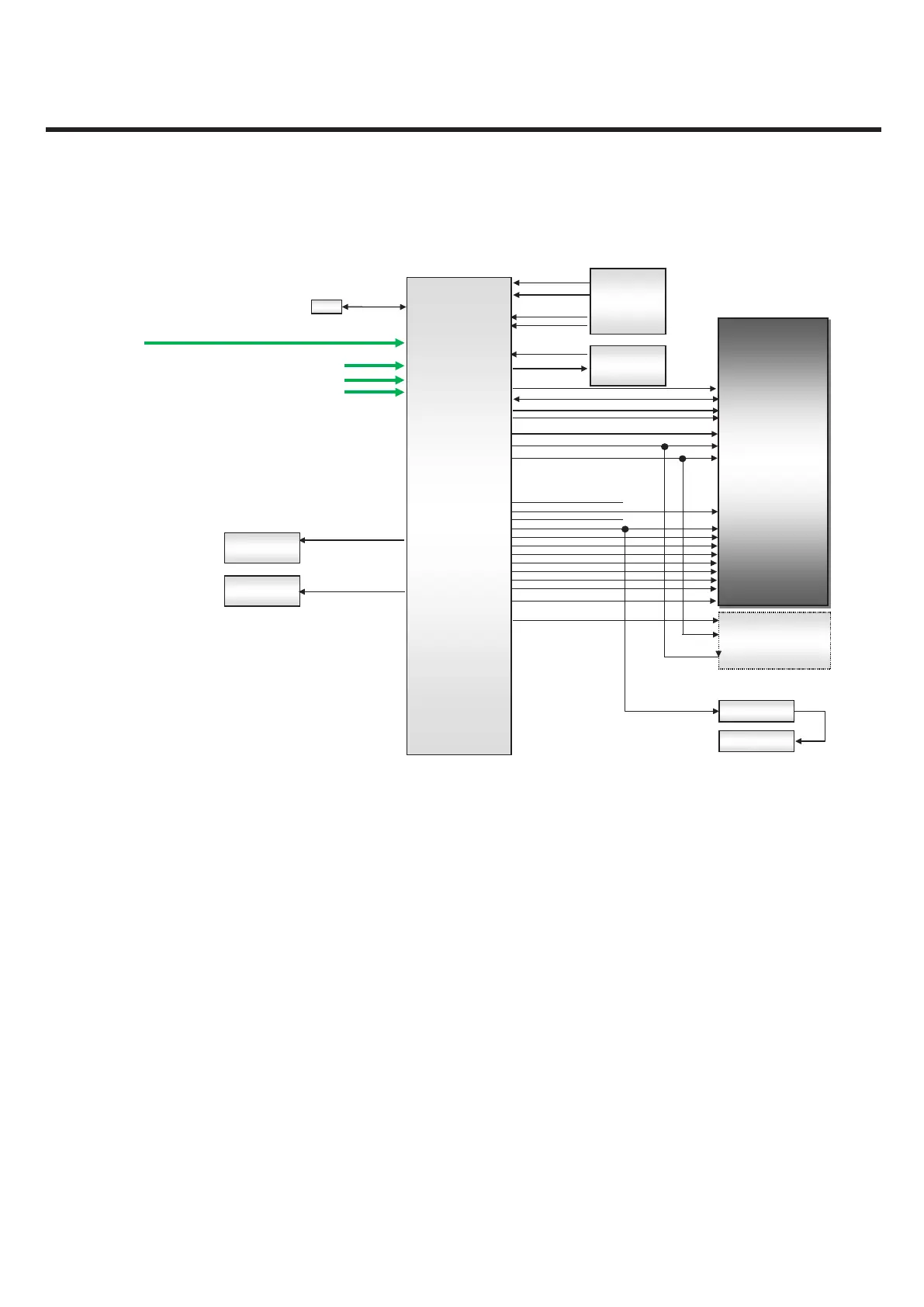

[M] Power Block Diagram PM8018
WTR1605L
VSW_S1
VREG_L2
VREG_MODEM_S1_1P1 (1.5A)
VSW_S2
VREG_MODEM_S2_1P3 (1.5A)
VSW_S3
VREG_MODEM_S3_1P8 (1.5A)
VSW_S4
VREG_MODEM_S4_2P05 (1.5A)
VSW_S5
VREG_MODEM_S5_1P8 (1.5A)
VREG_MODEM_L2_1P8 (50mA)
VREG_L3
VREG_MODEM_L3_1P8 (50mA)
VREG_L4
VREG_MODEM_L4_3P075 (300mA)
VREG_L6
VREG_MODEM_L6_2P85 (150mA)
VDD_USB_1P8
VDD_USB_3P3
VDD_PLL2
VDD_P4
+VPWR
NFC IC
BCM20793
USIM
VREG_L7
VREG_MODEM_L7_1P85 (300mA)
VDD_A2
VREG_L8
VREG_MODEM_L8_1P2(150mA)
VDD_P6
VREG_L9
VREG_MODEM_L9_1P05 (700mA)
VDD_MEM/VDD_PLL
VREG_L10
VREG_MODEM_L10_1P05 (700mA)
VDD_ADSP
VREG_L11
VREG_MODEM_L11_1P05 (700mA)
VDD_MDSP_FW
VREG_L12
VREG_MODEM_L12_1P05 (700mA)
VDD_MDSP_SW
VREG_L13
VREG_MODEM_L13_2P95 (50mA)
VDD_P2
VREG_L14
VREG_MODEM_LVS1
VDD_RF_SW (50mA)
RF Frontend
Switch block
PM8921
PM8018_VDD_XO (-mA)
MPPVREG_XO
VREG_LVS1
VDD_QFUSE
VDD_S1-5
VDD_L2/3/4/5/6/13/14
VDD_XO
PON_TRIG
SSBI
PWR_ON
XTAL_19M
19.2MHz
XTAL
VCOIN
XTAL_32K
DNI
VDD_L9/10/11/12
VDD_L8_LVS1
VDD_L7
VREG_MODEM_S5_1P15 (1.5A)
VREG_MODEM_S3_1P8 (1.5A)
PM_MDM_INT_N
PM_USR_INT_N
APQ8064
RESIN_IN
VREG_MODEM_S4_2P05 (1.5A)
GPIO_27
PM8018
GPIO_83
PS_HOLD
RESIN_N
RESIN_N
PON_RESET_N
RESIN_N
GPIO_81
GPIO_87
VDD_CORE
VDD_A1
VDD_IO
MDM9215M
VDD_DDR/P1/P3/P5/P7
VDD_RF2
VDD_RF1
RF GNSS
VREG_L5
VREG_MODEM_L5_2P85(150mA)
[LG-E960] Power Block Diagram PM8018
