6. BLOCK DIAGRAM
- 205 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
APQ8064
BCM20793
I2C_COMMON_SCL
I2C_COMMON_SDA
GPIO 20
GPIO 21
UART_TXD
UATR_RTS_N
NFC_WAKE_BCM
NFC_IRQ
GPIO 29
GPIO 37
UART_CTS_N
NFC_WAKE
REG_PU
GPIO 55
26 MHz oscillator
1ZCB26000AB0M
XTAL_XOP XTAL_XON
TX1
TX2
NFC_VEN

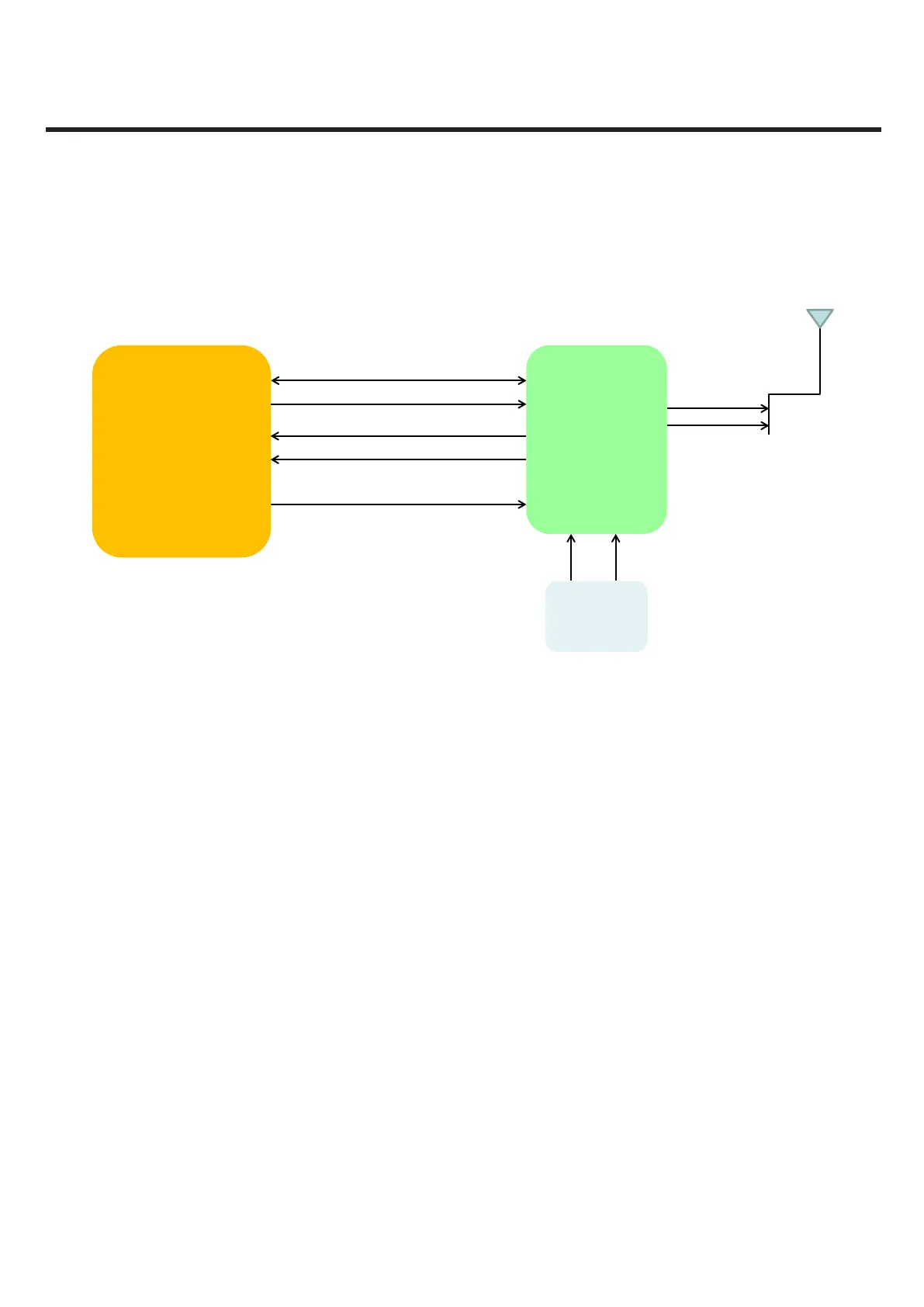

[M] E960 NFC Block diagram
[LG-E960] NFC Block diagram
