4. TROUBLE SHOOTING
- 45 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

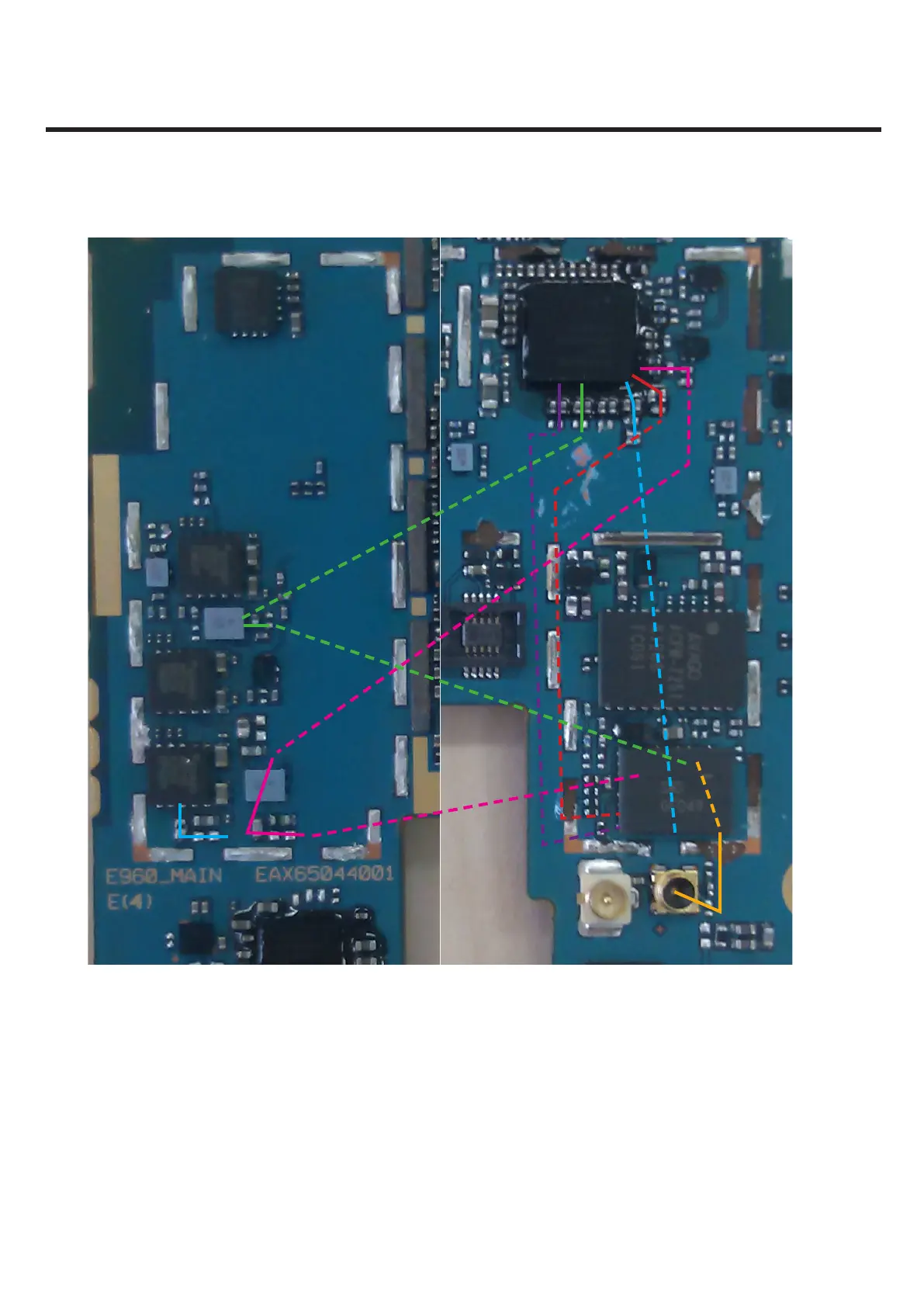

WCDMA B1, B5 and B2 RX Signal PATH
1. WCDMA B1 RX PATH 2. WCDMA B2 RX PATH
3. WCDMA B4 RX PATH 4. WCDMA B5 RX PATH
5. WCDMA B8 RX PATH 6. COMMON TX/RX PATH
To Next Page
