4. TROUBLE SHOOTING
- 58 -
Copyright © 2012 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

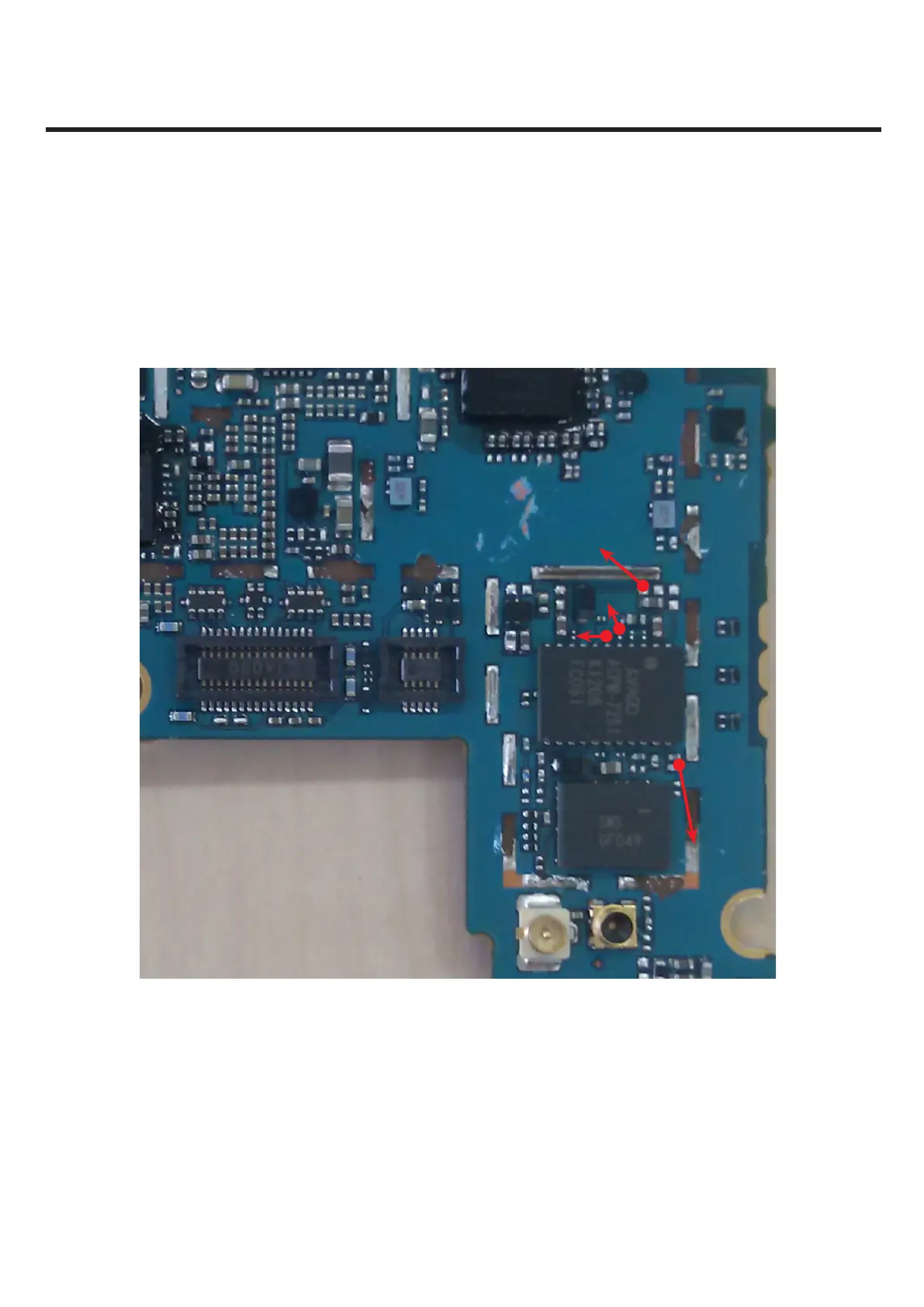

- PAM control signal
PA_ON1 GSMHB (C11102) : PAM Enable
PA_R0 (C11098) : PAM Gain Control
PA_ON1 GSMHB (C11102) must be HIGH (over 2.6V)
TP4
TP1
TP3
TP2
