2-47

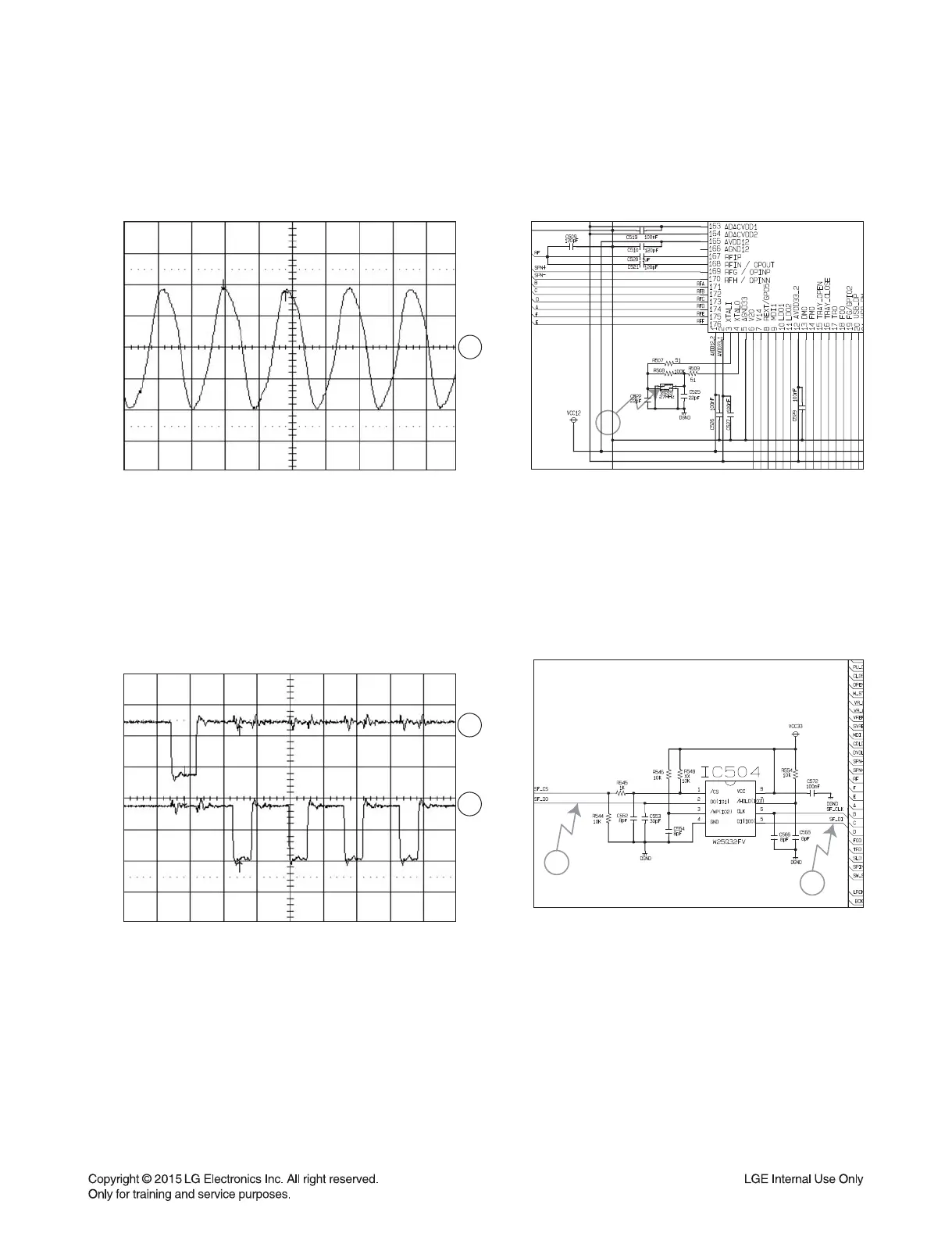

DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING
1. SYSTEM PART (MPEG CRYSTAL 27 MHz)
1) MT1389QE/GH main clock is at 27 MHz (X500)
1
1
2) Flash R/W enable signal during download.
3
2
3
2
SF_DI
SF_DO
IC500
