2 Connecting
Connecting12
Connecting
2

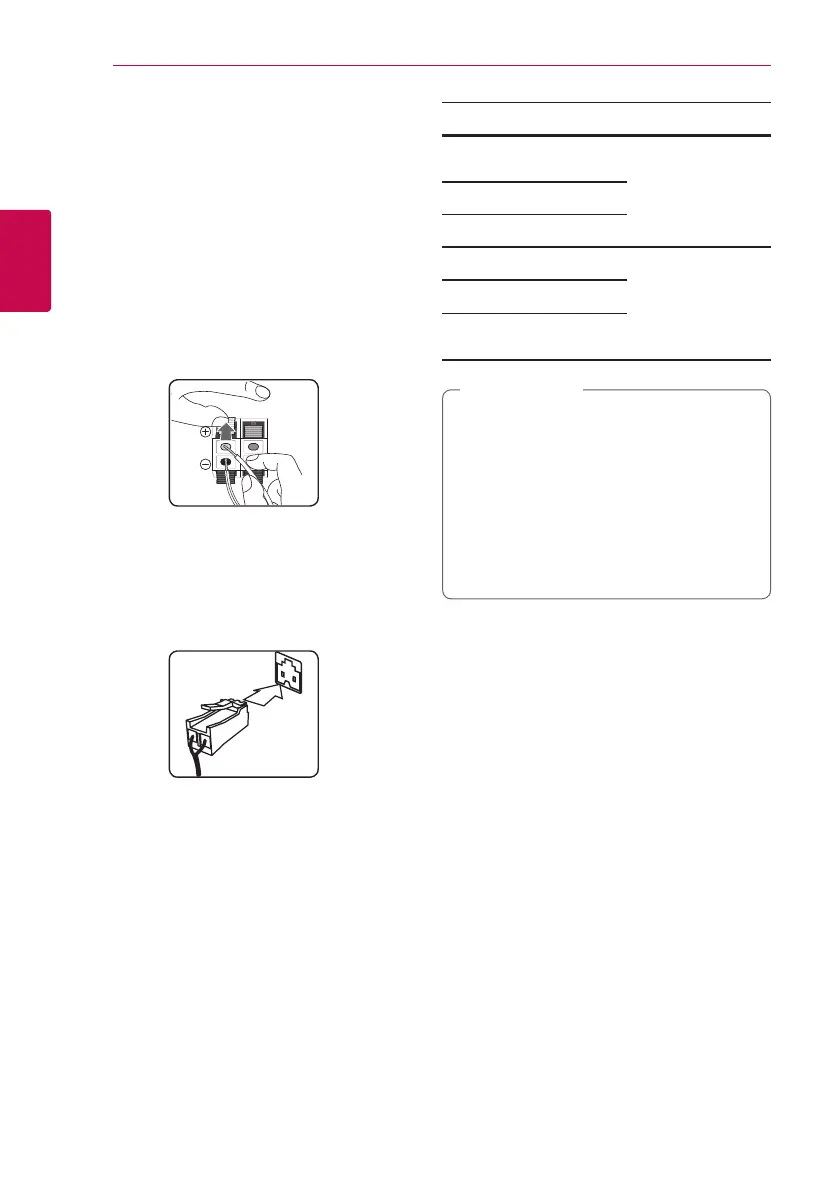

Attaching the speakers
to the unit
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit.
To connect the cable to the unit, press each
plastic finger pad to open the connection
terminal. Insert the wire and release the finger
pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Connect a woofer cord to the unit. When
connecting a woofer cord to the unit, insert the
connector until it clicks.
Color Speaker Position
Grey SURR. R
(Rear)
Front right
Red
FRONT R
Orange
SWF R
Orange
SWF L
Front left
White
FRONT L
Blue SURR. L
(Rear)
y
Be careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*speaker duct : A hole for plentiful bass sound
on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or PC
monitor screen. Please use the speakers far
away from either TV screen or PC monitor.
>
Caution
To Next Page
