LG LMCN078HV User Manual

13
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MAX
MULTI
F
MULTI
F
GENERAL DATA
'LPHQVLRQV

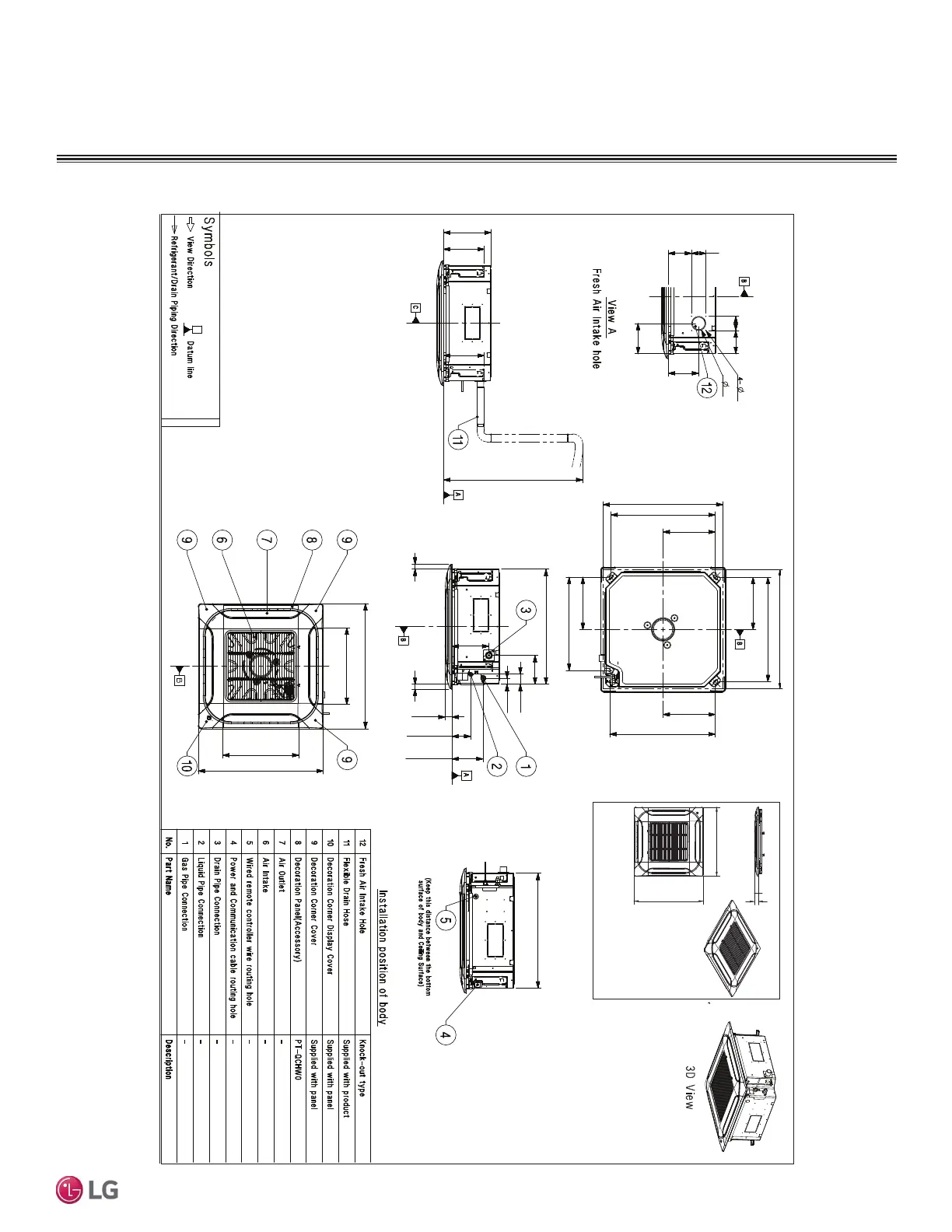

Figure 2: LMCN078HV, LCN098HV4, and LCN128HV4 Dimensions.
23-5/8 (600) (Ceiling Opening)
Unit: Inch (mm])
4-17/32
(115)
2-51/64
(71)
2-51/64
(71)
4-17/32
(115)
7/64
(3)
2-3/4
(70)
5-29/32
(150)
5-29/32
(150)
20-23/64 (517) (Hanging Bolt)
10-13/64 (259)
10-13/64 (259)
10-13/64 (259)
23-5/8 (600) (Ceiling Opening)
20-23/64 (517) (Hanging Bolt)
20-19/32 (523) (Hanging Bolt)
10-13/64 (259)
5-19/32
(142)
9-19/64 (236)
7-61/64
(202)
7-61/64
(202)
Max. Condensate Lift: 31-1/2
(800) or less
22-7/16 (570)
1-31/32
(50)
18-5/32 (461) (Hanging Bolt)
1-3/16
(30)
63/64
(25)
63/64
(25)
7-13/64
(183)
1-11/32
(34)
3-21/32
(93)
6-1/16
(154)
24-13/32 (620)
14-29/32 (379) (Air Outlet Hole)
24-13/32 (620)
22-7/16 (570)
14-29/32 (379)
(Air Outlet Hole)
1
11
32
24-13/32 (620)
24-13/32 (620)
PT-QCHW0

LG LMCN078HV Specifications

General

Brand	LG
Model	LMCN078HV
Category	Air Conditioner
Language	English
