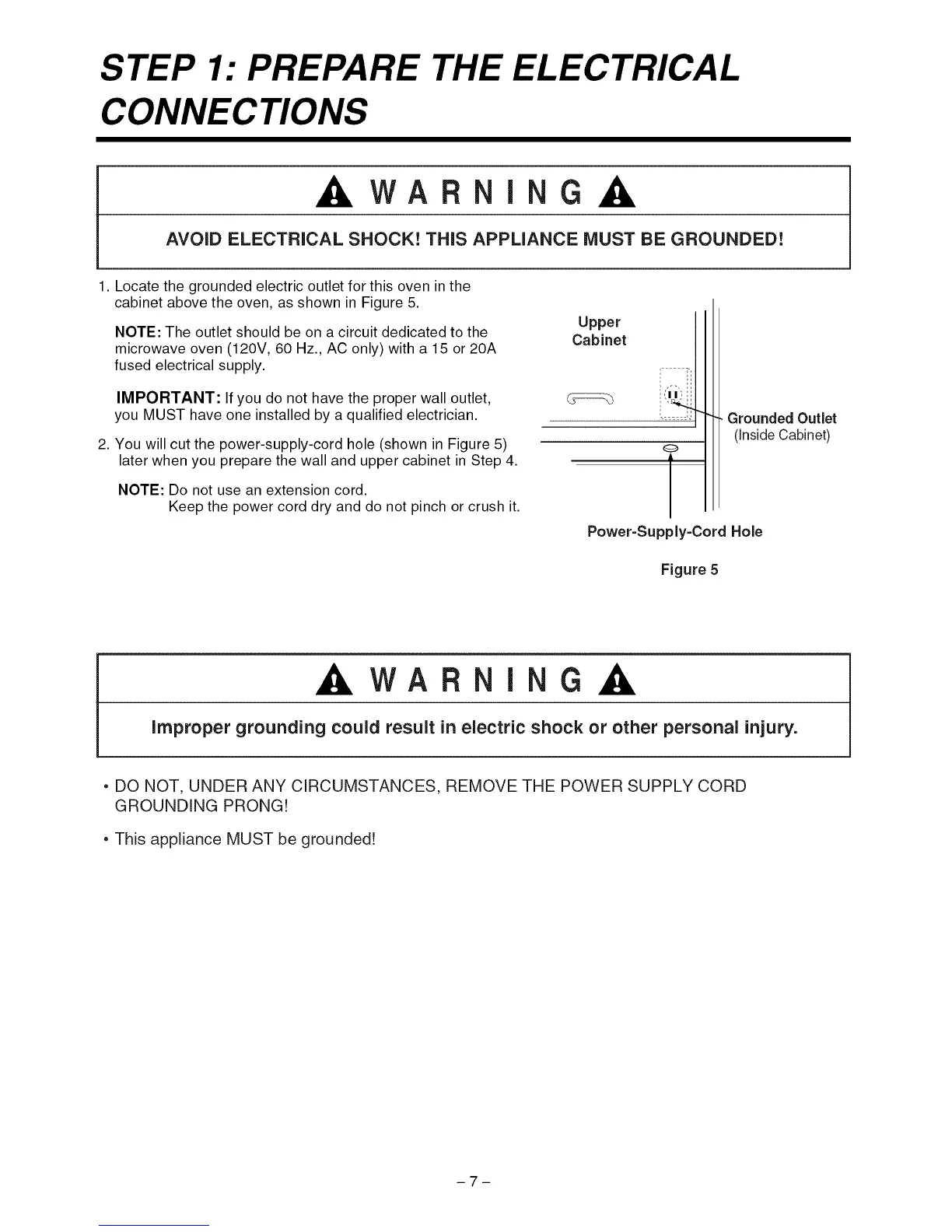

STEP 1: PREPARE THE ELECTRICAL
CONNECTIONS
AWARNINGA
AVOID ELECTRICAL SHOCK! THiS APPLIANCE MUST BE GROUNDED!
1. Locate the grounded electric outlet for this oven in the
cabinet above the oven, as shown in Figure 5.
NOTE: The outlet should be on a circuit dedicated to the
microwave oven (120V, 60 Hz., AC only) with a 15 or 20A
fused electrical supply.
IMPORTANT: If you do not have the proper wall outlet,
you MUST have one installed by a qualified electrician.
2. You will cut the power-supply-cord hole (shown in Figure 5)
later when you prepare the wall and upper cabinet in Step 4.
NOTE: Do not use an extension cord.
Keep the power cord dry and do not pinch or crush it.
Upper
Cabinet
- Grounded Outlet
(Inside Cabinet)
Q
T
Power=Supply=Cord Hole
Figure 5
AWARNINGA
improper grounding could result in electric shock or other personal injury.
• DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER SUPPLY CORD
GROUNDING PRONG!
• This appliance MUST be grounded!
-7-
