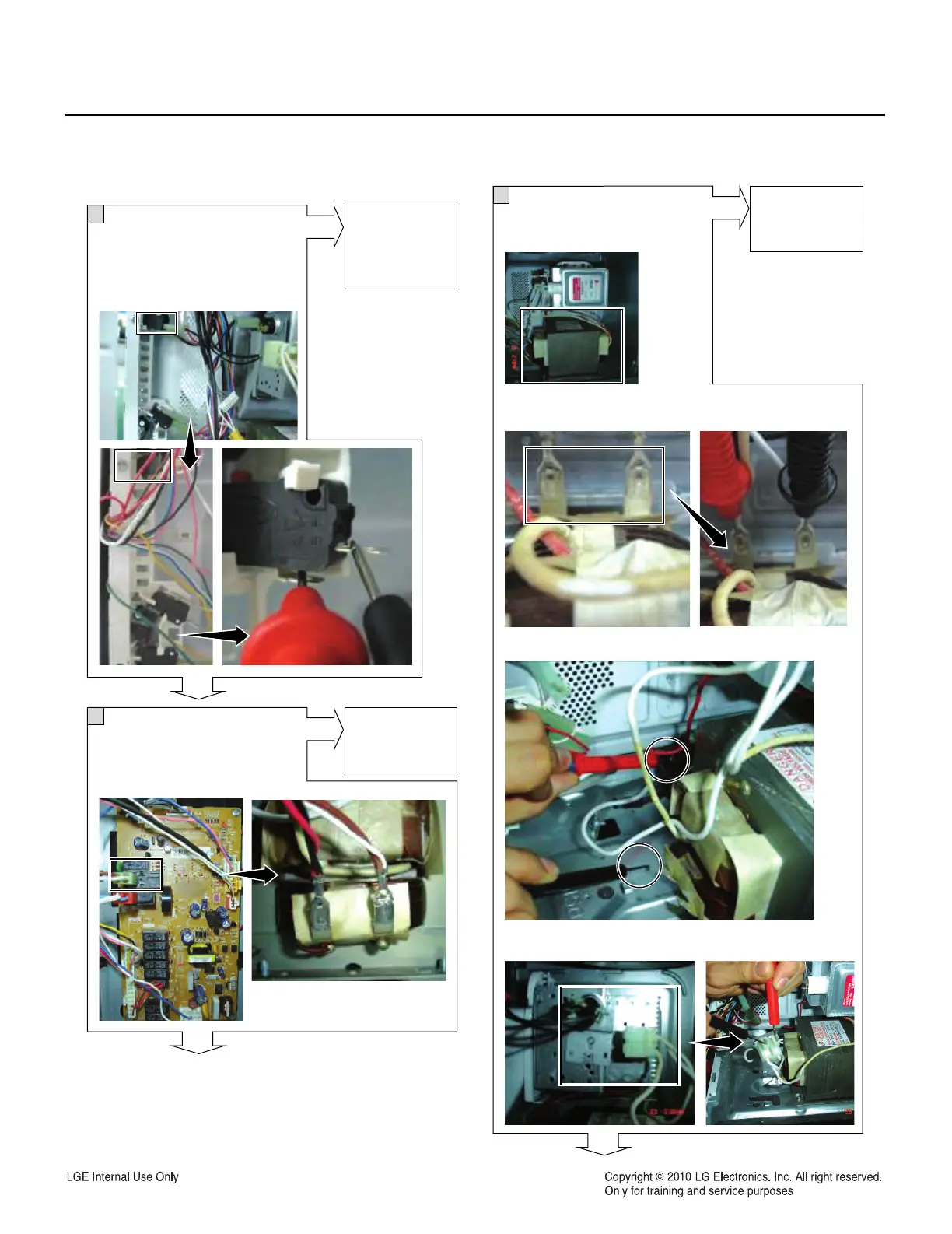

Is there any beep sound

in continuity test between

the ends of latch board?

- primary switch

(Door should be closed.)

Power Off

Yes

Adjust latch

board

(Refer to 9-1,

9-2)

Is the resistance of high

voltage Transformer out of

rage?

Test Point

1. Primary winding (High, Low): 0.2 ~ 0.5 Ohm

2.Secondary: 50~120 Ohm

3.Filament winding: 0 Ohm

Yes

Replace the

High Voltage

Transformer

Is the connector connected

to High voltage Transformer

assembly disconnected or

disassembled?

Yes

Reconnect or

repair the

connector

Case (ground)
