-37-
B. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing one screw
securing it to the outer case.
(2) Remove three screws securing it to the air duct.
(3) Remove one screw securing it to the front cavity.
(4) Remove the mounting plate by turning two
screwssecuring it to the outer case.
(5) Remove three screws on the left central edge and
three screws on the right central edge of the base
plate.
(6) Remove the fan bracket from the outer case by
removing one screw securing it to the outer case
and removing one screw securing it to the motor.
(7) Remove four screws of the rear cavity.
(8) Remove the power cord cover by remove one
screw securing it to the outer case.
(9) Remove the outer case with disconnecting power
cord connector.
Fan Bracket
Power Cord

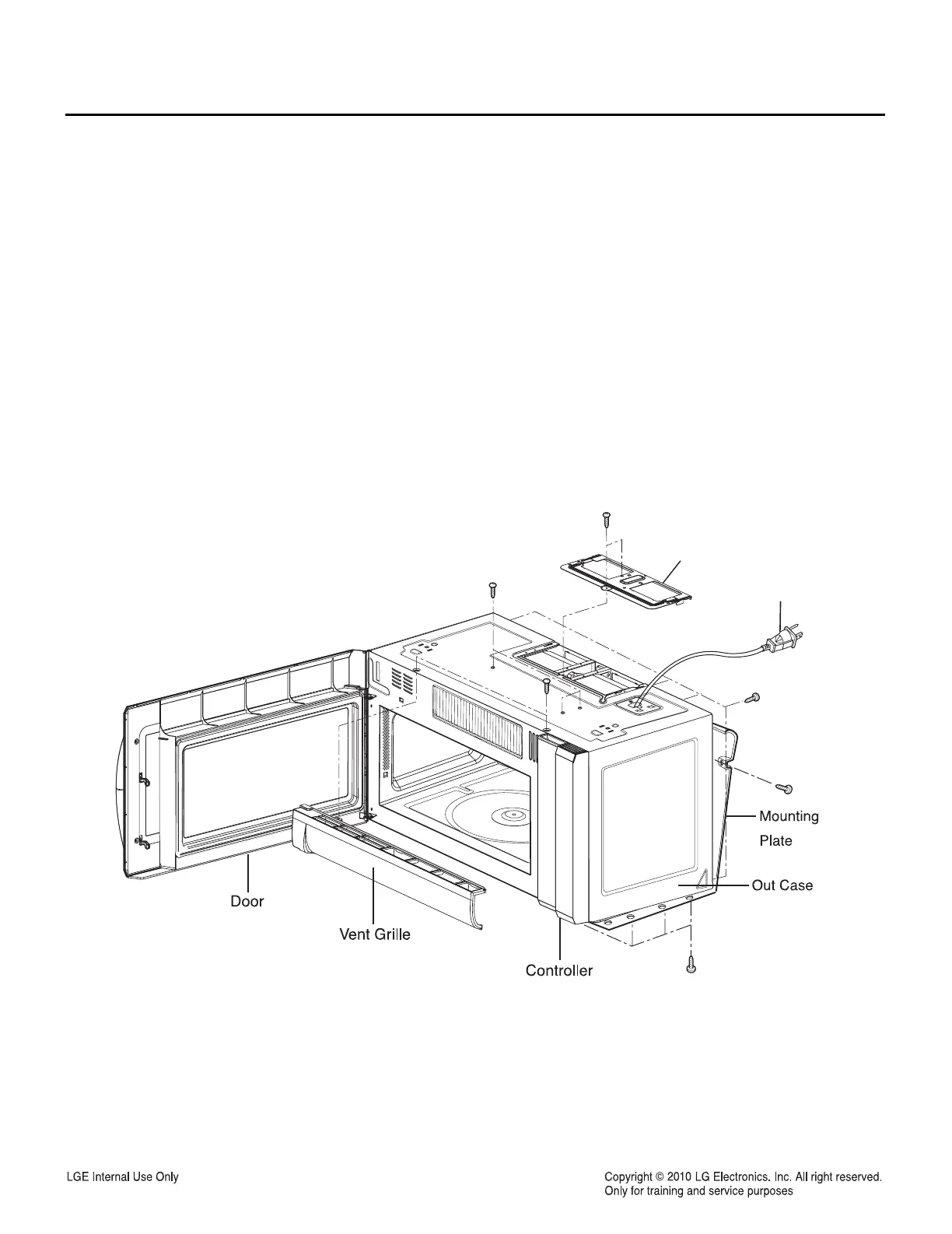

Figure 8
To Next Page
