-38-

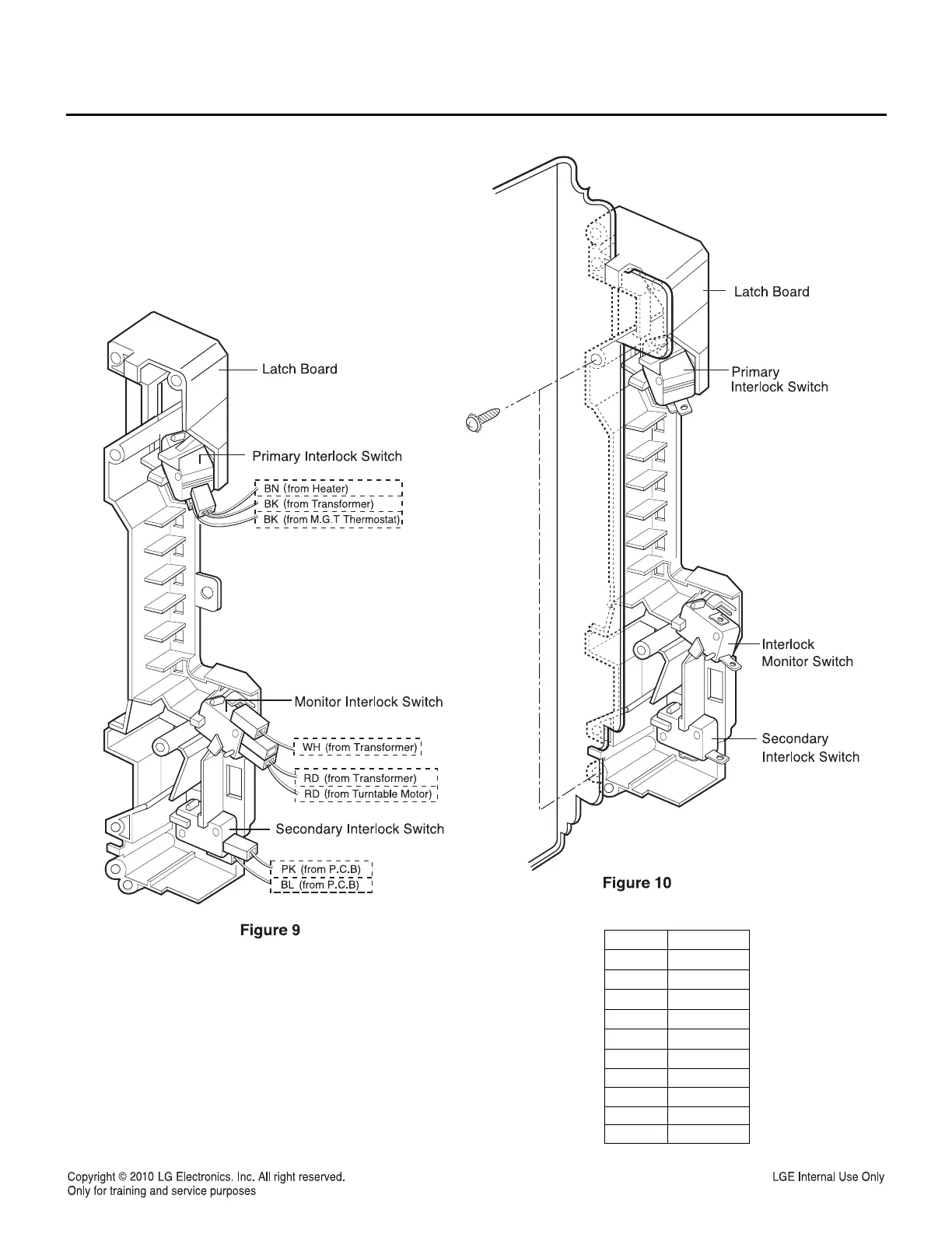

C REMO
VING THE DOOR INTERLOCK
SWITCHES (Figures 9,10)
(1) Disconnect the wire leads from the interlock
switches.
(2) Remove two screws securing the Latch Board.
(3) Make necessary replacements and check
microwave energy leakage according to
ADJUSTMENT PROCEDURES on page 28.
WIRE COLOR
SYMBOL
COLOR
WH
WHITE
BK
BLACK
BN
BROWN
RD
RED
YL
YELLOW
PK
PINK
BL
BLUE
GY
GREY
GN
GREEN
N.P.
Not Provided
37
39
Table of Contents
Safety Precautions
2
Table of Contents
3
Specification
4
Cautions
5
Installation
6
Operation
7
Control Panel Features
7
Explanation of Control Panel
8
Wiring Diagram / Key Matrix
9
Wiring Diagram
9
Key Matrix
10
Troubleshooting
11
General Information for Service
11
Safety Caution
12
Basic Check Summary
13
Troubleshooting
14
Microwave Leakage Test
25
Power Output Measurement
27
Interlock System
28
Interlock Mechanism
28
Interlock Continuity Test
30
Component Testing Information
31
Disassembly Instructions
35
Exploded View
43
