-41-

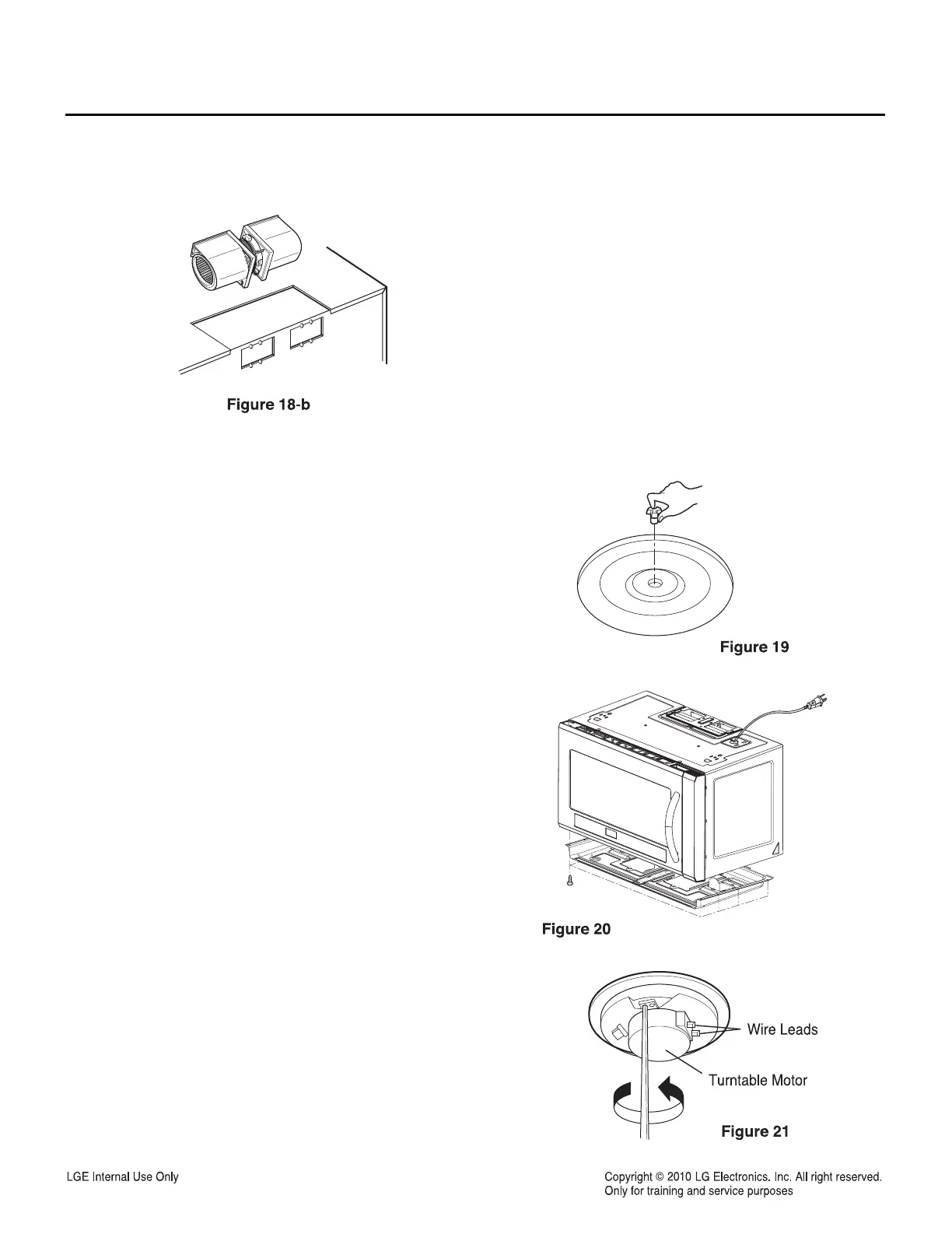

(3) Carefully pull the ventilation motor assembly out of
the microwave oven. (See Figure 18-b)
J. REMOVING THE TURNTABLE MOTOR
(1) Remove the glass tray and rotating ring.
(2) Remove the turntable shaft VERY CAREFULLY
with a hand. (Figure 19)
(3) Remove the base plate by removing 8 screws
securing it to the oven cavity. (Figure 20)
(4) Disconnect the leadwire from the turntable motor
terminals.
(5) Remove the 2 screw securing the turntable motor
to the oven cavity
assembly
. (Figure 21)
NOTES:
• Remove the leadwire from the turntable motor
VERY CAREFULLY.
• Be sure to grasp the connector, not the wires,
when removing.
To Next Page
