YOUR SAFETY FIRST
BEFORE YOU START
• Proper installation is the installer's responsibility!
– Read the entire manual before you begin. The Model number label is located on the oven front.

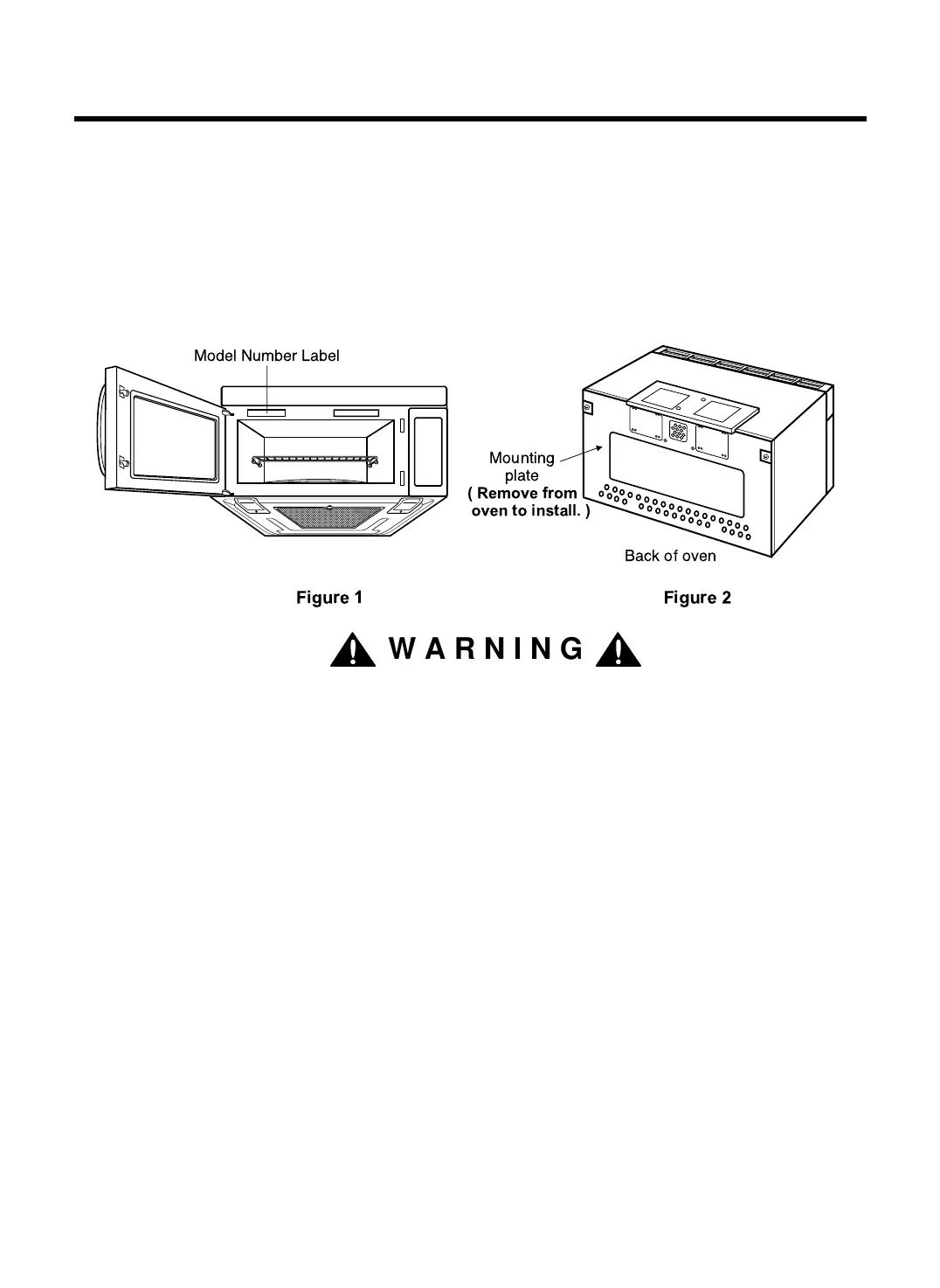

See Figure 1. Mounting plate is located on back side of microwave oven. See Figure 2.
NOTE: Vent grille appearance vary by model.
BE SURE TO READ THE FOLLOWING SAFETY INSTRUCTIONS:
FOR YOUR SAFETY:
• You will need TWO people to install this oven. It is heavy and could cause personal injury if not handled
properly. The dimensions of the oven are as follows:
Height : 16
7/16 inches
Width : 29 15/16 inches
Depth : 15
5/8
inches
Net Weight : 60 lbs.
• Avoid Electrical Shock!
– Before you drill into the wall, note where electrical outlets are and where electrical wires might be concealed
behind the wall. YOU COULD GET AN ELECTRIC SHOCK if you contact electrical wires
with your drill bit.
– Locate and disconnect the power to any electrical circuits that could be affected by installing this oven.
IF YOU DO NOT DISCONNECT THE POWER, YOU COULD GET AN ELECTRIC SHOCK.
• ELECTRICAL RATING OF THIS OVEN : 120V AC 60Hz.
13 Amp / 1,500 W (Microwave oven + Cooktop Lamps + Ventilation Fan)
– You need a DEDICATED 120V, 60Hz, AC only, 15 or 20A, fused electrical supply (located in the cabinet
above the microwave as close as possible to the microwave) serving only the microwave.
