- 10 -

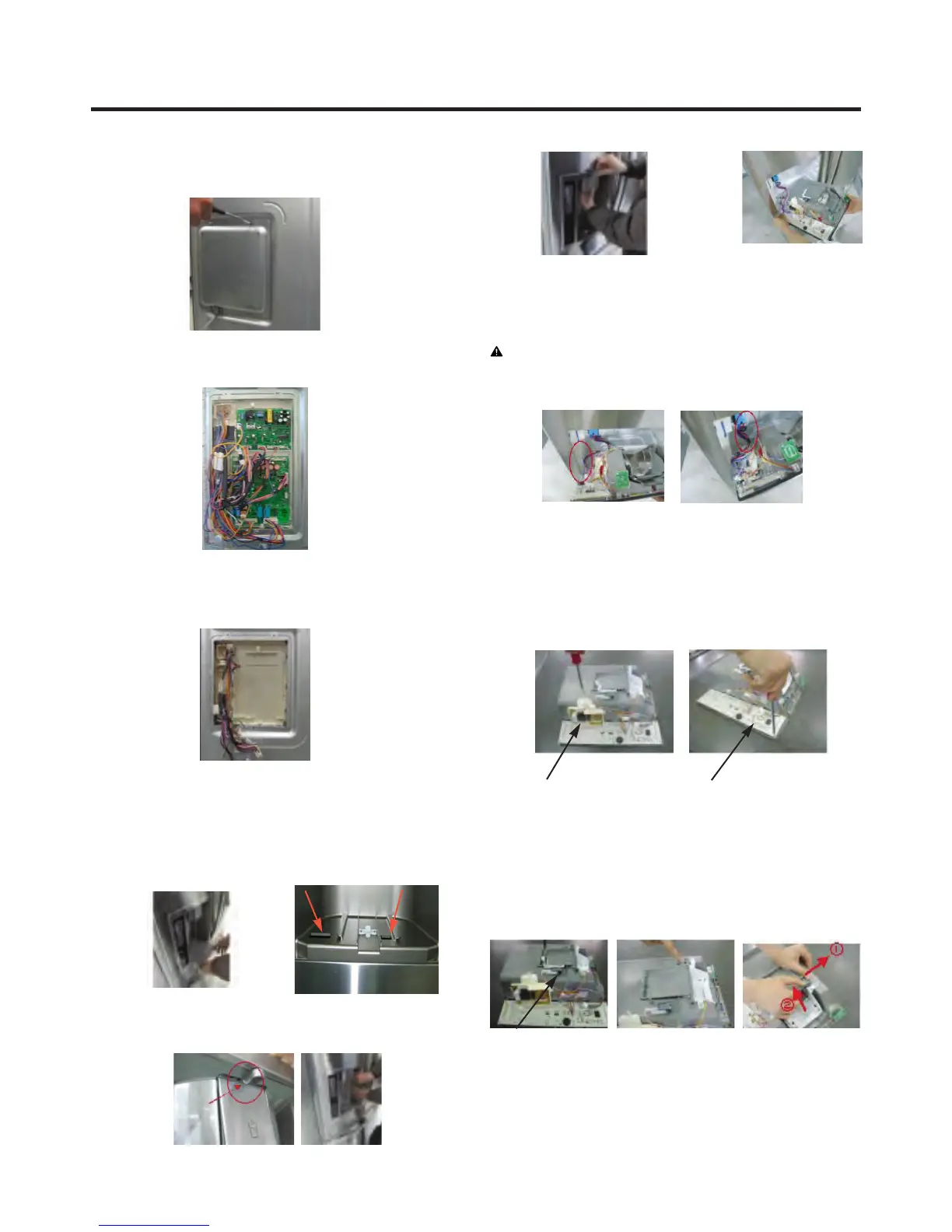

3-8 MAIN PWB
1) Loosen 3 screws on the PWB cover.
3-9 DISPENSER
1) Pull out the drain 2) Use these 2 holes to pull
out the bottom
4) Holding the inner side of
the dispenser pull
forward to remove.
2) Remove the PWB cover
3) Disconnect wire harness and replace the main PWB in
the reverse order of removal.
3-10 DISPLAY PCB
As shown below, remove 1 screw on the PCB fixing screw.
Remove the display PCB fixing screw.
3-11 ICE BUTTON ASSEMBLY
1) Remove the 1 screw holding the lever.
2) Remove the spring from the hook.
3) Push and pull on the tab to remove.
CAUTION: When replacing the dispenser cover make
sure the lead wire does NOT come off and the water line
is not pinched by the dispenser.
Button Lever
Case, PCB Display PCB
5) Remove the
lead wire.
3) If nozzle is interfered with button, push and pull out the
bottom of button and then pull out the right side.
To Next Page
