1. SPECIFICATIONS
1-1 LRMVS3006*
DOOR DESIGN
DIMENSIONS (inches)
NET WEIGHT (pounds)
COOLING SYSTEM
TEMPERATURE CONTROL
DEFROSTING SYSTEM
DOOR FINISH
HANDLE TYPE
INNER CASE
INSULATION
ITEMS
Side Rounded
35
3
/4 X 38
1
/8 X 70
1
/4 (WXDXH) 29.5cu.ft.
368lb (167kg)
Indirect Cooling
Micom Control
Full Automatic
Heater Defrost
PCM, VCM, Stainless
Bar
ABS Resin
Polyurethane Foam
SPECIFICATIONS
●
29.5 cu.ft.
VEGETABLE TRAY
COMPRESSOR
EVAPORATOR
CONDENSER
REFRIGERANT
LUBRICATING OIL
DEFROSTING DEVICE
ITEMS
Clear Drawer Type
Linear
Fin Tube Type
MC
R-600a (55 g)
ISO10 (280 ml)
SHEATH HEATER
LED Module
LED Module
SPECIFICATIONS
LAMP
REFRIGERATOR
FREEZER
●
DIMENSIONS
Copyright © 2019 LG Electronics Inc. All rights
reserved. Only training and service purposes.
B
A
C
D
F
I
H
E
G

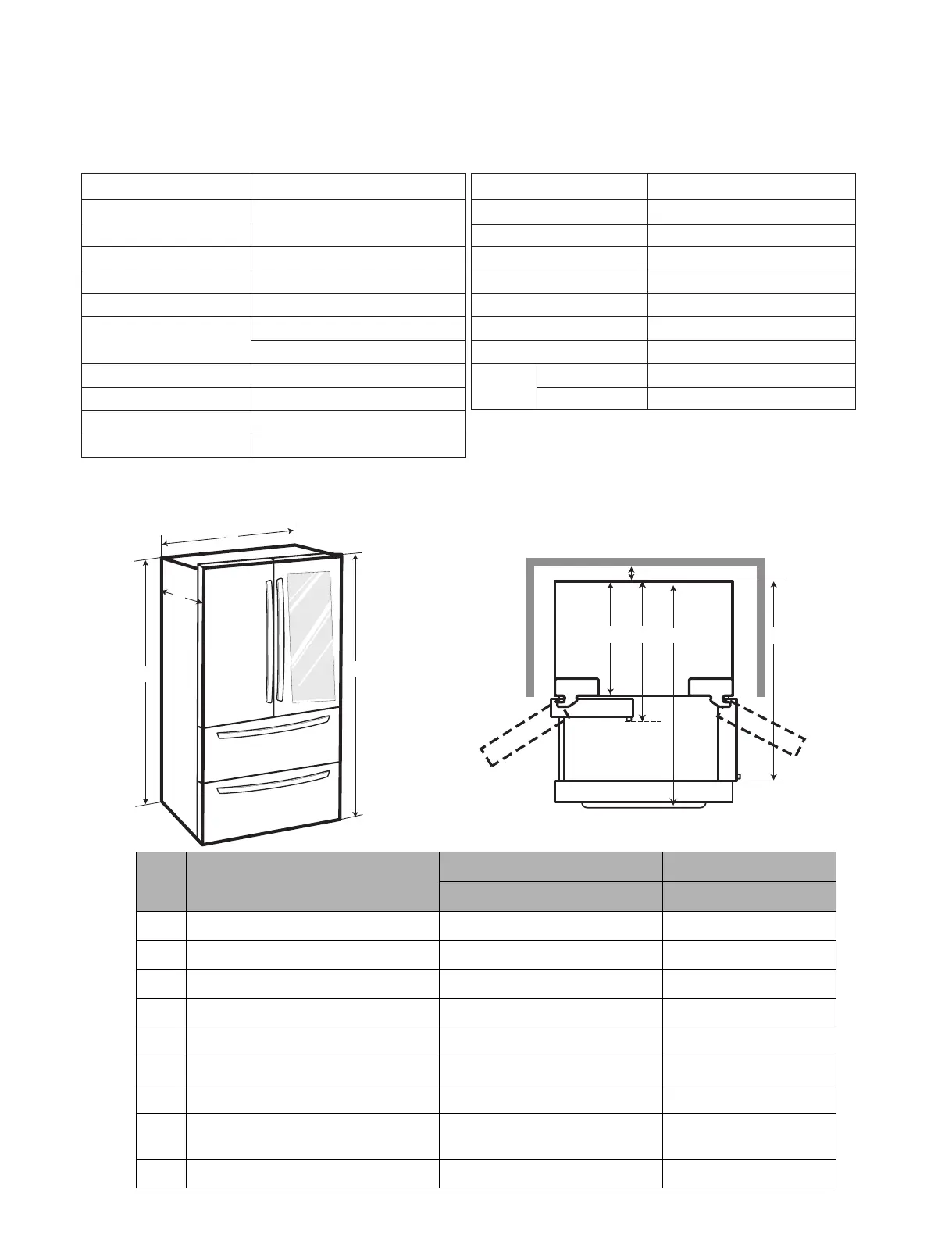

- Dimension/Clearance
LRMDS3006* LRMDC2306*
LRMVS3006* LRMVC2306*
A Depth without Handle 35 3/4" (908 mm) 28 7/8" (731 mm)
B Width 35 3/4" (908 mm) 35 3/4" (908 mm)
C Height to Top of Case 69 1/8" (1753 mm) 69 1/8" (1753 mm)
D Height to Top of Hinge 70 1/4" (1785 mm) 70 1/4" (1785 mm)
E Back Clearance 2" (50 mm) 2" (50 mm)
F Depth without Door 31" (785 mm) 24 1/8" (610 mm)
G Depth with Handle 38 1/8" (968 mm) 31 1/4" (793 mm)
H Depth (Total with Freezer Drawer
Open)
59 3/8" (1508 mm) 47 3/4" (1213 mm)
I Depth (Total with Door Open 90°) 50 1/8" (1272 mm) 43 1/4" (1097 mm)

LG LMXS3006 Series Specifications
