5 6
Slot
(1) Insert
Type C screw
(2) Slide

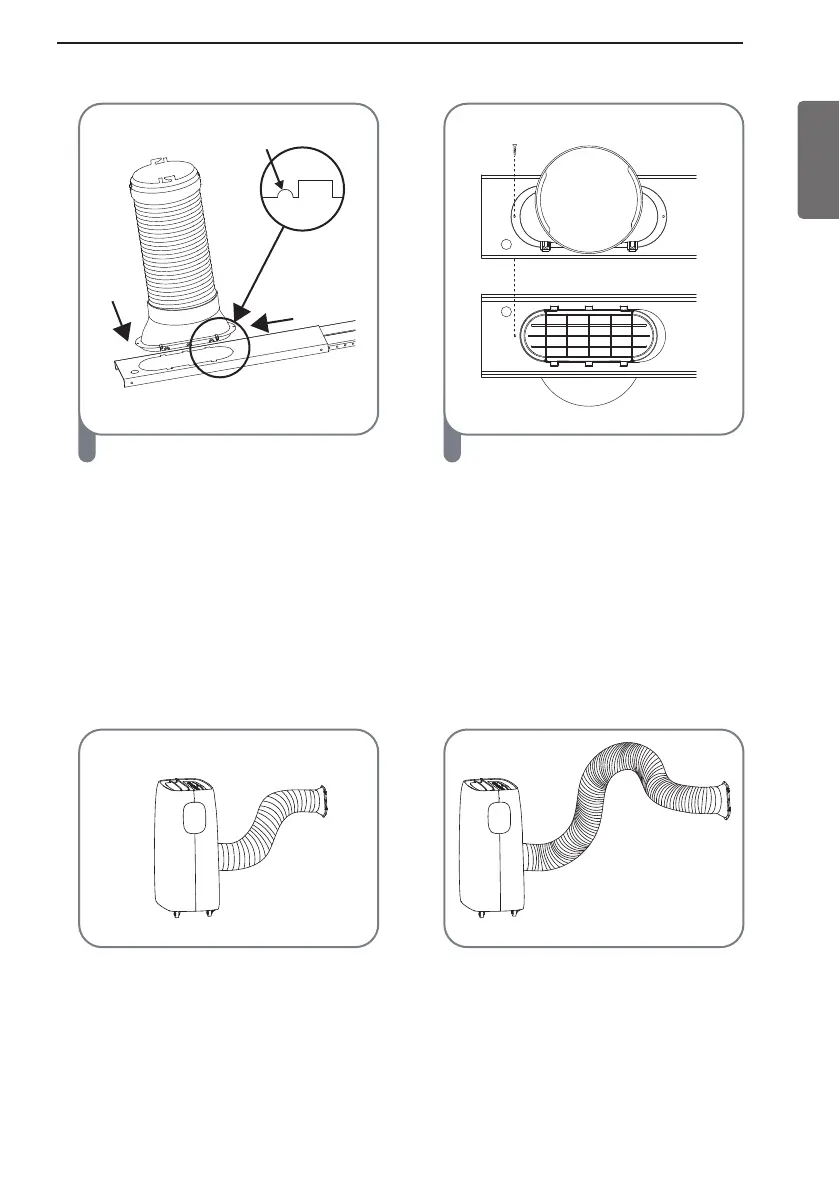

Align the tabs on the diffuser with the slots in
the vent panel. Insert the diffuser into the
opening in the vent panel and slide the
diffuser all the way over to lock the tabs in
place. Position the diffuser with the round
opening above the bottom of the vent panel
to avoid interference from the window sill.
Insert the type C screw in the hole in the
diffuser to prevent the diffuser from sliding
out of the vent opening. If the diffuser is
positioned correctly, the screw should just
clear the edge of the opening in the vent
panel. You should not have to drill through
the vent panel.
NOTE
Best positioning Inverted U shape
• For a tighter seal, use "no residue" duct tape (not provided) to seal any gaps around the installed
panel assembly, around the diffuser, and between the sashes.
• For best results, keep the vent hose as short and straight as possible. However, shape the diffuser
end of the vent hose into an inverted U shape just inside the window to allow any rain or
condensation to drain out the window.
INSTALLATION
15
ENGLISH
