Outdoor Drainage
Garden Hose Installation for Dehumidifying (Dry Mode Only)

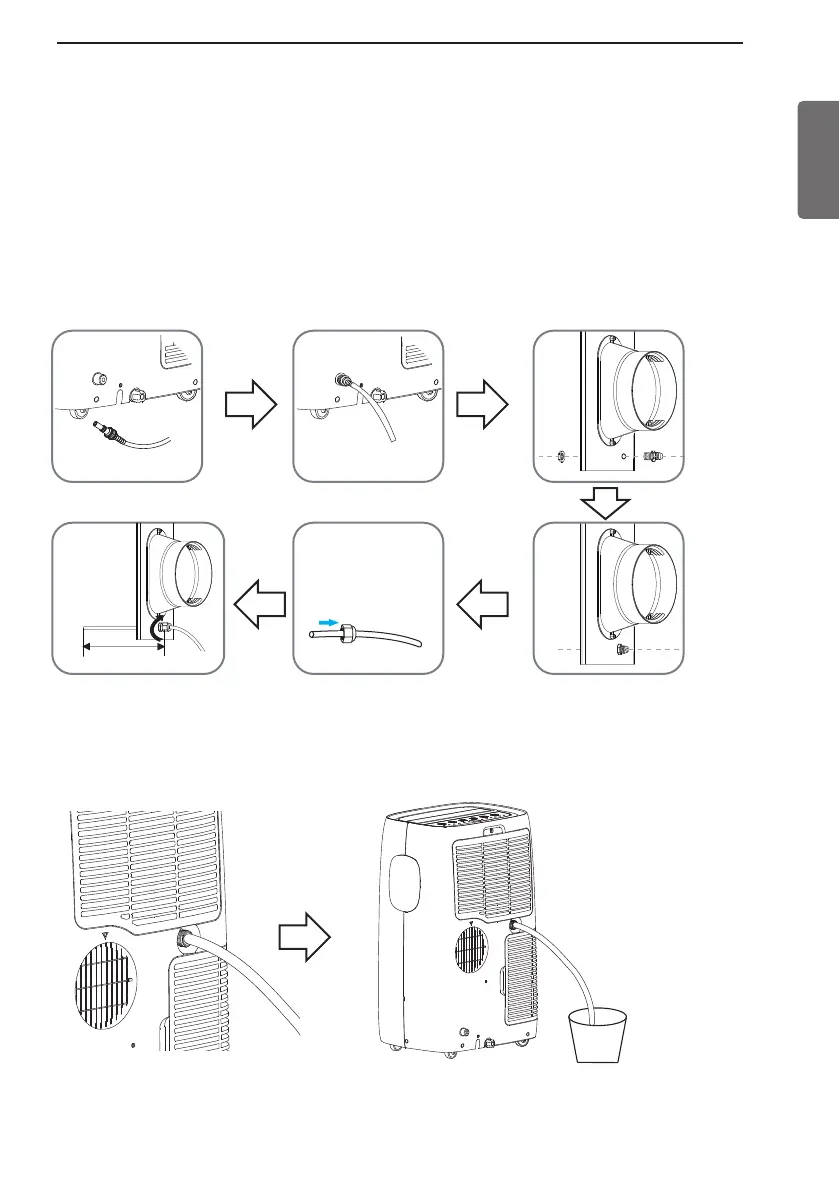

1. To attach the drain hose, insert the connector into the pump drain port at the back of the unit until it
snaps into place.
2. Unscrew the nut at the bottom of the locking nut. Insert the locking nut into the hole in the front of
the window vent panel and reassemble the nut. Unscrew the top part of the locking nut until you
can easily insert the drain hose through the opening.
3. Make sure to insert the drain hose at least 8 inches (20 cm).
4. Turn the top of the locking nut to tighten it and secure the drain hose in place.
5. To detach the drain hose from the product, push the outer ring of the pump drain port in and pull
the connector out.
1. Remove the drain plug when using the Dry (dehumidifying) mode.
2. Install a 1/2" (12.7 mm) inside diameter garden hose (not provided) into the continuous drain port
and place the open end of the hose over a floor drain or bucket.
NOTE
• Inserting the drain hose in the unit will automatically activate the drain function.
NOTE
• Install the garden hose when you need dehumidification in high humidity.
• This product has a self-evaporative system. The condensing water will be recycled to cool the condenser.
This not only improves cooling efficiency, but also saves energy for you.
More than 8″
INSTALLATION
17
ENGLISH
