PREPARE TO INSTALL THE RANGE
INSTALLATION DRAWINGS
SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR
NOTE

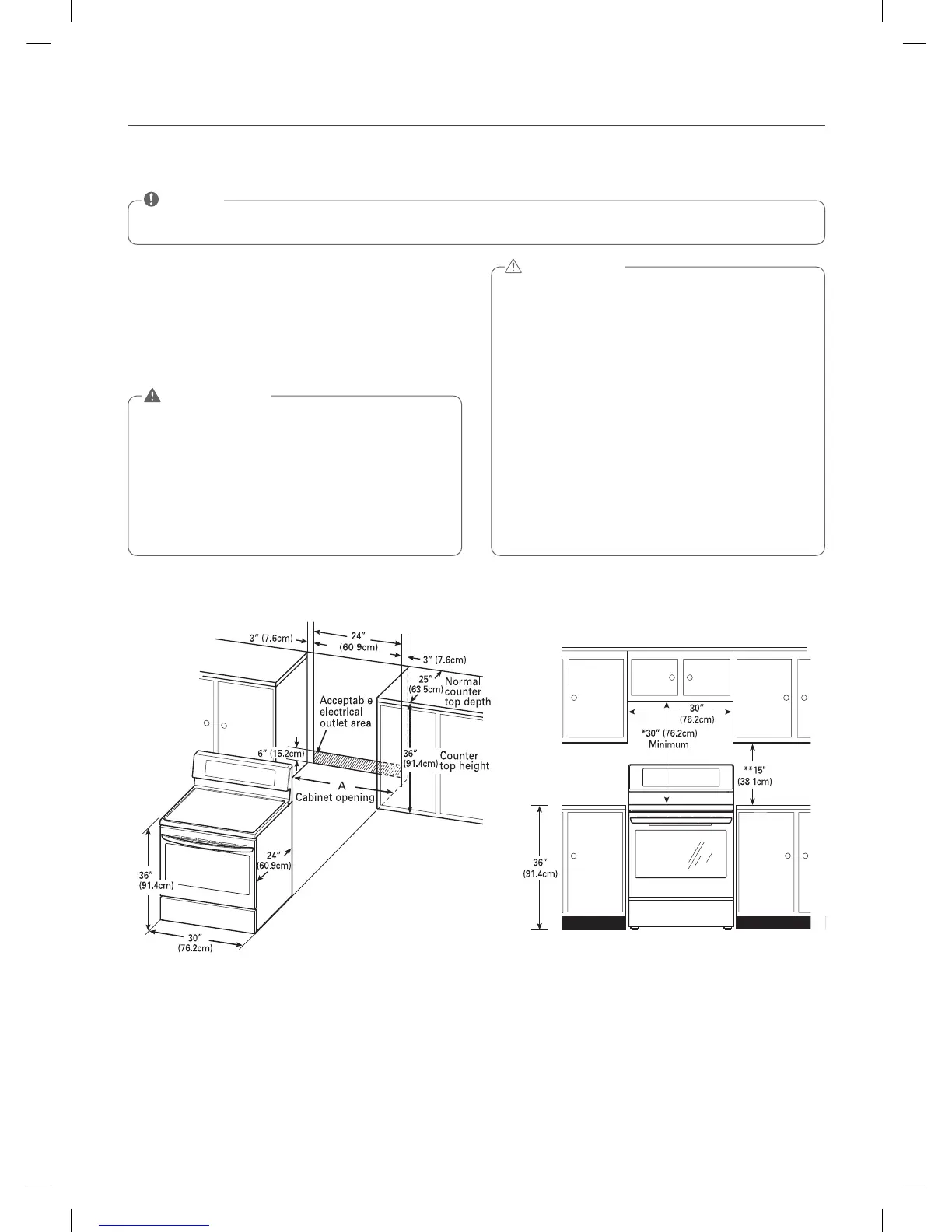

CLEARANCES AND DIMENSIONS (Figure 1)
To install range refer to the following Figure 1.
For installation in CANADA, a Free-standing range
is not to be installed closer than 15/32 (12mm) from
any adjacent surface.
• Cabinet storage space located above the
surface units should be avoided.
• Install a range hood that projects horizontally a
minimum of 5 inches beyond the bottom of the
cabinets if cabinet storage is to be provided.
- The risk of burns or fire by reaching over the
heated surface elements can be reduced.
• Make sure that the wall covering, countertop
and cabinets around the range can with-stand
the heat (up to 194°F) generated by the range.
-
Discoloration, delamination or melting may occur.
- This range has been designed to comply with
the maximum allowable wood cabinet tem-
peratures of 194°F.
CAUTION
FIGURE 1 FIGURE 2
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA
• You should use two or more people to move and
install range. (Excessive Weight Hazard)
- Failure to do so can result in back or other injury.
• You never pull or push any handles of upper &
lower door to move and install range.
- Failure to do so can result in serious damage to
the door of the range.
WARNING
For model : LRE Series
To Next Page
