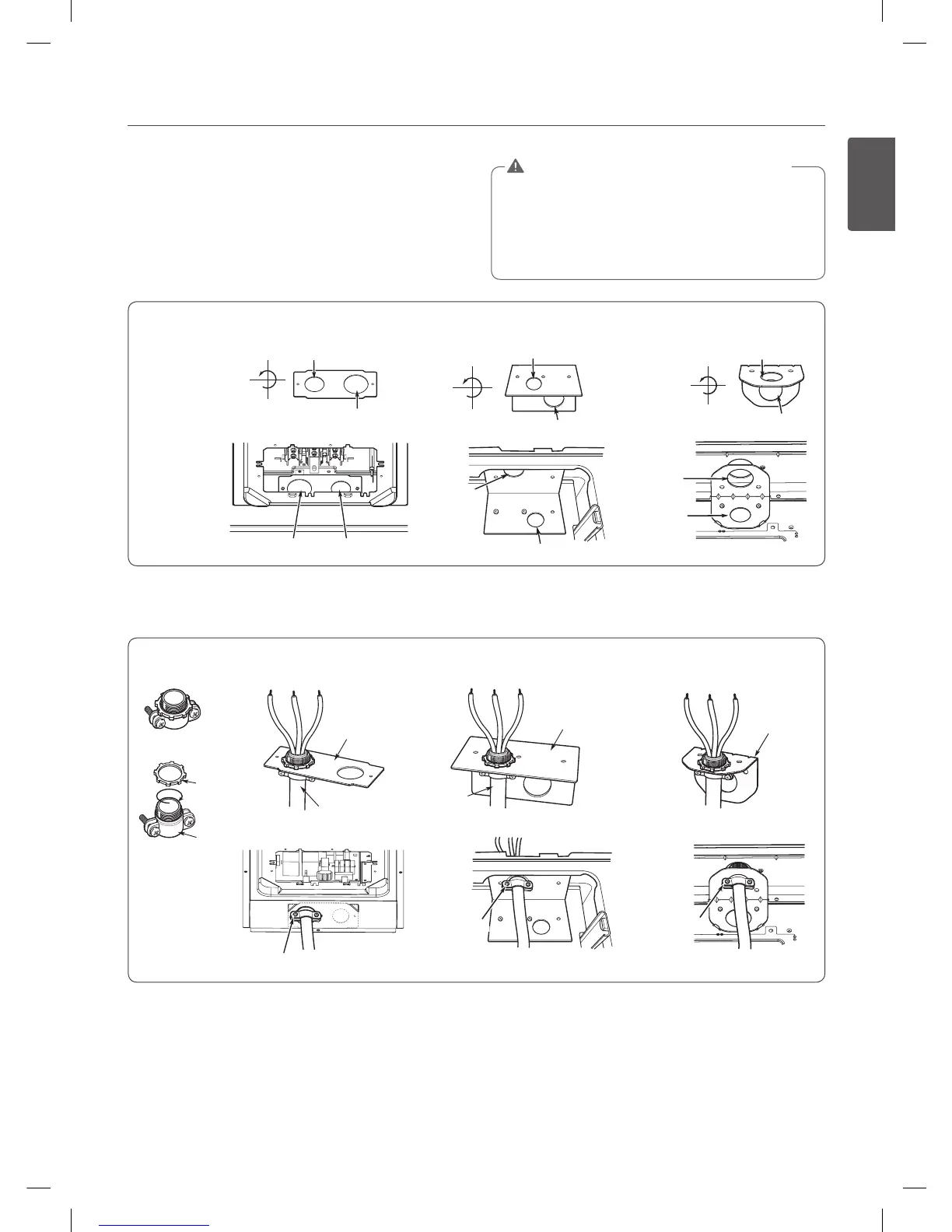

ELECTRICAL CONNECTIONS
The Cord/Conduit connection plate is used for the
installation of power cord or conduit. For power cord,
install it with the connection plate as INSTALLED. For
conduit, remove the connection plate and use the conduit
hole (1
1
/
8
”) instead of power cord hole (1
3
/
8
” ). (Refer to
Figure 5 and 6.)
• You never remove the protection cover
covering the rear of lower oven.
- Failure to do so can result in serious damage to
power cord. The damage causes serious burns
and electric shock.
WARNING (LDE series only)
For model : LRE Series For model : LSE Series For model : LDE Series
For model : LRE Series For model : LSE Series For model : LDE Series
1
3
/
8
"(3.5cm)
1
3
/
8
"(Cord) 1
1
/
8
"(Conduit)
1
1
/
8
"(2.8cm)
Remove the Conduit connection plate
FIGURE 5
FIGURE 6
Reinstall the Cord/Conduit connection plate
Strain relief
Conduit
Ring
Cord Strain relief
Conduit
Body
Cord/conduit
connection
plate
Cord Strain
relief
Cord/Conduit
connection
plate
1
3
/
8
"(3.5cm)
1
3
/
8
"
(Cord)
1
1
/
8
"
(Conduit)
1
1
/
8
"(2.8cm)
1
3
/
8
"(3.5cm)
1
3
/
8
"
(Cord)
1
1
/
8
" (Conduit)
1
1
/
8
"(2.8cm)
Cord Strain
relief
Conduit
Cord/Conduit
connection
plate
