LG LRE6383ST Installation Manual

7
ENGLISH
PREPARE TO INSTALL THE RANGE

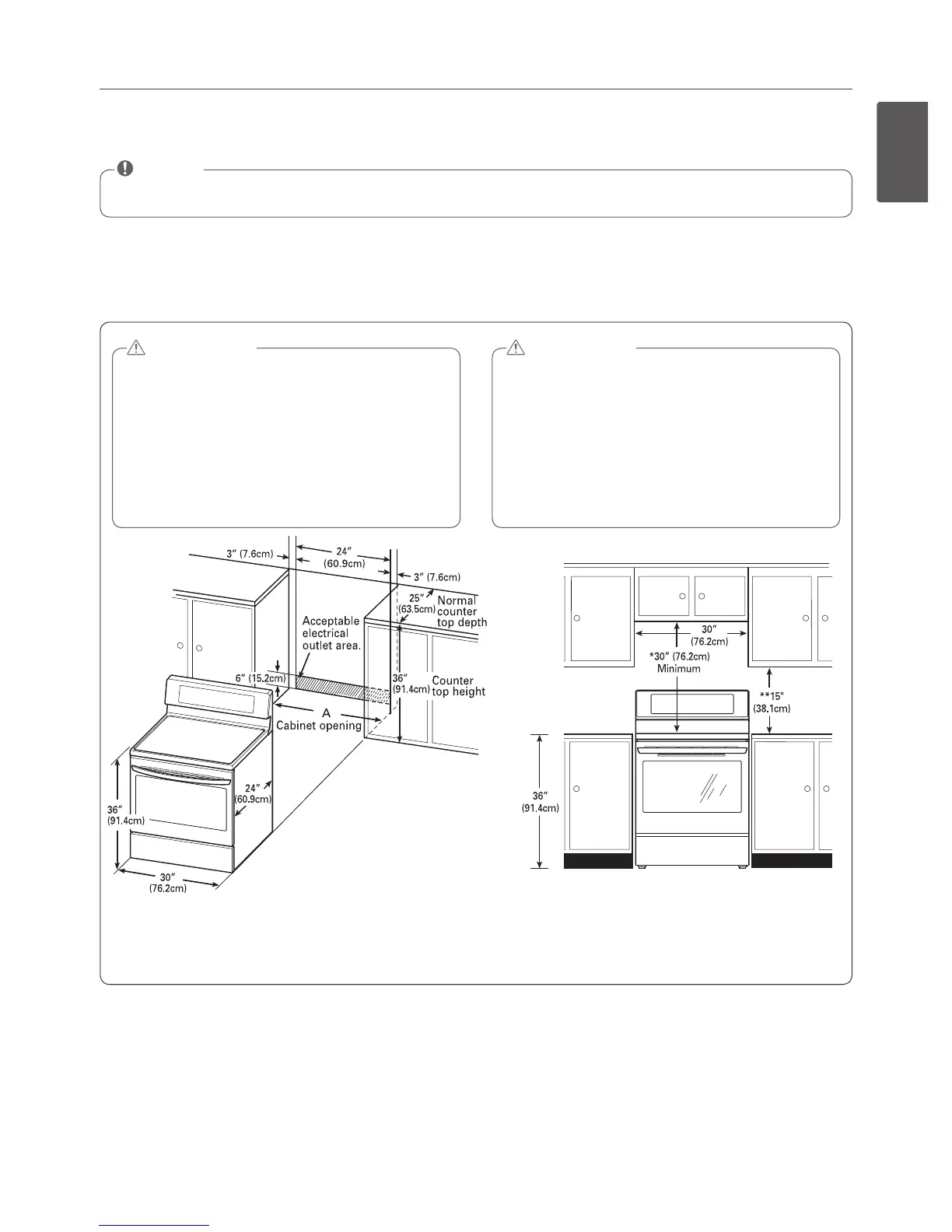

INSTALLATION DRAWINGS (LRE Series only)
SAVE FOR THE USE OF THE LOCAL ELECTRICAL INSPECTOR
NOTE

To install range refer to the following Figure 1.







- Discoloration, delamination or melting may
occur.
- This range has been designed to comply
with the maximum allowable wood cabinet
temperatures of 
CAUTION






- The risk of burns or re by reaching over the
heated surface elements can be reduced.
CAUTION

* 30”(76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood
or metal cabinet; or 24”(60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less than
1
/4”(6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015”(0.381 mm) stainless
steel, 0.024”(0.610 mm) aluminum or 0.020”(0.508 mm) copper.
** 15”(38.1 cm) minimum between countertop and adjacent cabinet bottom.
 
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA

LG LRE6383ST Specifications

General

Clock type	Electronic
Control type	Sensor
Product type	Freestanding cooker
Product color	Black, Stainless steel
Integrated clock	Yes
Number of ovens	1
Total oven power	- W
Oven power source	Electric
Total oven(s) interior capacity	- L
Hob type	-
Cooking zone 1 type	Small
Cooking zone 2 type	Medium
Cooking zone 3 type	Large
Cooking zone 4 type	Extra large
Cooking zone 1 power	1200 W
Cooking zone 3 power	2500 W
Cooking zone 4 power	3200 W
Number of cooking zones	5 zone(s)
Timer type	Digital
Package depth	776 mm
Package width	855 mm
Package height	1290 mm
Package weight	82100 g

Weight and Dimensions

Depth	718 mm
Width	759 mm
Height	1195 mm
Weight	71215 g
