2. Replacing Refrigerator Door
uu
Right Door

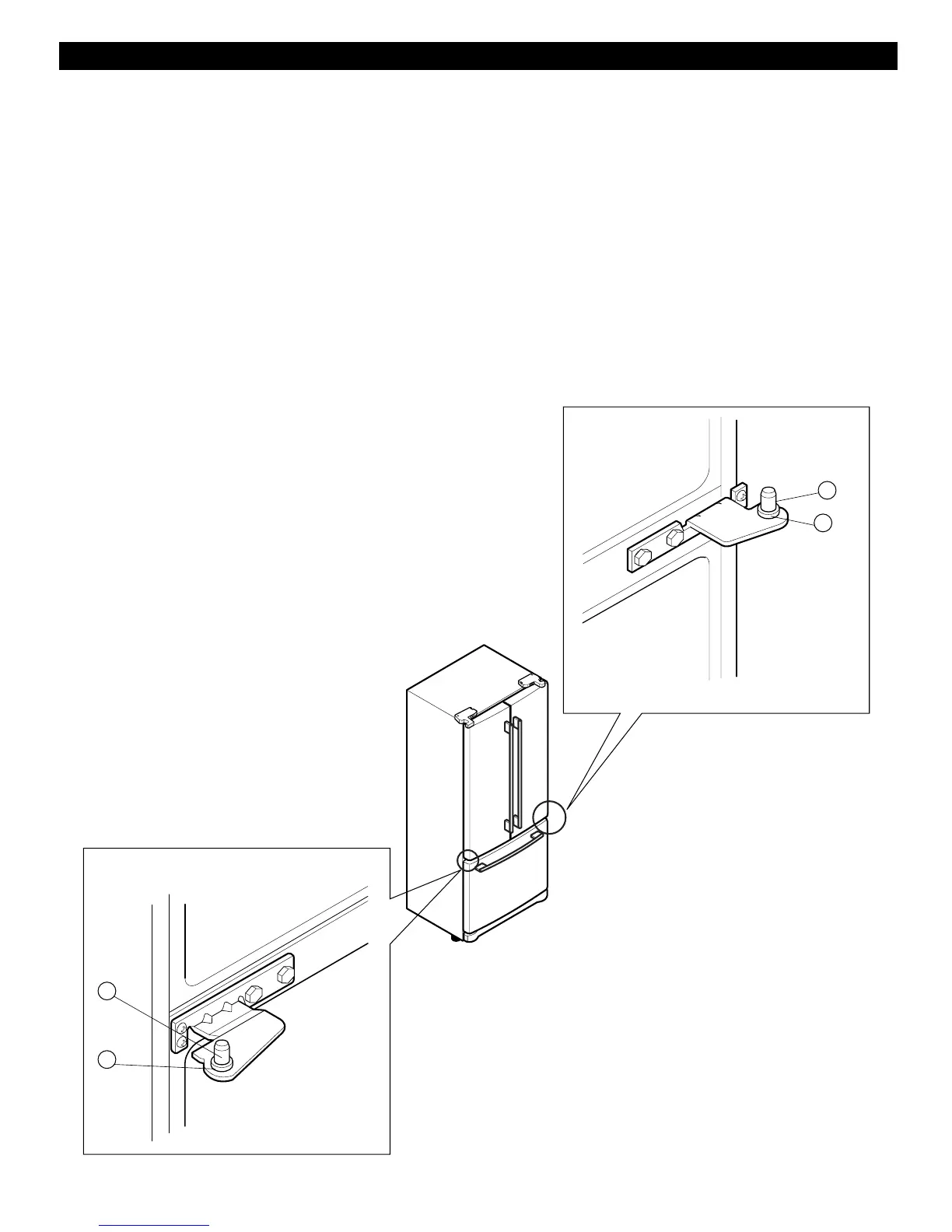

• Lower the door onto the middle hinge pin(8). Make sure the door is aligned with the cabinet.
• Replace the top hinge(7) by rotating the lever hinge (6) to counter clockwise to tighten it.
Make sure the gasket on the door is flush against the cabinet and is not folded. Support the door on the handle side while
tightening. And make sure the door is straight and the gap between the doors is even across the front.
• Install the earth screw (5) and connect the wire harness (4).
• Connect the door switch wire (2) and hook up the top hinge cover (3).
• Tighten the screw (1).
uu
Left Door
• Replace the left door followed by the same way described above.
• When replacing the top hinge(7), rotate the lever hinge (6) to clockwise at this time.
w CAUTION: Be careful of missing the washer[part (9)].
Because it can be easily taken off.
REFRIGERATOR INSTALLATION
