HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.

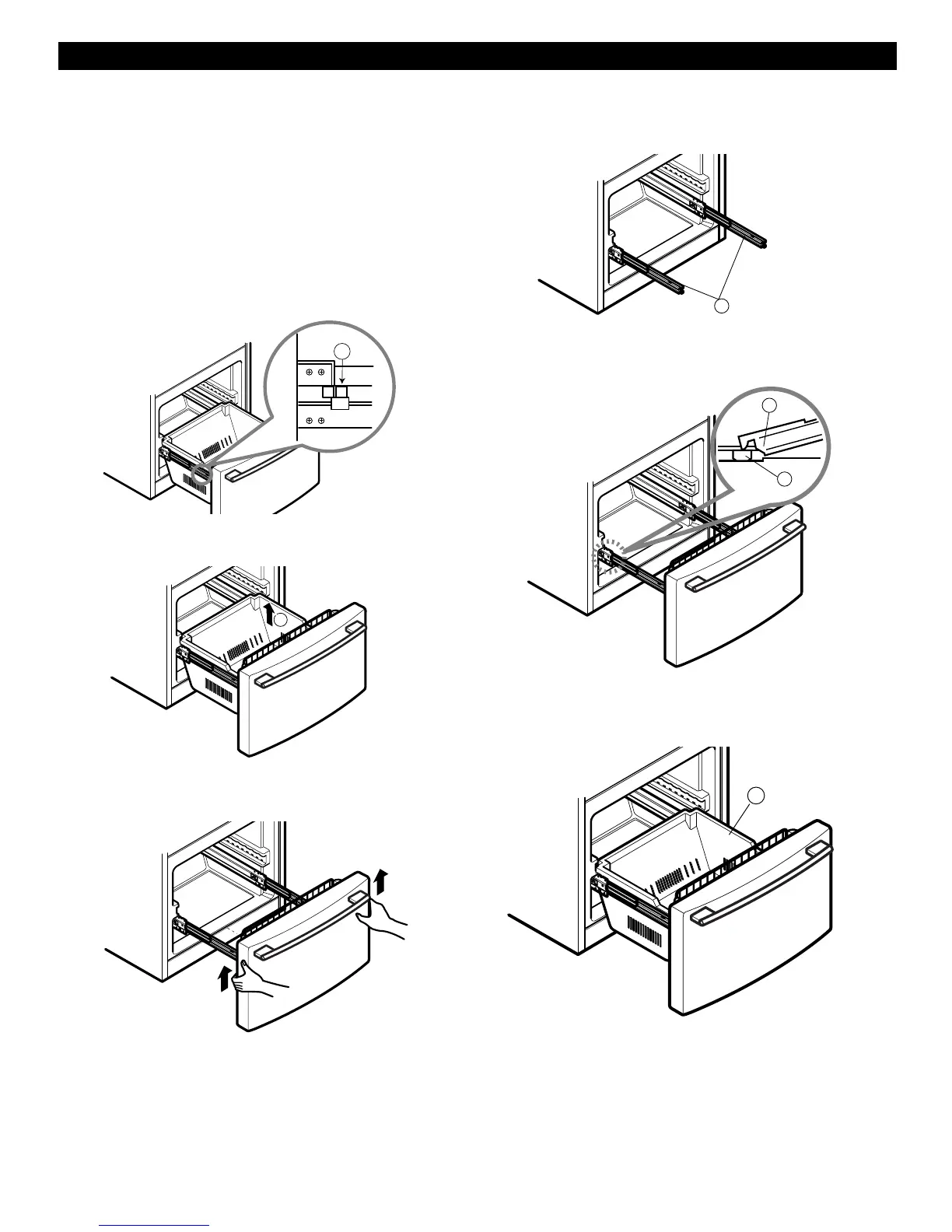

1. Removing Pullout Drawer
• Pull the drawer open to full extension. Remove the
screw (1) from each side of rail system.
• Remove the lower basket (2) by lifting basket from rail
system.
• Lift the top of door to unhook door supports from rail
system. Lift door up to remove.
w CAUTION: When you remove the drawer, do not hold
handle. If it’s taken off, it could cause personal injury.
w CAUTION: When laying down the drawer, be careful
not to damage the floor and hurt your feet by the sharp
edges on hinge side.
2. Installing Pullout Drawer
• Pull both rails (1) out to full extension.
• Hook the door supports (2) into the rail tabs (3), as
illustrated, and lower the door into final position.
• With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly until it doesn’t
move forward.
w WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
w WARNING: DO NOT step or sit down on Freezer Door.
REFRIGERATOR INSTALLATION
13
