52
MAINTENANCE

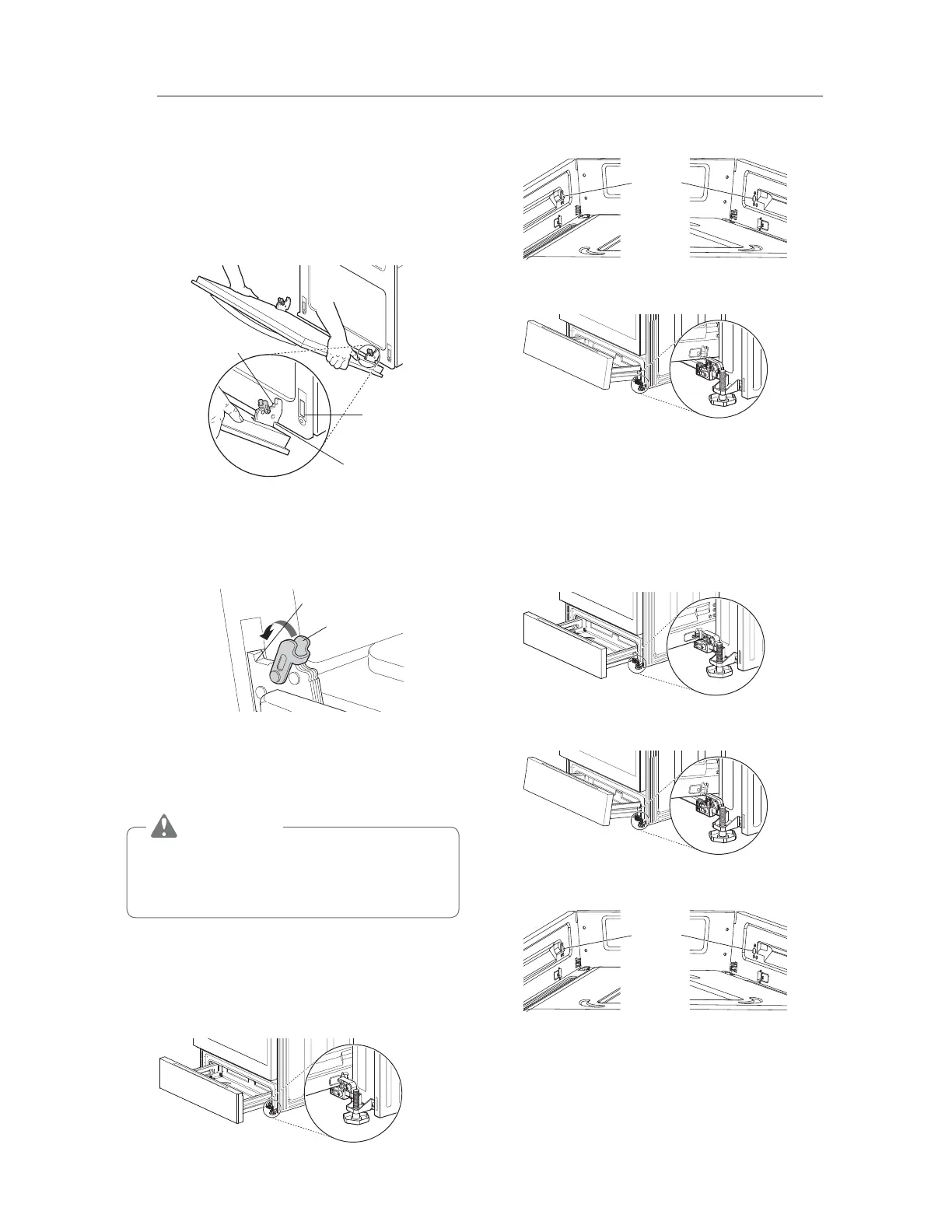

Replacing the Door
1
Firmly grasp both sides of the door at the top.
2
With the door at the same angle as the removal
position, seat the indentation of the hinge arms
into the bottom edge of the hinge slots. The
notch in the hinge arms must be fully seated into
the bottom edge of the slots.
Hinge arm
Indentation
Bottom
edge of slot
3
Open the door fully. If the door will not open fully,
the indentation is not seated correctly in the
bottom edge of the slots.
4
Lock the hinge locks, rotating them back toward
the slots in the oven frame until they lock.
Hinge arm
Hinge lock
5
Close the oven door.
Removing the Drawer
CAUTION
Disconnect the electrical power to the range at
the main fuse or circuit breaker panel. Failure to
do so can result in severe personal injury, death,
or electric shock.
Most cleaning can be done with the drawer in place;
however, the drawer may be removed if further
cleaning is needed. Use warm water to thoroughly
clean.
1
Pull the drawer out until it stops.
(2)
Model LRGL5825* Unscrew the 2 screws on
the back of the drawer.
2 screws
3
Lift the front of the drawer until the stops clear
the guides.
4
Remove the drawer.
Replacing the Drawer
1
Place the drawer rails on the guides.
2
Push the drawer back until it stops.
3
Lift the front of the drawer and push back until
the stops clear the guides.
(4)
Model LRGL5825* Screw the 2 screws on the
back of the drawer.
2 screws
5
Lower the front of the drawer and push back
until it closes.
