LG LRMXC2206 Series Service Manual

-56-
Symptom Check Point
1. Poor cooling in Fresh
food section
1. Check the sensor resistance
2. Check the air flow
3. Check the air Temperature
4. Check the R-Damper motor voltage

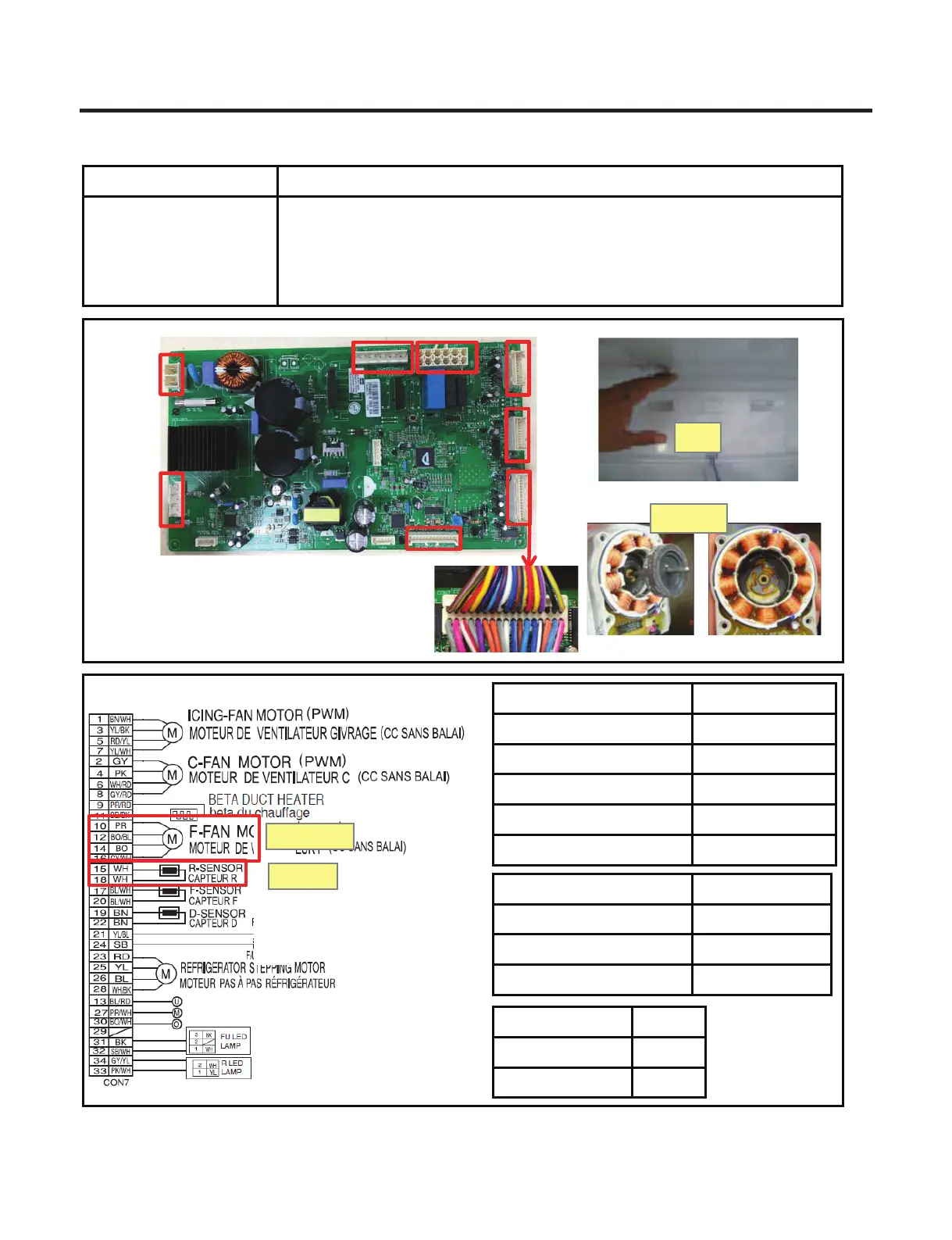

8-16. Poor cooling in Fresh food section
CON7 15
th
pin ~ 18
th
pin Resistance [
23ºF / -5ºC 38k
32ºF / 0ºC 30k
41ºF / 5ºC 24k
50ºF / 10ºC 19.5k
59ºF / 15ºC 16k
Duct Status
Air Flow Windy
Air Temperature Cold
Duct
Fan Motor
TEST MODE 1 Voltage [V]
CON7 12
th
pin ~ 14
th
pin 12V
CON7 16
th
pin ~ 14
th
pin 0V<Voltage<5V
CON7 10
th
pin ~ 14
th
pin 0V<Voltage<5V
CON6
CON1
CON201
CON5
CON7
CON2 CON3
R-Sensor
F-Fan motor
