LG :LS-C076_Series - Outdoor Unit

Maintenance and Service
Owner’s Manual 21
ENGLISH
(Side)
(Rear)
Air intake
vents
Air outlet
vents
(Side)
(Rear)
Drain Hose
Air intake vents
Air outlet vents
Piping
(Side)
(Rear)
Piping
Drain Hose
Air intake
vents
Air outlet
vents
Piping
Drain Hose
Triple Deodorizing Filter
Air filter
3
2
The heat exchanger coils and panel vents of the outdoor
unit should be checked regularly. If clogged with dirt or
soot, the heat exchanger and panel
vents may be professionally steam cleaned.
Dirty or clogged coils will reduce the
operating efficiency of the system and cause higher
operating costs.
NOTICE

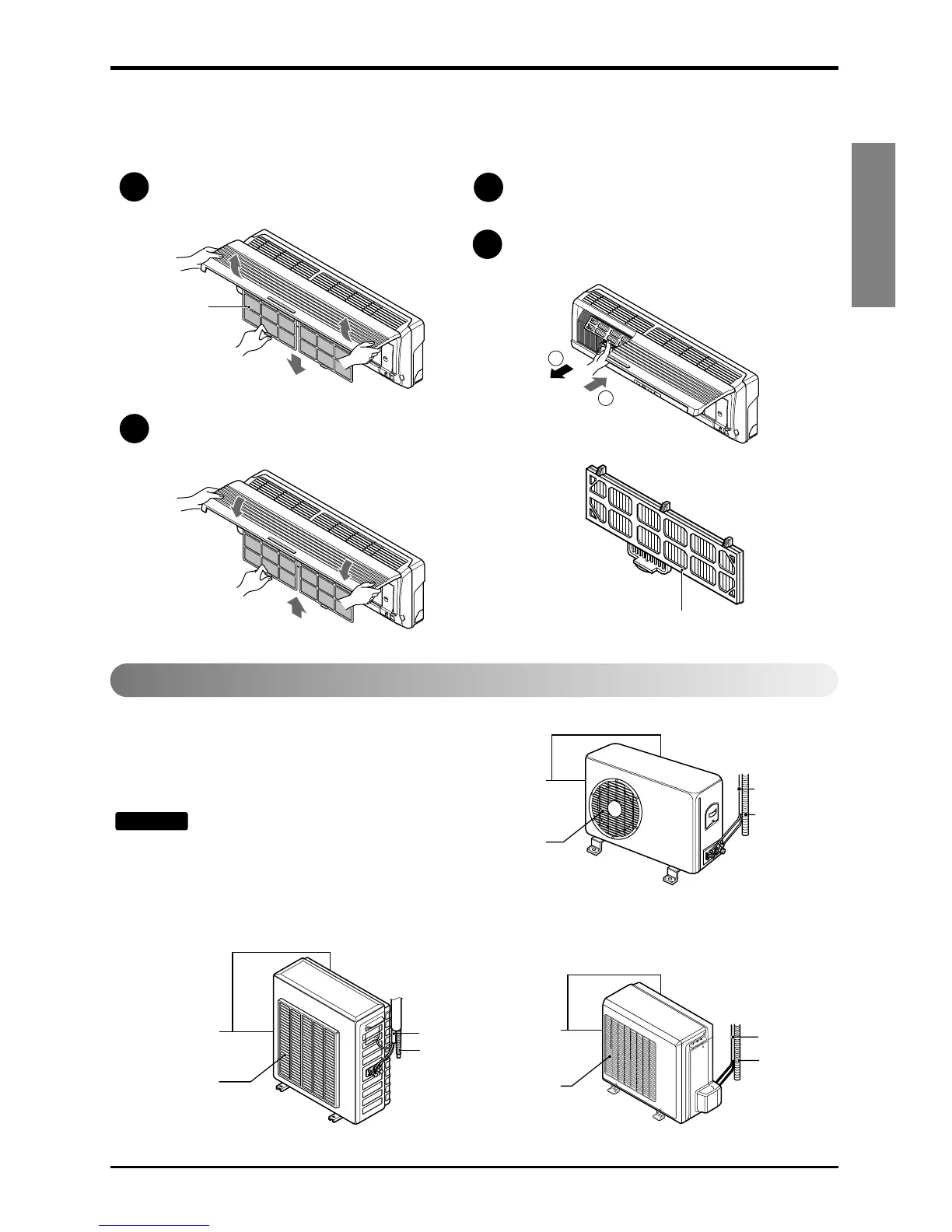

Replacement of Purifying Filter(Optional)
• Recomended use period : About 2 years
Open front panel and remove air
filters.
Reinsert air filters and close front
panel.
Remove Triple deodorizing Filters.
Insert new Triple deodorizing Filters.
1
2
3
4
Outdoor Unit
